Summary of Contents for Wyrestorm NHD-IP-CTL

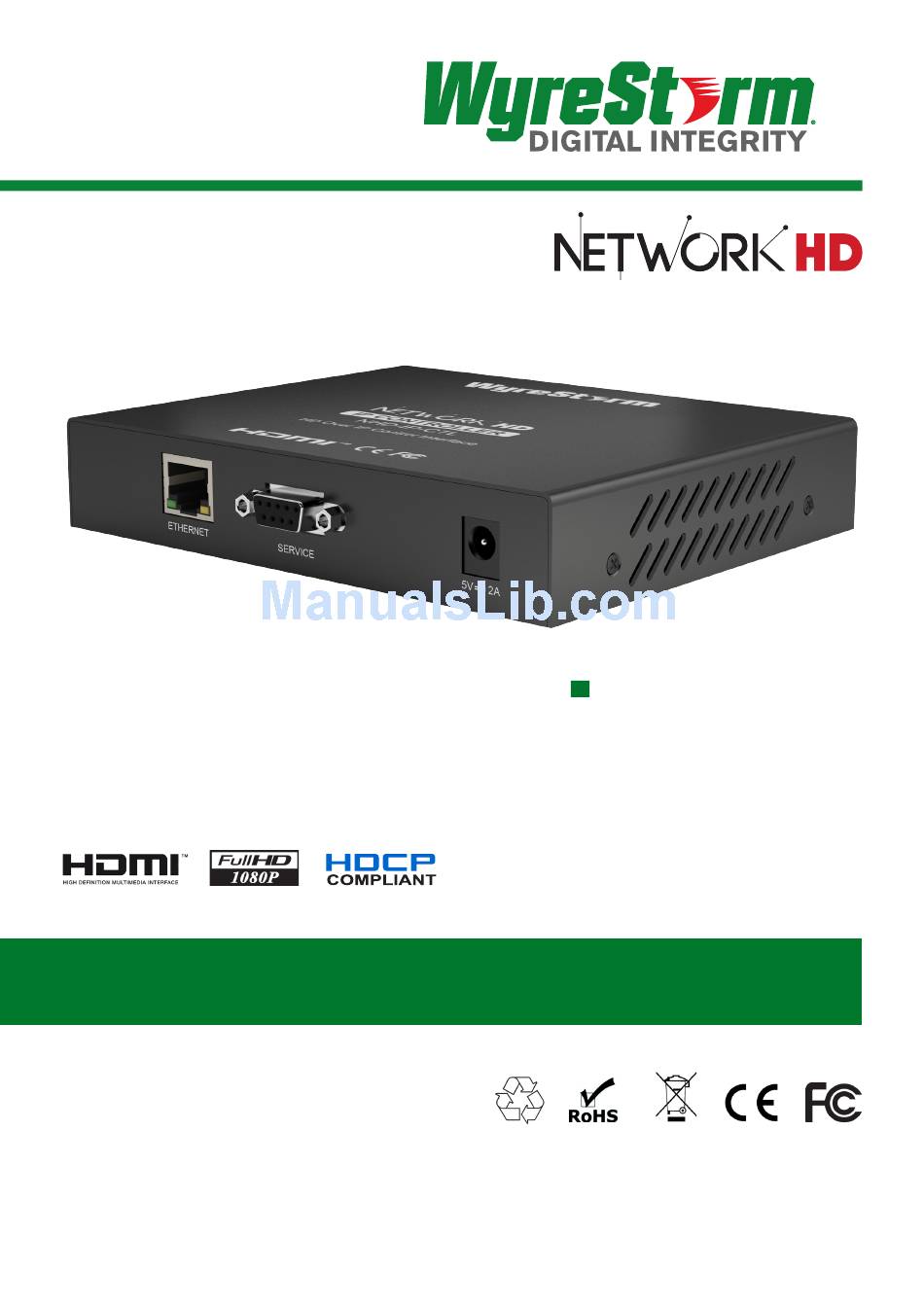

- Page 1 WyreStorm NetworkHD HD Over ® IP Control Interface Part Number NHD-IP-CTL WyreStorm HD over IP Solutions Instruction Manual Thank you for choosing this WyreStorm product. Please read these instructions carefully before installing to avoid complications later. 0215...
-
Page 2: Table Of Contents
Cat5e/6/7 cable. or restricted in any way, especially at plug connections. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343 • Receivers capable of 1080p transmissions up to 40m (131ft) Only use attachments/accessories specified by the under ideal conditions* manufacturer. -
Page 3: Package Contents
Power - 5V / 2A DC power supply unit Telnet Third Party control system - including WyreStorm Enado System Industry Standard Cat5e/6 Cables Requirements Supported TX/RX NHD-IP-TX & NHD-IP-RX Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 4: Connection
Ensure connection of the correct voltage. Failure to do so may result in damage to you device. NHD-IP-CTL cannot be powered by POE, where as RX & TX devices can be powered by suitable POE switches. Please ensure your switch can supply enough power for the number of devices you require. -
Page 5: Accessing The Nhd-Ip-Ctl Web Interface
Firefox, Opera, Safari, Internet Explorer 11 or Chrome. Attention The default IP address of the NHD-IP-CTL is 192.168.11.243. To connect you must have a network configured that allows this subnet or must set your PC to a 192.168.11.xxx address to connect. The IP address of the IP Control Box can be changed through the System Settings page. -
Page 6: Basic Operation
RX are disconnected. A red bar denotes TX/RX connection is being processed A clear bar signifies corresponding TX and RX are not connected. Click to connect. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 7: Tx/Rx Settings
Alias’ can be used to make identification of system components easier e.g. TV12 or Bluray1. They can also be used instead of device identifiers in API commands. GUI Element Description Alias Rename TX/RX alias for easier identification and use from API commands Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 8: Commands
IP Address IP address for TX and RX communication Subnet Mask Subnet mask for TX and RX communication Default Gateway Default gateway for TX and RX communication Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 9: Web Password
Debug files can only be used with the guidance of WyreStorm support. Additional Information Further information about NetworkHD including system configuration guides and Enado templates can be found at wyrestorm.com Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 10: Networkhd Telnet Control Protocol
The Telnet protocol can be used to send configuration settings, matrix switching and video wall commands to the NetworkHD system. Commands can only be issued to the NHD-IP-CTL by IP using port 23. The default IP address of the NHD-IP-CTL is 192.168.11.243 – in default configuration commands should be sent to this IP address. Matrix Switching Control Command matrix set TX1 RX1 RX2, TX2 RX3 RX4,... - Page 11 Change the selected input or inputs of a video wall, replacing a tx alias with 0 means no change. E.g.: “vw2 change wall1 Source1 0 Source3” Changes Wall1 inputs for row1 & row3 to rx1 & rx3 Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
- Page 12 {+ | -} tx/rx tx/rx {- | +} tx/rx tx/rx ... Note Notify the third-party controller if any TX/RX is dropped out or added. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
-
Page 13: Troubleshooting
– either those specified by the manufacturer or parts devices are not taking please reboot them after making possessing the same characteristics as the original parts. the settings. Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... -
Page 14: Mail In Service
The decision to repair or replace will be made by the warrantor. The purchaser must mail-in the product during Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343... - Page 15 Installation Reference Log IP ADDRESS ALIAS MAC ADDRESS Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343...
-
Page 16: Wyrestorm.com
WyreStorm Technical Support US: +86 6677 0053 UK:- +44 (0) 1793 238 338 Email: support@wyrestorm.com WyreStorm Technologies reserve the right to change physical appearance or technical specification of this product at any time. Visit wyrestorm.com for the latest information on products..
