Wyrestorm TX-70-POH Quick Start Manual

4K HDMI over HDBaseT Transmitter
with PoH | Bi-directional IR & RS-232 (70m/230ft)
TX-70-POH
PoH-Compatible HDBaseT transmitter to send HD Video & Audio 70m/230ft over HDBaseT.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box

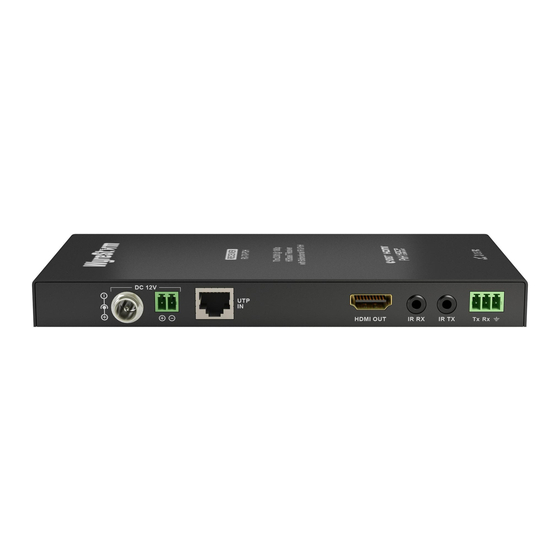

1x TX-70-POH Transmitter
1x 2-pin Screw Down Phoenix Connector
1x 3-pin Screw Down Phoenix Connector
1x IR Emitter
1x Broadband IR Receiver (30KHz~50KHz)
2x Mounting Brackets
1x Quickstart Guide (this document)

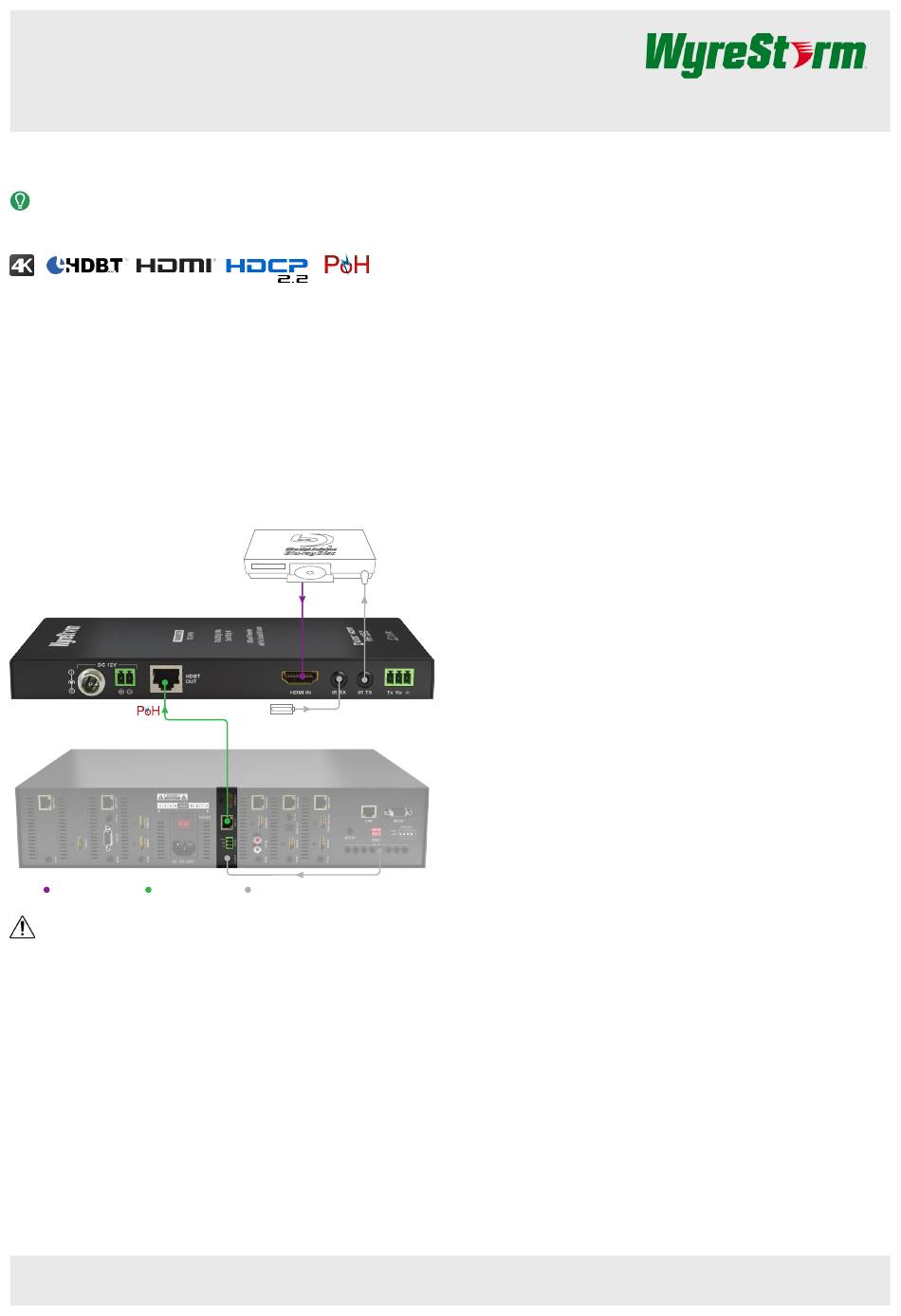

Basic Wiring Diagram
TX-70-POH
MX-0808-PP-POH-CUSTOM with TX-POH-100
HDMI/Digital Video HDBaseT/Ethernet
Key
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Copyright © 2015 WyreStorm Technologies |
TX-70-POH Quickstart Guide | 151124
UHD Source
IR TX to IR Loop
IR
(Required for remote source control)
wyrestorm.com
Recommended Products
To take full advantage of the features of this receiver, WyreStorm
recommends the following products be used within the system.
• HDBaseT Matrix Switchers with HDBT In
The TX-70-POH was designed to be work with the HDBT In found on
some WyreStorm matrixes to allow remote devices to be used as a
source.
• MX-0808/1616-PP-POH-CUSTOM with TX-POH-100
• SW-1001-HDBT
• Cable for Connecting to IR Connecting Blocks/Control Systems
When connecting the IR RX to an IR connecting block or control
system, use the WyreStorm CAB-IR-LINK
+5V DC supplied by the IR Ext/IR RX ports.
Before Beginning
• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the
list.
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the matrix/
receiver location. See
distance restrictions. Terminate the cable per the
Wiring section.
2. (Optional) If using 3rd party IR emitters or connecting blocks, run
the wire and terminate per the
3. (Optional) If using 3rd party IR receivers, run the wire and terminate
per the IR RX (Receiver) Wiring
4. (Optional) If using RS-232 pass-through, run the wire and terminate
per the RS-232 Wiring
Transmitter Installation
1. Install the matrix/receiver following the documentation provided
with the product.
2. Connect an HDMI source to the HDMI In on the transmitter using
an HDMI cable from a high quality brand such as
Express.
3. Using the cable created in
female plug to the HDBT In jack.
4. (Optional) Using the included IR emitter or the cable created in
Pre Wire step 2, place an IR emitter onto a source device near the
device's IR sensor. Connect the 3.5mm (1/8in) Mono Plug to an IR
TX port.
5. (Optional) Using an included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR Ext port. If using a control system, use the
WyreStorm CAB-IR-LINK
6. (Optional) If using RS-232 pass-through, connect the 3-pin
connector to the RS-232 port on the receiver and the opposite end
to a port on the device being controlled.
