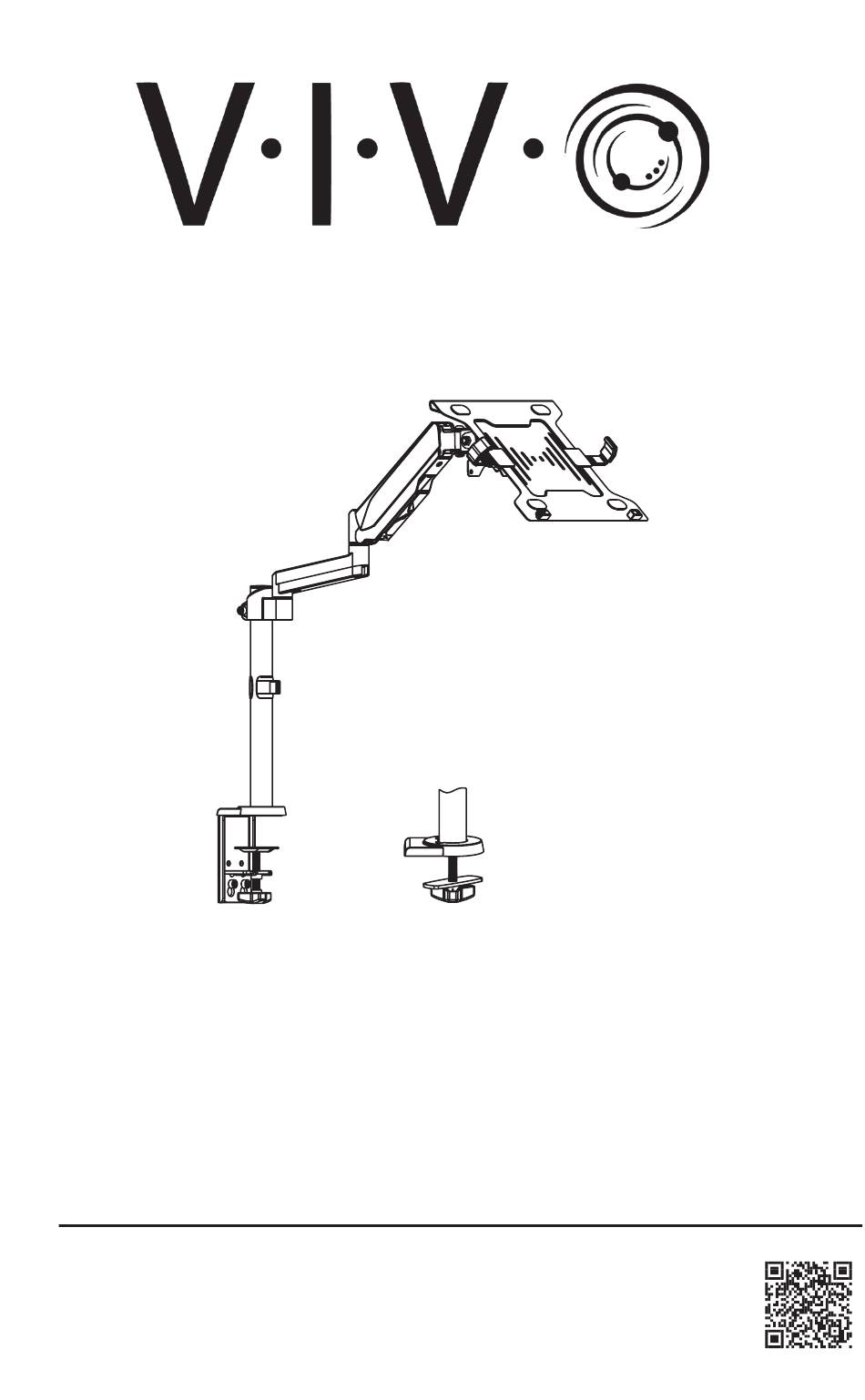

- Page 1 Pneumatic Arm Single Laptop Desk Mount SKU: STAND-V101L Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v101l...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Clamp Clamp Cover E (x1) F (x1) D (x1) Pole Cable Clip VESA Plate G (x1) H (x1) I (x1) Support Plate Grommet Base Laptop Tray J (x2) K (x2) Laptop Tray Tray Arm Clip... -
Page 4: Included Hardware & Tools
Included Hardware & Tools S-A (x1) S-B (x3) S-C (x4) M-A (x4) Thumbscrew Bolt Bolt M4x12 M-B (x4) M-C (x4) M-D (x4) M-E (x4) M4x16 M5x12 M5x16 D5 Washer M-F (x4) T-A (x1) T-B (x1) Spacer 4mm Allen 6mm Allen Wrench Wrench Tools Needed:... - Page 5 ASSEMBLY STEPS STEP 1 Option 1: Clamp Installation Attach Clamp (B1) to Clamp Bracket (B2) using 4mm Allen Wrench (T-A), according to the thickness of your desk. 0.4-1.8” 10-45mm 1.4-3.1” 35-80mm Secure Pole (E) to Clamp (B) Attach Clamp Cover (C) to using Bolts (S-B).
- Page 6 STEP 1 - Cont’d Option 2: Grommet Base Assembly Disassemble Clamp (B) using 6mm Allen Wrench (T-B) and a Phillips screwdriver. Attach Grommet Base (H) and Pole (E) to 3/8” (10mm) Grommet Hole in desktop using Clamp Bolt (B1) with Support Plate (I). ≤1.6”...
- Page 7 STEP 2 Slide Cable Clip (F) over top of Pole (E). Slide monitor Arm (A) over Pole (E) and tighten bolt using 6mm Allen Wrench (T-B). For Monitor Mounting Option, go to page 15.
- Page 8 STEP 3 Place Tray Arm Clips (K) through the front of the Laptop Tray (I), with Prongs facing the back of the Tray. One set of Prongs should be in the outer Slot and the other set overhanging the Tray. Front of Tray Front of Tray Back of Tray...
- Page 9 STEP 3 - Cont’d Press Arms (J) from the backside of Tray into Prongs on Clips (K), ensuring all four snap into place. Prongs...
- Page 10 STEP 4 Then secure VESA Plate (D) to Laptop Tray (I) using Bolts (S-C). Slide VESA Plate (D) with Laptop Tray (I) over Arm (A). Secure with Thumbscrew (S-A).
- Page 11 STEP 5 Adjusting Arm Length 1. Release Locks: Pull tabs on Locks on the underside of Arms (J) and extend the Arms out. 2. Secure Laptop: Place your laptop on the tray, then adjust Arms (J) to width of your laptop. Engage Locks to secure laptop.
- Page 12 STEP 6 Adjusting Laptop Height Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-B) 10-20 times place. to obtain proper support for your laptop. Use the guide below to adjust the tension according to the amount of counterbalance Insert...
- Page 13 STEP 7 Slide off the Cable Management Bracket (A1) from the Arm (A) and set it aside. Install cables in cable managment slots as shown. Then reinstall the Cable Management Bracket (A1) to secure cables.
-
Page 14: Tilt Adjustment
Tilt Adjustment Use 6mm Allen Wrench (T-B) to adjust the tilt of the Tray assembly. ±90° +35° -35° ±180° ±135°... - Page 15 Optional: Monitor Mounting **Complete Standard Assembly Steps 1 and 2 before proceeding** Attach the VESA Bracket (D) to the back of your monitor using the appropriate Screws (M-A~M-D), Washers (M-E), and Spacers (M-F). Flatback Monitor Curved Monitor Slide VESA plate (D) with monitor over bracket on Arm (A). Secure using Thumbscrew (S-A).
- Page 16 LAST UPDATED: 08/29/24 REV3 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
