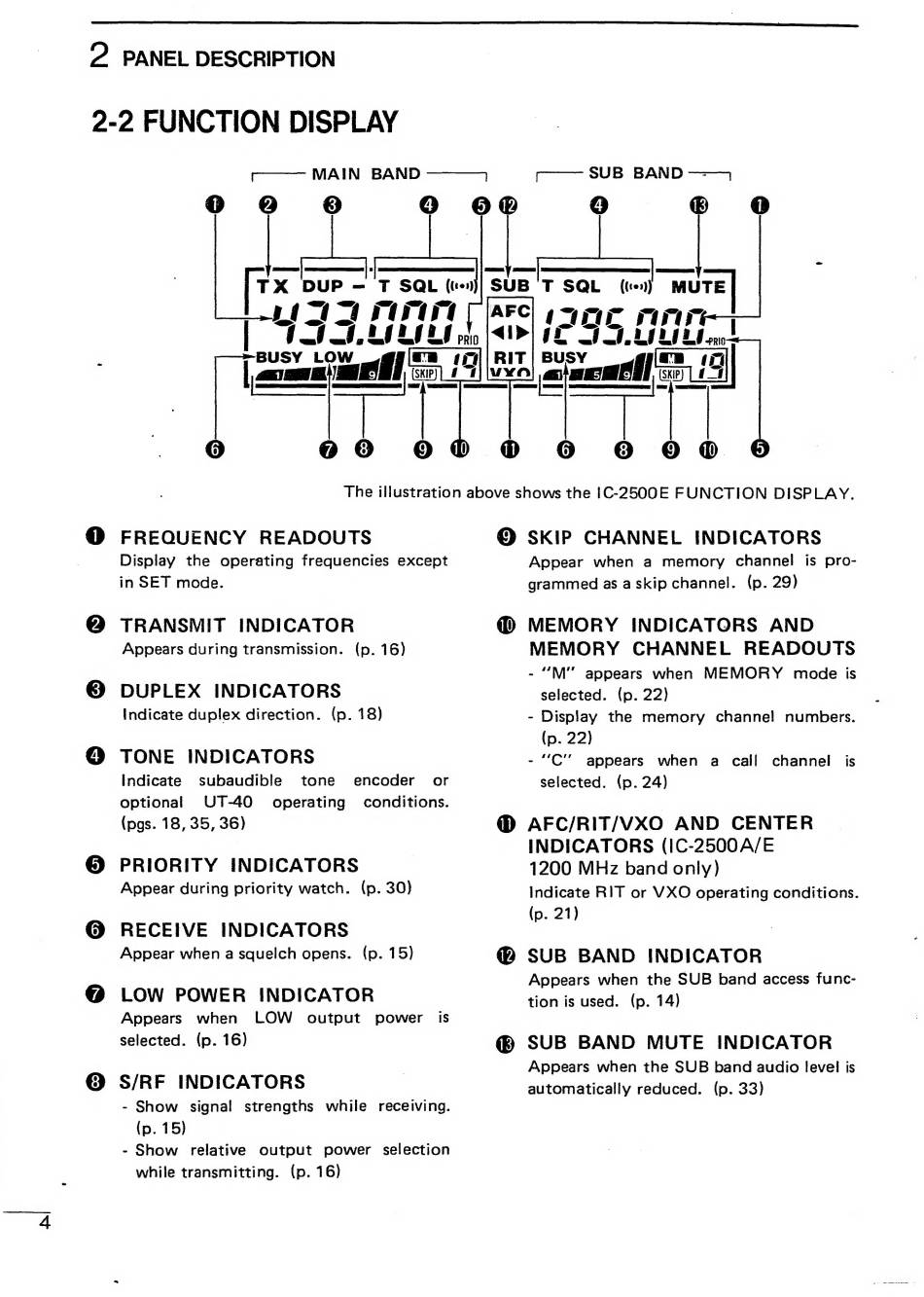

2 PANEL DESCRIPTION
2-2 FUNCTION DISPLAY
oo TÉ s BAND ---η
ij EN ΓΙ L (te) L T SQL (1-5) MUTE
af 4 7i Hii ο Ig ac AE
/ "um .. [14
ΑΕ
PRIO i 1.54 ΗΝ ΕΒ a μας He = moll
0 © ο ὢ
The illustration above shows the Ι0-2500Ε FUNCTION DISPLAY.
@ FREQUENCY READOUTS © SKIP CHANNEL INDICATORS
Display the operating frequencies except Appear when a memory channel is pro-
in SET mode. grammed as a skip channel. (p. 29)
@ TRANSMIT INDICATOR @ MEMORY INDICATORS AND
Appears during transmission. (p. 16) MEMORY CHANNEL READOUTS
- ^M" appears when MEMORY mode is
DUPLEX INDICATORS selected. (p. 22)
Indicate duplex direction. (p. 18) - Display the memory channel numbers.
(p. 22)
(4) TONE INDICATORS - "C" appears when a call channel is
Indicate subaudible tone encoder or selected. (p.24)
optional UT-40 operating conditions.
(pgs. 18, 35, 36) @ AFC/RIT/VXO AND CENTER
INDICATORS (IC-2500A/E
Q PRIORITY INDICATORS 1200 MHz band only)
Appear during priority watch. (p. 30) Indicate RIT or VXO operating conditions.
21
Q RECEIVE INDICATORS ο
Appear when a squelch opens. (p. 15) (D SUB BAND INDICATOR
Appears when the SUB band access func-
@ LOW POWER INDICATOR doni used {ον 14)
Appears when LOW output power is
selected. (p. 16) @® SUB BAND MUTE INDICATOR
. Appears when the SUB band audio level is
ὁ S/RF INDICATORS automatically reduced. (p. 33)
- Show signal strengths while receiving.
(p. 15)
- Show relative output power selection
while transmitting. (p. 16)
