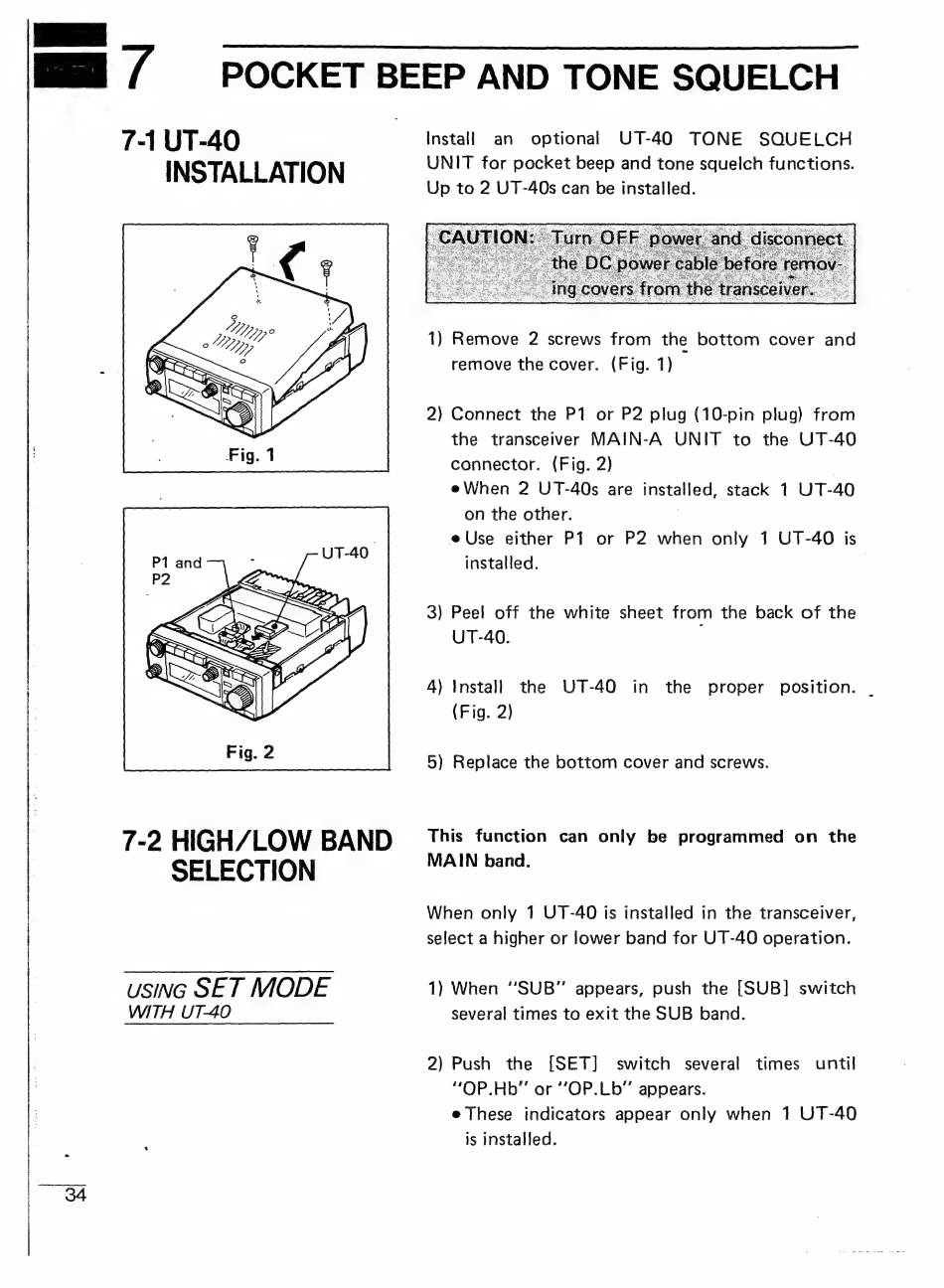

7-1 UT-40 Install an optional UT-40 TONE SQUELCH
Up to 2 UT-40s can be installed.
1) Remove 2 screws from the bottom cover and
remove the cover. (Fig. 1)
2) Connect the P1 or P2 plug (10-pin plug) from
the transceiver MAIN-A UNIT to the UT-40
connector. (Fig. 2)
e When 2 UT-40s are installed, stack 1 UT-40
on the other. |
eUse either P1 or Ρ2 when only 1 UT-40 is
installed.
—
ΕΕ / POCKET BEEP AND TONE SQUELCH
|
|
3) Peel off the white sheet from the back of the
UT-40.
4) Install the UT-40 in the proper position. .
(Fig. 2)
5) Replace the bottom cover and screws.
When only 1 UT-40 is installed in the transceiver,
select a higher or lower band for UT-40 operation.
f
|
|
2) Push the [SET] switch several times until
"OP.Hb" or "OP.Lb" appears.
e These indicators appear only when 1 UT-40
is installed.
