Icom IC-2400A Instruction Manual page 7

0 6 8 6 @
Selects VFO or MEMORY mode.
(pgs. 12, 22)
@ MHz SWITCH [MHz] (IC-2400A/E)
Selects a 1 MHz tuning step increment.
- (p. 12)
( CALL CHANNEL SWITCH [CALL]
(IC-2500A/E)
Selects a call channel. (p. 24)
0 SUB BAND CALL CHANNEL
SWITCH [CALL S] (IC-2400A/E) .
Selects a SUB band call channel. (p. 24)
@ MHz SWITCH [MHz] (IC-2500A/E)
Selects a 1 MHz tuning step increment.
(p. 12)
(P MEMORY WRITE SWITCH [MW]
- Writes a memory channel. (p. 23)
- Transfers the contents of a memory
channel to the VFO. (p. 23)
- Programs a call channel. (p. 25)
(Ὁ VFO/MEMORY SWITCH [VFO/MI —
o
ICOM iC-2500E
UHF/UHF
DUAL BAND FM TRANSCEIVER
SUB PRIO HI/LO
----
o @

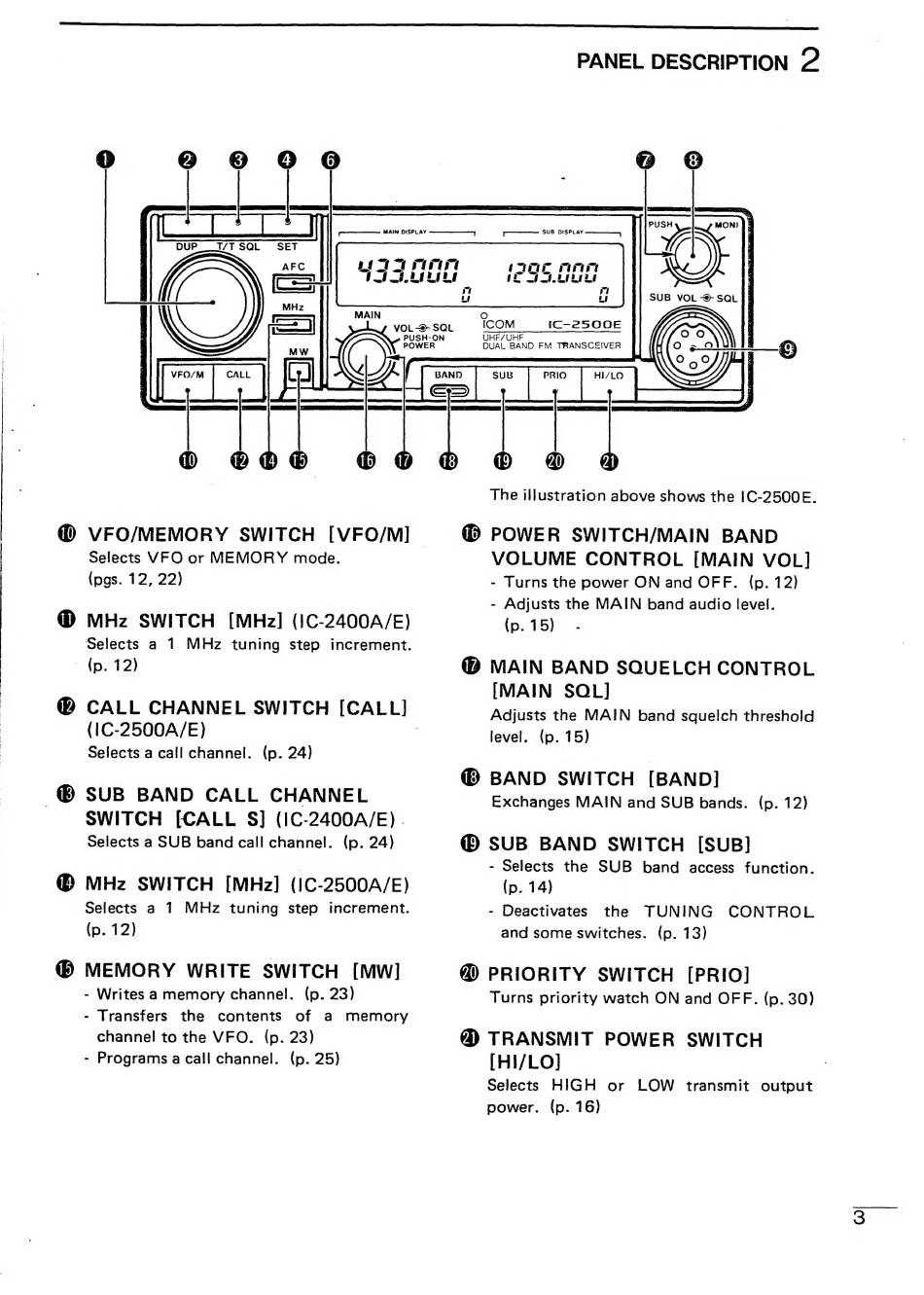

The illustration above shows the IC-2500E.
@ POWER SWITCH/MAIN BAND
VOLUME
CONTROL
[MAIN VOL]
- Turns the power ON and OFF. (p. 12)
- Adjusts the MAIN band audio level.
(p. 15)
(Ὁ MAIN BAND SQUELCH CONTROL
[MAIN SOL]
Adjusts the MAIN band squelch threshold
level. (p. 15)
@ BAND SWITCH [BAND]
Exchanges MAIN and SUB bands. (p. 12)
(D SUB BAND SWITCH [SUB]
- Selects the SUB band access function.
(p. 14)
- Deactivates the TUNING CONTROL
and some switches. (p. 13)
4) PRIORITY SWITCH [PRIO]
Turns priority watch ON and OFF. (p. 30)
@ TRANSMIT POWER SWITCH
[HI/LO]
Selects HIGH or LOW transmit output
power. (p. 16)
