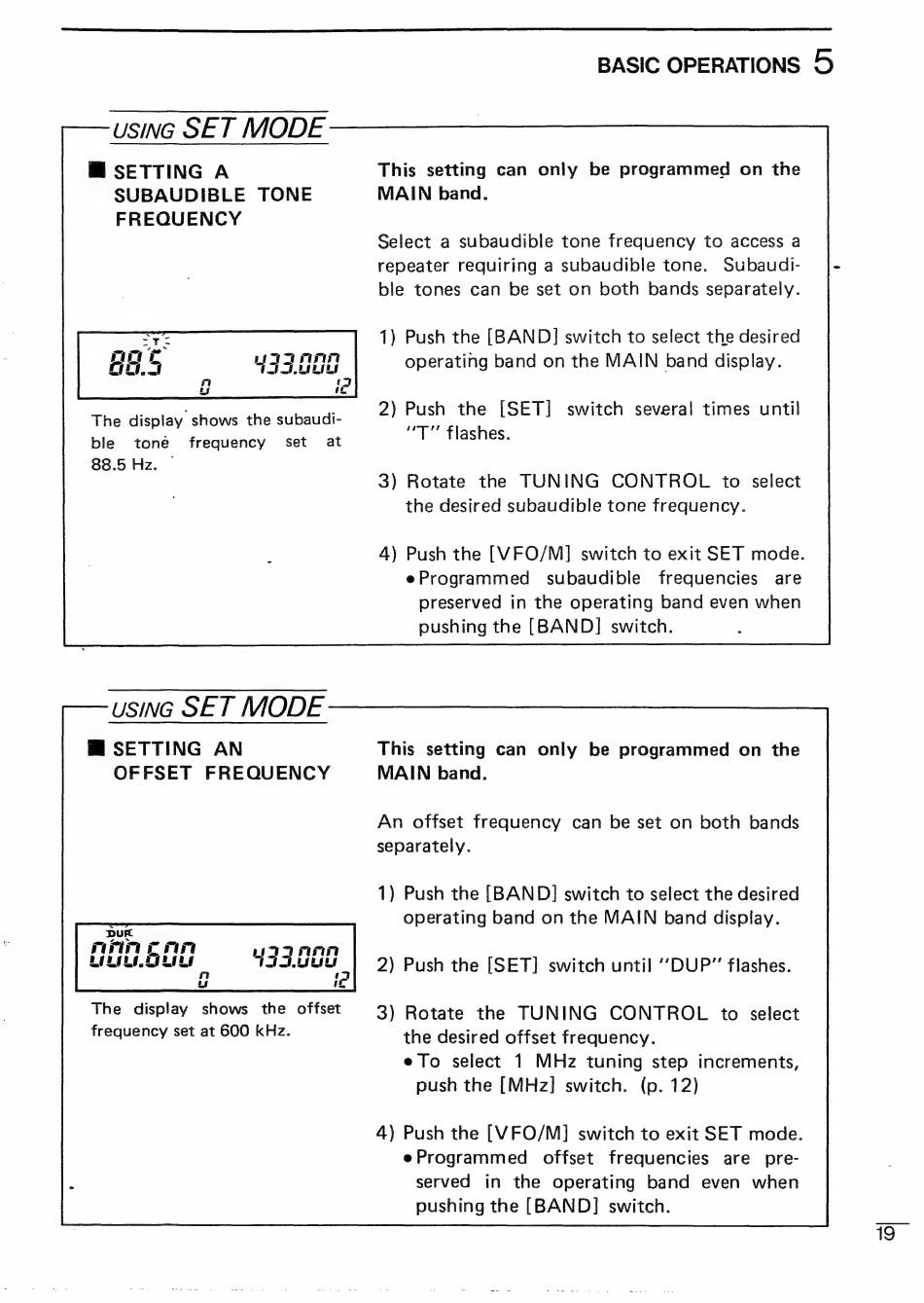

Icom IC-2400A Instruction Manual page 23

USING SET MODE
M SETTING A
SUBAUDIBLE TONE
FREQUENCY
The display shows the subaudi-
ble tone frequency set at
88.5 Hz. ~
USING SET MODE
B SETTING AN
OFFSET FREQUENCY
The display shows the offset
frequency set at 600 kHz.
BASIC OPERATIONS 5 ©
This setting can only be programmed on the
MAIN band.
Select a subaudible tone frequency to access a
repeater requiring a subaudible tone. Subaudi-
ble tones can be set on both bands separately.
1) Push the [BAND] switch to select the desired
operating band on the MAIN band display.
2) Push the [SET] switch several times until
"T" flashes.
3) Rotate the TUNING CONTROL to select
the desired subaudible tone frequency.
4) Push the [VFO/M] switch to exit SET mode.
eProgrammed subaudible frequencies are
preserved in the operating band even when
pushing the [BAND] switch.
This setting can only be programmed on the
MAIN band.
An offset frequency can be set on both bands
separately.
1) Push the [BAND] switch to select the desired
operating band on the MAIN band display.
2) Push the [SET] switch until "DUP" flashes.
3) Rotate the TUNING CONTROL to select
the desired offset frequency.
eTo select 1 MHz tuning step increments,
push the [MHz] switch. (p. 12)
4) Push the [VFO/M] switch to exit SET mode.
eProgrammed offset frequencies are pre-
served in the operating band even when
pushing the [BAND] switch.
