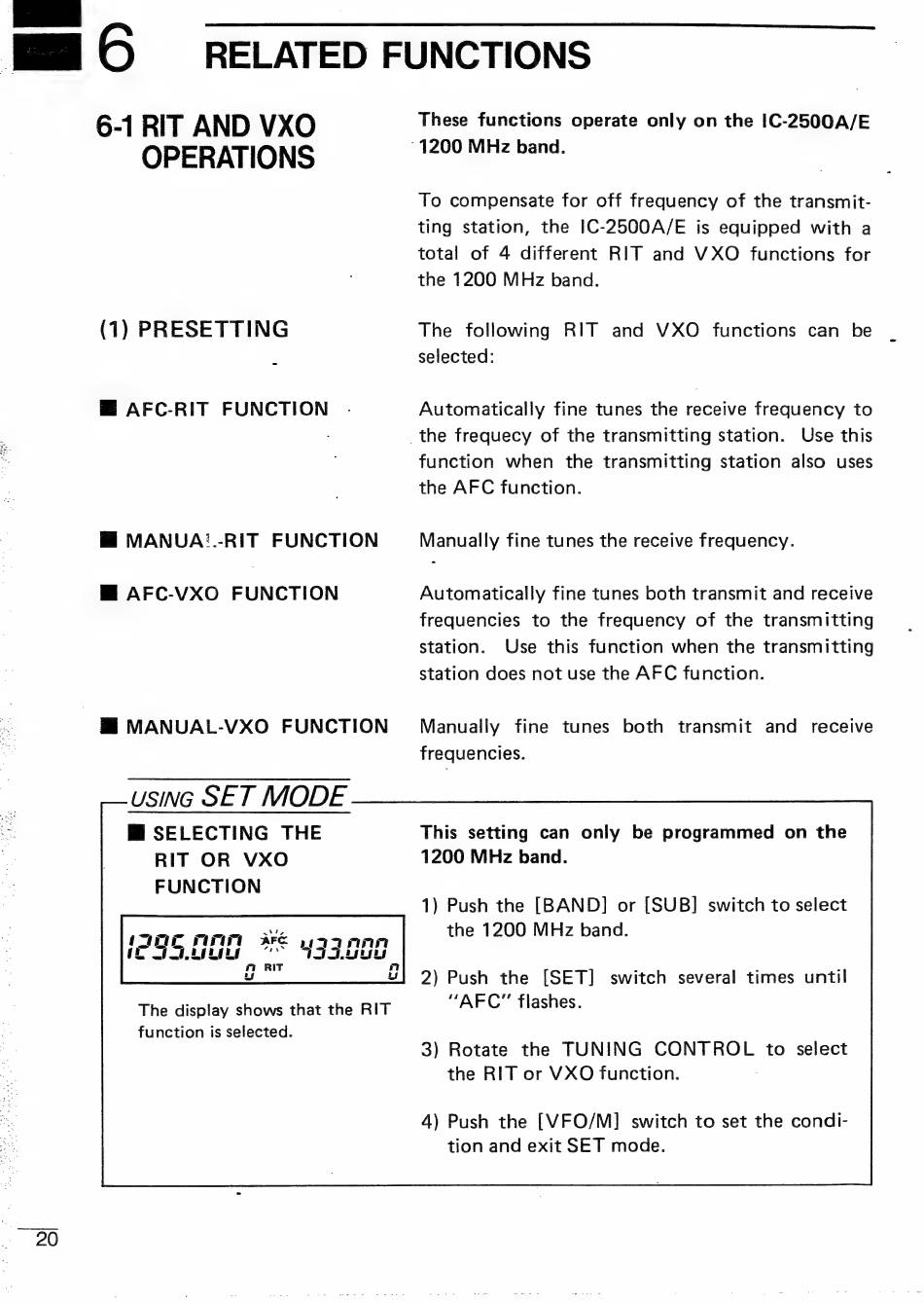

6-1 RIT AND VXO
OPERATIONS
(1) PRESETTING
El AFC-RIT FUNCTION
B MANUA'.RIT FUNCTION
B AFC-VXO FUNCTION
E MANUAL-VXO FUNCTION
USING SET MODE
NM SELECTING THE
RIT OR VXO
FUNCTION
The display shows that the RIT
function is selected.
RELATED FUNCTIONS
These functions operate only on the IC-2500A/E
: 1200 MHz band.
To compensate for off frequency of the transmit-
ting station, the IC-2500A/E is equipped with a
total of 4 different RIT and V XO functions for
the 1200 MHz band.
The following RIT and VXO functions can be
selected:
Automatically fine tunes the receive frequency to
. the frequecy of the transmitting station. Use this
function when the transmitting station also uses
the AFC function.
Manually fine tunes the receive frequency.
Automatically fine tunes both transmit and receive
frequencies to the frequency of the transmitting
station. Use this function when the transmitting
station does not use the AFC function.
Manually fine tunes both transmit and receive
frequencies.
This setting can only be programmed on the
1200 MHz band.
1) Push the [BAND] or [SUB] switch to select
the 1200 MHz band.
2) Push the [SET] switch several times until
"AFC" flashes.
3) Rotate the TUNING CONTROL to select
the RIT or VXO function.
4) Push the [VFO/M] switch to set the condi-
tion and exit SET mode.
