Note
Before installation, please remove the tape
of the screen cable. Tear it off gently to avoid
damaging the cable.

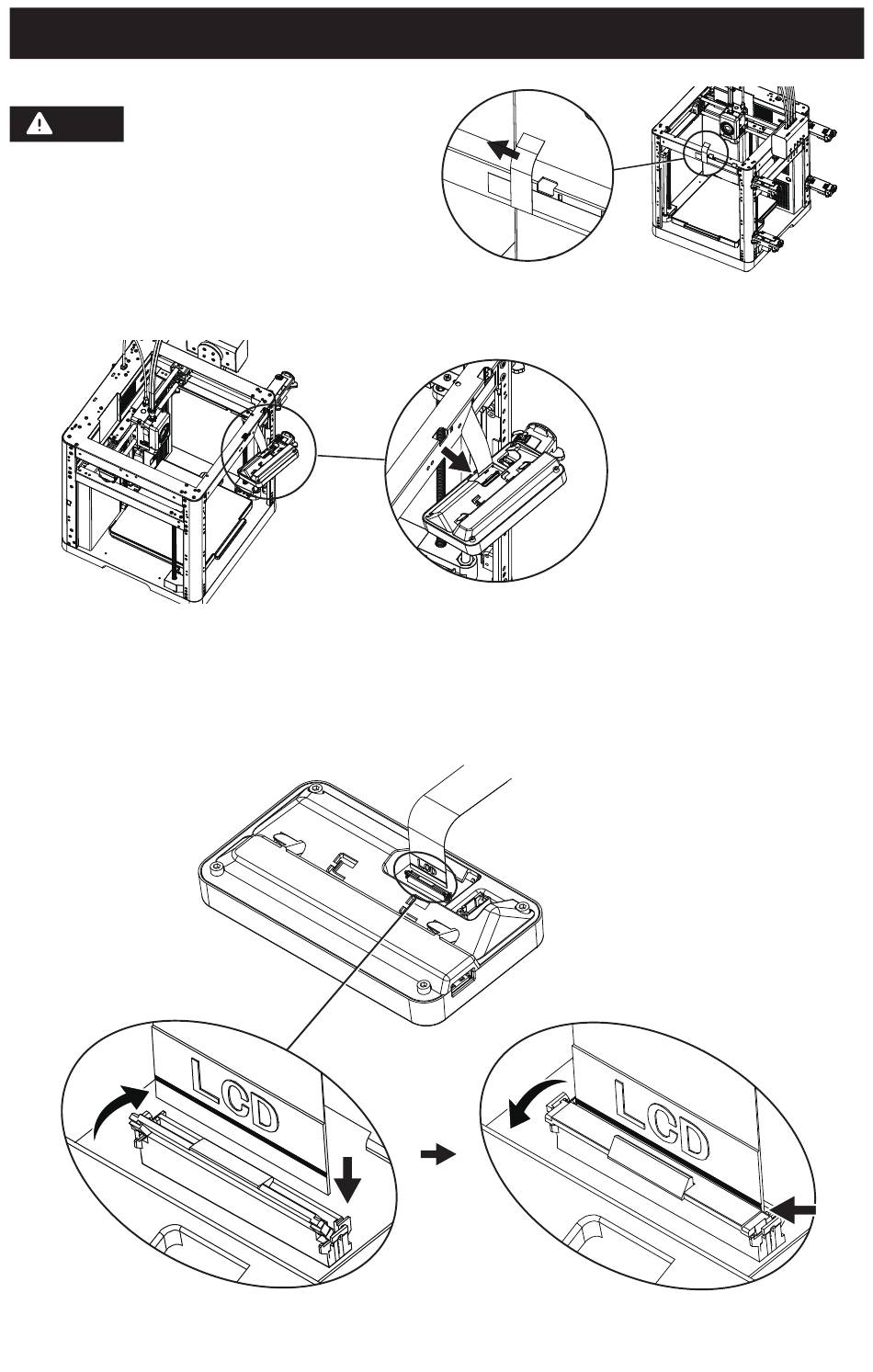

1. As shown in the picture, insert the screen cable into the screen connector.
a. Lift the buckle on the screen's cable socket to the indicated position (Figure 1). Then insert the
screen cable into the socket connector. Note: Ensure proper insertion and check alignment of
the indicator line with the socket.
b. Press down the buckle on the cable socket to the indicated position according to the arrow
direction (Figure 2).

Install the Screen

Figure 1
07
Figure 2
