Flashforge AD5X Quick Start Manual page 7

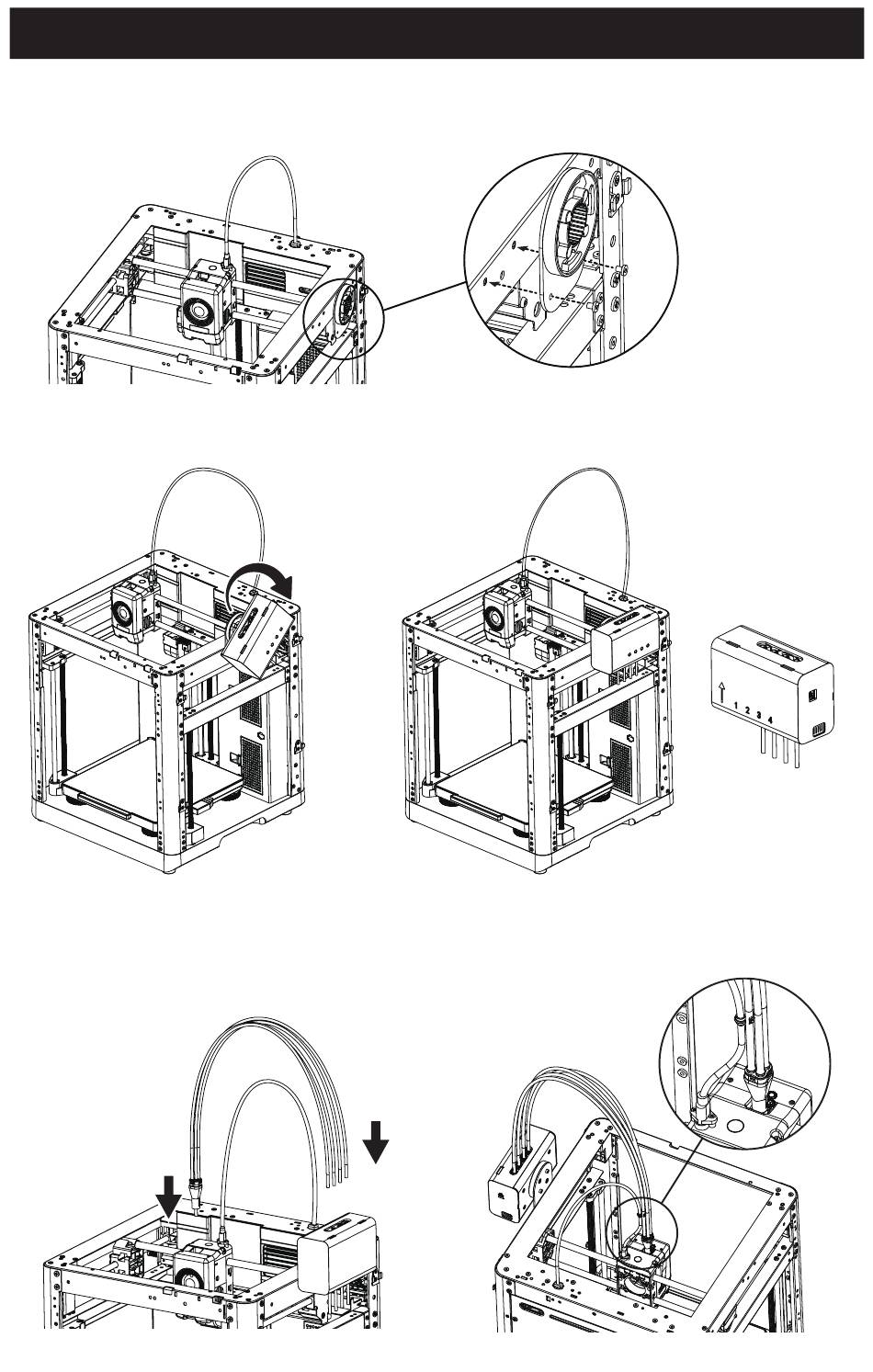

1. Secure the mounting plate to the side of the device using two M3×6 screws.
2. Rotate and secure the IFS module to the device using the clip, ensuring the guide tubes facing
downwards.
3. Insert the guide tubes into each channel of the
IFS module. There's no need to follow a specific
order for the channels. Connect the other end
to the extruder.
4-Color IFS Module
05
4. Connect the extruder cable and the guide
tube together through the buckle.
IFS installation
direction as
shown here
