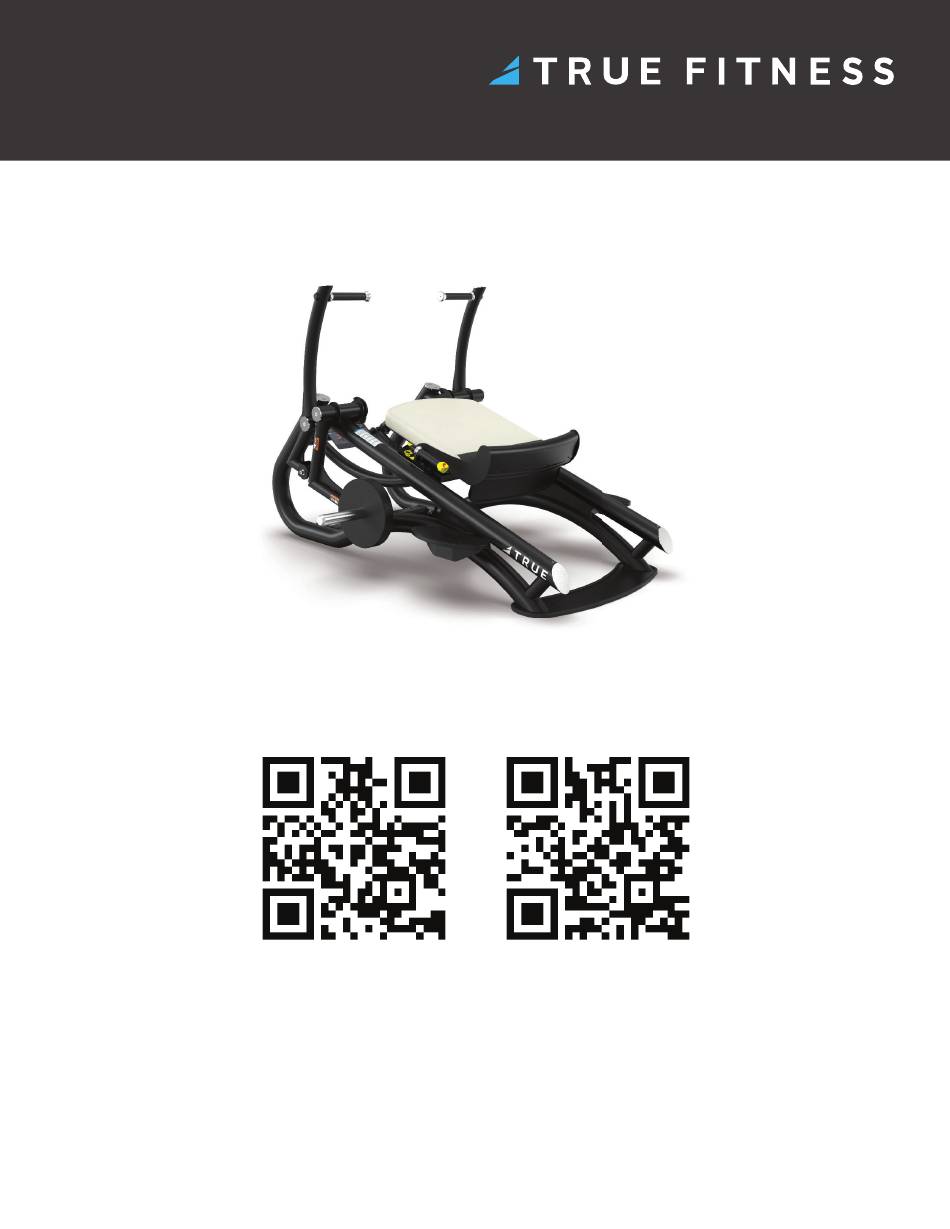

  • Page 1 PLS1500 FULL BODY PRESS COMPOSITE SCAN FOR UP-TO-DATE SCAN FOR OWNER’S MANUAL ASSEMBLY VIDEO OWNER’S MODEL PLS1500 MANUAL (MAN-PLS1500 REV02)

  • Page 2: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifi cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://truefi tness.com/services-support/user- manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 3: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS..................5 GENERAL CARE AND MAINTENANCE............................7 COMMERCIAL MAINTENANCE SCHEDULE..........................8 COMPLIANCES..................................8 DIMENSIONS AND WEIGHTS..............................9 LABEL LOCATIONS.................................10 WARNING AND INTENDED USE LABELS..........................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS..................................16 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE..........................30 WEEKLY INSPECTION AND MAINTENANCE..........................30 OTHER SCHEDULED PREVENTATIVE MAINTENANCE......................30 CLEANING THE EQUIPMENT..............................31...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS • Review and understand all of the warning labels affi xed to this machine and on the facility safety sign. • Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affi xed to the machine.

  • Page 6: Installation Safety Precautions

    INSTALLATION SAFETY PRECAUTIONS • Read this installation manual entirely before assembling this equipment. • Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. • Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defi...

  • Page 7: General Care And Maintenance

    GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.

  • Page 8: Commercial Maintenance Schedule

    COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect cables for wear, tension, and proper connection if equipped. Replace at the fi rst sign of wear. Inspect cable length and cable end fi ttings. Replace at the fi rst sign of wear. Inspect all nuts and bolts and tighten if needed.

  • Page 9: Dimensions And Weights

    DIMENSIONS AND WEIGHTS • ASSEMBLED DIMENSIONS (W X D X H) 66" x 78” x 52” / 168 cm x 198 cm x 132 cm HEIGHT 52” 132 cm WIDTH DEPTH 66” 78” 168 cm 198 cm ∙ PRODUCT WEIGHT 616 lbs / 280 kg ∙...

  • Page 10: Label Locations

    LABEL, MAINTENANCE WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com | 800.883.8783). Part# and Description Image LBL-ADJ-PLS1500 (Adjustment Guide)
  • Page 11 L B L - P R 0 - P L S 1 5 0 0 Scan for video instructions. LBL-WRN-0022 (General Warning) LBL-MTN-PLS001 (Maintenance) SPL-00-LBLSN (Serial Number) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS1400 SERIAL NO: 23-PLS140001X LBL-LOG-010BK (Logo)

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available on YouTube: https://www.youtube.com/@TRUEFitnessservicevids PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter.
  • Page 13 BOX CONTENTS BOX CONTENTS Item Image Item Image Front Main Frame Right Weight Arm Knee Pad Left Main Frame Linkage Frame Right Main Frame Linkage Arms Press Arm Axles Foot Plate Axle Sleeves Flange Bearings Carriage Assembly Counter Weights Weight Horns Left Axle Assembly Left Press Bar Right Axle...
  • Page 14 HARDWARE PACK CONTENTS PLS1500 HARDWARE PACK PLS1500 HARDWARE PACK ITEM DESCRIPTION ITEM DESCRIPTION SHCS, 1/2"-13 X 1-1/4", ZP HHS, 3/8"-16 X 1-1/2", GR5, ZP C 641 C 447 LOCK WASHER WASHER, FLAT, 3/8", ZP 13.5ID*21.3OD*2.5THK C 750 C 754C WASHER, FLAT, 1/2" SAE Z.P.
  • Page 15 HARDWARE PACK CONTENTS PLS1500 HARDWARE PACK ITEM DESCRIPTION ALLEN WRENCH S 1/8 C1022 ALLEN WRENCH S 7/32 C1020 ALLEN WRENCH S 5/16 C1019 ALLEN WRENCH S 3/8 C1033...

  • Page 16: Assembly Steps

    ASSEMBLY STEPS STEP 1—ASSEMBLE MAIN FRAME Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench ITEM PART# DESCRIPTION SC10000100X-35 LEFT MAIN FRAME SC00MF100X-35 RIGHT MAIN FRAME SC00MF400X-35 FRONT MAIN FRAME C 641 SHCS, 1/2"-13 X 1-1/4", ZP C 750 LOCK WASHER 13.5ID*21.3OD*2.5THK C 755B...
  • Page 17 STEP 2—ATTACH FOOT PLATE ASSEMBLY TO THE FRAME Tools Used in this Step Parts Used in this Step 7/32" Allen Wrench ITEM PART# DESCRIPTION COMP-SC00MF300X FOOT PLATE C 658 FHCS, 3/8"-16 X 1" A. Rotate the main frame backwards with the rear in the air. NOTE: At least one person should hold the main frame, while another installs the foot plate assembly.
  • Page 18 STEP 3—ATTACH CARRIAGE ASSEMBLY TO THE MAIN FRAME Tools Used in this Step Parts Used in this Step 1/8" Allen Wrench ITEM PART# DESCRIPTION SC00MF200X-35 CARRIAGE ASSEMBLY SC00CP000 FRAME END CAP LOWER C1017 FHSCS 10-24 X 1/2 A. Rotate the main frame backwards with the rear in the air. B.
  • Page 19 STEP 4—ATTACH LINKAGE ARMS TO THE LINKAGE FRAME Tools Used in this Step Parts Used in this Step 7/32" Allen Wrench ITEM PART# DESCRIPTION SC00LK000X-35 WELDMENT, CARRIAGE LINKAGE ARM SC00LK100X-35 LINKAGE ARM C 658 FHCS, 3/8"-16 X 1" SC10053800 SHAFT END CAP, 48 X 6 External Retaining C1018 EXTERNAL RETAINING RING 23.2 X 1.2 THK...
  • Page 20 STEP 5—INSERT PRESS ARM AXLES THROUGH THE MAIN FRAME Tools Used in this Step Parts Used in this Step 7/32" Allen Wrench ITEM PART# DESCRIPTION SC00MF700 PRESSING ARM AXLE C 658 FHCS, 3/8"-16 X 1" C1014 FLAT KEY 10 x 8 x 80 SC10007000 SC1000 AXLE SLEEVE Rubber Mallet...
  • Page 21 STEP 5—INSERT PRESS ARM AXLES THROUGH THE MAIN FRAME CONTINUED C. Slide the press arm axles through 1 washer and the linkage arms on each side. Using a rubber mallet, lightly tap the press arm axles into the main frame on each side. D.
  • Page 22 STEP 6—ATTACH LINKAGE FRAME TO THE CARRIAGE ASSEMBLY Tools Used in this Step Parts Used in this Step 9/16" Socket ITEM PART# DESCRIPTION Wrench SC00LK000X-35 WELDMENT, CARRIAGE LINKAGE ARM COMP-SC00AJ000X-35 CARRIAGE POSITION INDICATOR COMP-SC00MBR000 FLANGE MOUNT BALL BEARING, 3/4 I.D. C 447 HHS, 3/8"-16 X 1-1/2", GR5, ZP 9/16"...
  • Page 23 STEP 6—ATTACH LINKAGE FRAME TO THE CARRIAGE ASSEMBLY CONTINUED B. Slide the 2 fl ange bearings onto the linkage frame. C. Align the linkage frame with the inner holes on the inside of the carriage assembly. inner carriage assembly holes...
  • Page 24 STEP 6—ATTACH LINKAGE FRAME TO THE CARRIAGE ASSEMBLY CONTINUED D. Using a 9/16" socket wrench and a 9/16" open end wrench, attach the linkage frame and carriage position indicator to the carriage assembly using 4 hex head screws, 8 fl at washers, 4 lock nuts, and the 2 fl ange bearings. NOTE: At least one person should hold the linkage frame and carriage position indicator in place, while the other installs the linkage frame and carriage position indicator from underneath the unit.
  • Page 25 STEP 7—ATTACH PRESS BARS TO THE MAIN FRAME Tools Used in this Step Parts Used in this Step 7/32" Allen Wrench ITEM PART# DESCRIPTION SC00PB000X-35 LEFT PRESS BAR SC00PB100X-35 RIGHT PRESS BAR C 658 FHCS, 3/8"-16 X 1" SC10056500 SHAFT END CAP 70.2 X 6 C1014 FLAT KEY 10 x 8 x 80 COMP-SC10056000...
  • Page 26 STEP 8—ATTACH WEIGHT ARM ASSEMBLIES TO THE MAIN FRAME Tools Used in this Step Parts Used in this Step 7/32" and 3/8" Allen ITEM PART# DESCRIPTION Wrench SC00PA200X-35 LEFT WEIGHT ARM SC00PA300X-35 RIGHT WEIGHT ARM SC100073ASSY-35 SC1000 AXLE ASSEMBLY LEFT SC100074ASSY-35 SC1000 AXLE ASSEMBLY RIGHT 3/4"...
  • Page 27 STEP 8—ATTACH WEIGHT ARM ASSEMBLIES TO THE MAIN FRAME CONTINUED B. Slide the left and right weight arms through the corresponding axles assemblies, using 1 washer on each side. C. Using a 7/32" allen wrench, attach the left and right weight arms to the corresponding main frames using 1 hex screw, 1 end cap, 1 fl...
  • Page 28 Tools Used in this Step Parts Used in this Step 3/8" and 5/16" Allen ITEM PART# DESCRIPTION Wrench PLS1500 PAD KIT PAD KIT PLS PAD KIT HARDWARE COMP-SC00PD100X KNEE PAD SC00MF200X-35 CARRIAGE ASSEMBLY C 624 SHCS, 3/8"-16 X 1-1/4", ZP C 754C WASHER, FLAT, 3/8", ZP...
  • Page 29 STEP 10—REMOVE PROTECTIVE FILM FROM LOGOS (IF APPLICABLE) Remove the protective fi lm from the logos on the left and right main frame rails.

  • Page 30: Preventative Maintenance

    PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.

  • Page 31: Cleaning The Equipment

    CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.

  • Page 32: Warranty Information

    WARRANTY INFORMATION COMMERCIAL WARRANTY CARDIO WARRANTY ITEM VAPOR, APEX GRAVITY PLUS GRAVITY ADX, RO, SURGE Frame* 7 Years 7 Years 7 Years 5 Years Parts 3 Years 3 Years 3 Years 3 Years Consoles 3 Years 3 Years 3 Years 2 Years Labor** 2 Years...

  • Page 33: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the specifi...

  • Page 34: Warranty Registration

    Complete the information below and mail to: TRUE Product Support base serial 865 Hoff Road number location St. Louis, MO 63366 TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA OURI 63366 U OURI 63366 MODEL NO: PLSXXXX O: PLSXX...
  • Page 36 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-PLS1500 Owner’s Manual, Assembly Guide, and Warranty Card REV02 © 2025 TRUE Fitness All Rights Reserved...
