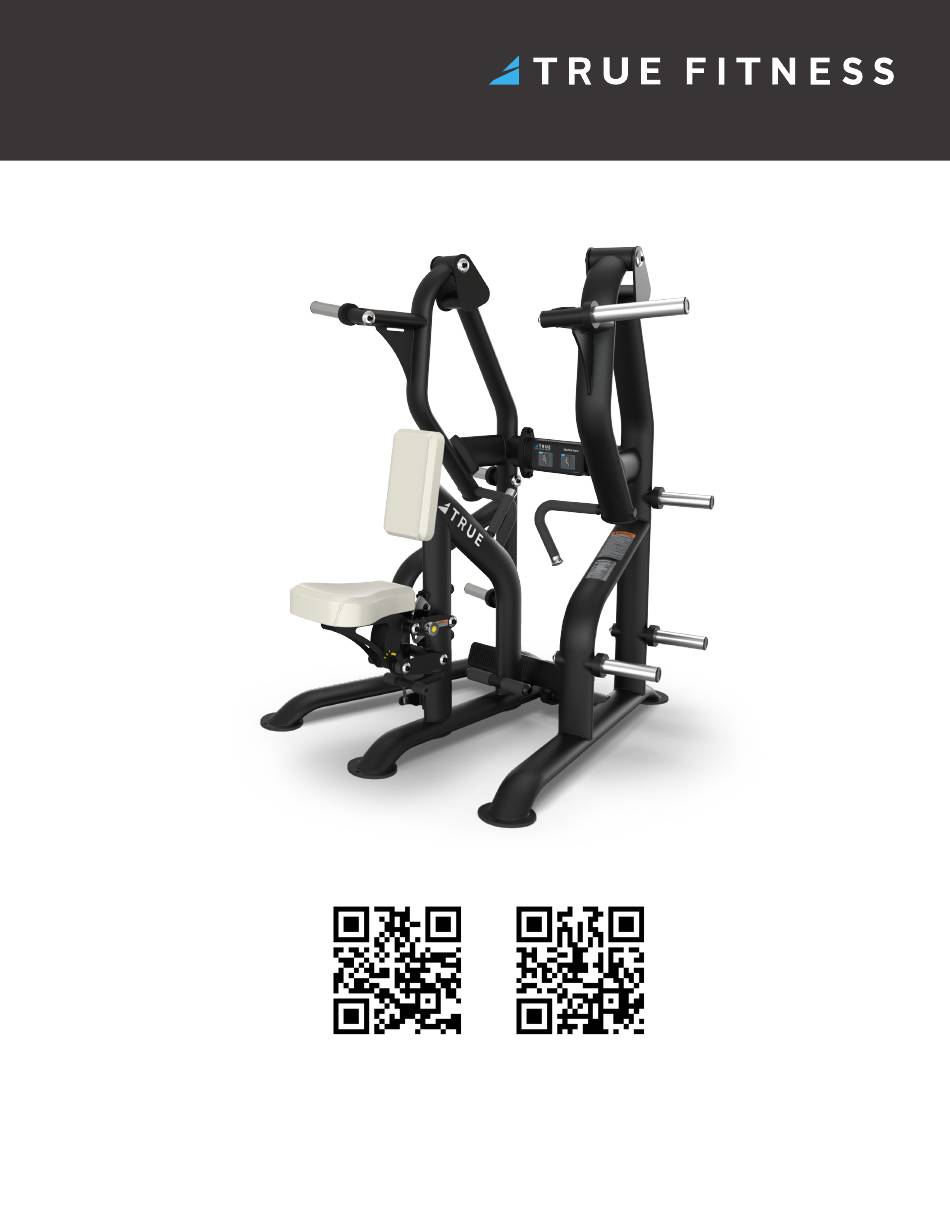

PLS0400
SEATED ROW
MODEL PLS0400
(MAN-PLS0400 REV04)
SCAN FOR UP-TO-DATE
OWNER'S MANUAL
SCAN FOR
ASSEMBLY VIDEO
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLS0400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for True Fitness PLS0400

  • Page 1 PLS0400 SEATED ROW SCAN FOR UP-TO-DATE SCAN FOR OWNER’S MANUAL ASSEMBLY VIDEO OWNER’S MANUAL MODEL PLS0400 (MAN-PLS0400 REV04)
  • Page 2: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifications, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://truefitness.com/services-support/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...
  • Page 3: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS..................5 GENERAL CARE AND MAINTENANCE............................7 COMMERCIAL MAINTENANCE SCHEDULE..........................8 COMPLIANCES..................................8 DIMENSIONS AND WEIGHTS..............................9 LABEL LOCATIONS.................................10 WARNING AND INTENDED USE LABELS..........................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS..................................14 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE..........................21 WEEKLY INSPECTION AND MAINTENANCE.........................21 OTHER SCHEDULED PREVENTATIVE MAINTENANCE......................21 CLEANING THE EQUIPMENT..............................22...
  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS • Review and understand all of the warning labels affixed to this machine and on the facility safety sign. • Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affixed to the machine.
  • Page 6: Installation Safety Precautions

    INSTALLATION SAFETY PRECAUTIONS • Read this installation manual entirely before assembling this equipment. • Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. • Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) •...
  • Page 7: General Care And Maintenance

    GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.
  • Page 8: Commercial Maintenance Schedule

    COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect all nuts and bolts and tighten if needed. Inspect safety catches, stop rods, and their fasteners. Replace at the first sign of wear. Inspect all anti-slip surfaces and replace as needed. Inspect all adjustment pins, set screws, and gas shocks if equipped.
  • Page 9: Dimensions And Weights

    DIMENSIONS AND WEIGHTS • ASSEMBLED DIMENSIONS (W X D X H) 64.5" x 57” x 65” / 163.8 cm x 144.8 cm x 165.1 cm HEIGHT 65” 165.1 cm WIDTH DEPTH 64.5” 57” 163.8 cm 144.8 cm • PRODUCT WEIGHT 360 lbs / 163 kg •...
  • Page 10: Label Locations

    LABEL LOCATIONS Item Description LBL-ADJ-SPL013 LABEL, ADJUSTMENT KNOB YELLOW LBL-ADJ-SPL010 LABEL, SEAT ADJ POSITION INDICATOR ARROW SPL LBL-ADJ-PLS400 LABEL, PLS0400 SEAT ADJ LBL-WRN-PLS002 LABEL, 6 PLATE WARNING B2065 LABEL, WARNING, COMPLETELY INSERT PIN LBL-PRO-PLS400 LABEL, PLS0400 PROCEDURE LBL-WRN-PLS001 LABEL, GENERAL WARNING...
  • Page 11 Part# and Description Image LBL-ADJ-PLS400 (Seat Adjustment) LBL-WRN-PLS002 (Plate Weight) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS0400 TRUE FITNESS TECHNOLOGY, INC SERIAL NO: 23-PLS040001X 865 HOFF RD, ST LOUIS MISSOURI 63366 USA...
  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessServiceVids: https://youtu.be/lkf2gAnES1A PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter.
  • Page 13 THIS PRODUCT SHIPS IN MULTIPLE CARTONS. ENSURE YOU HAVE ALL PARTS SHOWN BEFORE ASSEMBLING THE EQUIPMENT. BOX CONTENTS BOX CONTENTS Item Image Item Image Left Arm Assembly Seat Frame Assembly Cross Brace Assembly Foot Assembly Active Weight Post Assemblies (Long) Right Side Frame Assembly Storage Weight...
  • Page 14: Assembly Steps

    Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-04-MFR400X ASSEMBLY, PLS0400 MAINFRAME RIGHT recommended) PLS-04-MFR410X ASSEMBLY, PLS0400 MAINFRAME LEFT PLS-04-MFR490X ASSEMBLY, PLS0400 SEAT FRAME PLS-04-CBR210X ASSEMBLY, CROSS BRACE C 640A SHCS, 1/2"-13 X 1", BLK...
  • Page 15 STEP 1—ASSEMBLE FRAME CONTINUED C. Remove and set aside the preassembled socket head D. Carefully line up the right and left frame assemblies cap screws and lock washers from the upper side with the cross brace assembly and finger tight the frame assemblies.
  • Page 16 STEP 2—ATTACH FOOT PAD TO FRAME Tools Used in this Step Parts Used in this Step 9/16" Wrench ITEM PART# DESCRIPTION SPL-16-FPT200 FOOT PAD ASSEMBLY C 754B WASHER, FLAT, 3/8" X 13/16 OD X .07 THK BLACK C 766A LOCK NUT, 3/8"-16 X 17/64", NYLON...
  • Page 17 STEP 3—ATTACH ARMS TO FRAME Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-04-ARM350X ASSEMBLY, PLS0400 RIGHT ARM recommended) PLS-04-ARM360X ASSEMBLY, PLS0400 LEFT ARM PLS-01-AXL001 AXLE, PIVOT PLS-00-CAP005 ALM BOLT CAP Rubber Mallet C 622A SHCS, 3/8"-16 X 3/4"...
  • Page 18 STEP 4—ATTACH WEIGHT POST ASSEMBLIES Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-00-PST000X ASSEMBLY, PLS WEIGHT HORN (ACTIVE-LONG) recommended) PLS-00-PST030X ASSEMBLY, WEIGHT HORN (STORAGE-SHORT) PLS-00-CAP005 ALM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP Rubber Mallet C 622A...
  • Page 19 Parts Used in this Step Tools Used in this Step ITEM PART# DESCRIPTION 5/16" Allen Wrench (ball end PLS0400 PAD KIT PAD KIT recommended) PAD KIT HARDWARE C 749B LOCK WASHER, 3/8", BLK ZP C 754B WASHER, FLAT, 3/8" SAE, BLK C 624A SHCS, 3/8"-16, 1-1/4"...
  • Page 20 STEP 6—VERIFY ADJUSTMENTS FUNCTION AS INTENDED Pull the pop pin out and place it into each of the adjustment holes for the seat assembly. IMPORTANT! Verify the pin inserts in and out of each hole completely. pop pin If any of the adjustments are not functioning as intended, contact TRUE product support: •...
  • Page 21: Preventative Maintenance

    PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.
  • Page 22: Cleaning The Equipment

    CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.
  • Page 23: Warranty Information

    TRUE. **Labor warranty is available for equipment located within United States. TRUE Fitness equipment is automatically covered under a 6-month Limited Labor Warranty. This 6-month Limited Labor Warranty begins from the date of purchase shown by a valid receipt.
  • Page 24: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original product purchaser and the parts of the TRUE product (the “Product”) listed below. During the applicable Warranty Period, the Product, under normal use and service, shall be free of manufacturing defects in workmanship and materials.
  • Page 25: Warranty Registration

    Scan the QR code below with your smartphone to be base serial taken directly to the registration page. number location TRUE FITNESS TECHNOLOGY, INC • By Mail: 865 HOFF RD, ST LOUIS MISSOURI 63366 USA Complete the information below and mail to:...
  • Page 26 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-PLS0400 Owner’s Manual, Assembly Guide, and Warranty Card REV04 © 2025 TRUE Fitness All Rights Reserved...
