PLS0600

BICEPS CURL

MODEL PLS0600

(MAN-PLS0600 REV04)

SCAN FOR UP-TO-DATE

OWNER'S MANUAL

SCAN FOR

ASSEMBLY VIDEO

OWNER'S

MANUAL

Table of Contents

Need help?

Do you have a question about the PLS0600 and is the answer not in the manual?

Questions and answers

Summary of Contents for True Fitness PLS0600

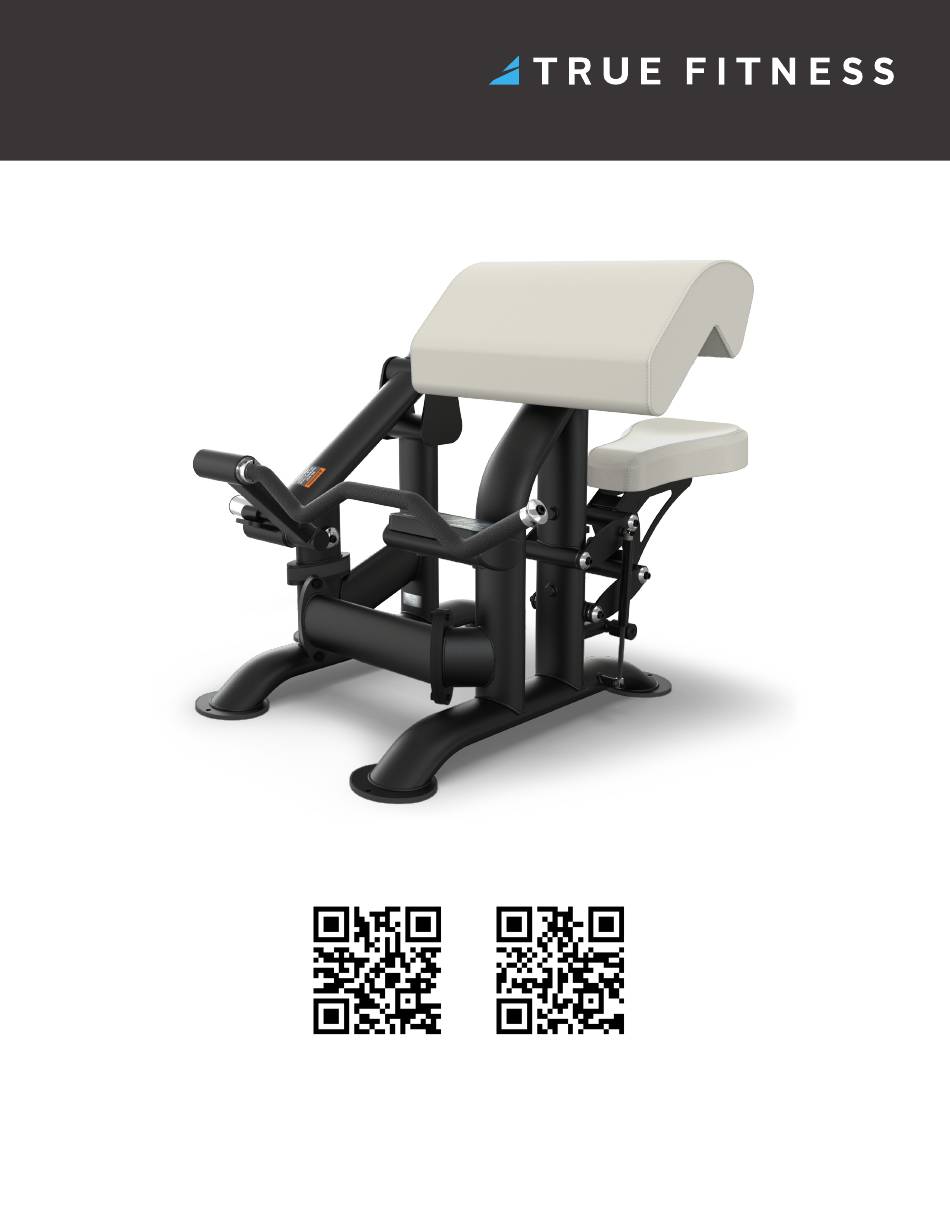

Page 1 PLS0600 BICEPS CURL SCAN FOR UP-TO-DATE SCAN FOR OWNER’S MANUAL ASSEMBLY VIDEO OWNER’S MANUAL MODEL PLS0600 (MAN-PLS0600 REV04)
Page 2: Important-Please Read
IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifications, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://truefitness.com/services-support/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...
Page 3: Reporting Freight Claims Or Parts Damage
REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS..................5 GENERAL CARE AND MAINTENANCE............................7 COMMERCIAL MAINTENANCE SCHEDULE..........................8 COMPLIANCES..................................8 DIMENSIONS AND WEIGHTS..............................9 LABEL LOCATIONS.................................10 WARNING AND INTENDED USE LABELS..........................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS..................................14 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE..........................20 WEEKLY INSPECTION AND MAINTENANCE.........................20 OTHER SCHEDULED PREVENTATIVE MAINTENANCE......................20 CLEANING THE EQUIPMENT..............................21...
Page 5: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS • Review and understand all of the warning labels affixed to this machine and on the facility safety sign. • Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affixed to the machine.
Page 6: Installation Safety Precautions
INSTALLATION SAFETY PRECAUTIONS • Read this installation manual entirely before assembling this equipment. • Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. • Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) •...
Page 7: General Care And Maintenance
GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.
Page 8: Commercial Maintenance Schedule
COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect all nuts and bolts and tighten if needed. Inspect safety catches, stop rods, and their fasteners. Replace at the first sign of wear. Inspect all anti-slip surfaces and replace as needed. Inspect all adjustment pins, set screws, and gas shocks if equipped.
Page 9: Dimensions And Weights
DIMENSIONS AND WEIGHTS • ASSEMBLED DIMENSIONS (W X D X H) 49" x 42.5” x 36.75” / 124 cm x 108 cm x 93.4 cm HEIGHT 36.75" 93.4 cm DEPTH WIDTH 42.5" 49” 108 cm 124 cm • PRODUCT WEIGHT 277 lbs / 125.7 kg •...
Page 10: Label Locations
LABEL, SEAT ADJ POSITION INDICATOR ARROW SPL LBL-ADJ-PLS027 LABEL, PLS SEAT ADJ LBL-WRN-PLS003 LABEL, 4 PLATE WARNING B2065 LABEL, WARNING, COMPLETELY INSERT PIN LBL-PRO-PLS600 LABEL, PLS0600 PROCEDURE LBL-WRN-PLS001 LABEL, GENERAL WARNING LBL-MTN-PLS001 LABEL, MAINTENANCE LBL-LOG-010BK LABEL, 10" NEW TRUE LOGO, WHITE SPL-00-LBLSN...
Page 11 Part# and Description Image LBL-ADJ-PLS027 (Seat Adjustment) LBL-WRN-PLS003 (Plate Weight) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS0100 TRUE FITNESS TECHNOLOGY, INC SERIAL NO: 23-PLS010001X 865 HOFF RD, ST LOUIS MISSOURI 63366 USA...
Page 12: Assembly Instructions
ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessServiceVids: https://youtu.be/20WL-pmqz0Q PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter.
Page 13 THIS PRODUCT SHIPS IN MULTIPLE CARTONS. ENSURE YOU HAVE ALL PARTS SHOWN BEFORE ASSEMBLING THE EQUIPMENT. BOX CONTENTS BOX CONTENTS Item Image Item Image Active Weight Post Center Cross Brace Assembly Assembly Seat Pad Assembly Main Frame Assembly Arm Pad Assembly Pad Kit Hardware Center Frame Assembly...
Page 14: Assembly Steps
ITEM PART# DESCRIPTION 3/8" Allen Wrench PLS-06-MFR210X ASSEMBLY, PLS0600 MAINFRAME PLS-06-MFR190X ASSEMBLY, PLS0600 CENTER FRAME PLS-06-MFR050X ASSEMBLY, FRONT CROSS BRACE C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED A. Remove and set aside the preassembled socket B.
Page 15 Tools Used in this Step Parts Used in this Step ITEM PART# DESCRIPTION 5/16" Allen Wrench PLS-06-MFR210X ASSEMBLY, PLS0600 MAINFRAME PLS-06-ARM110X SUB ASSEMBLY, PLS0600 ARM PLS-01-AXL001 AXLE, PIVOT PLS-00-CAP005 ALM BOLT CAP Rubber Mallet C 622A SHCS, 3/8"-16 X 3/4" C 749B LOCK WASHER, 3/8", BLK ZP...
Page 16 STEP 3—ATTACH HANDLE BAR ASSEMBLY TO FRAME Tools Used in this Step Parts Used in this Step Retaining Ring ITEM PART# DESCRIPTION Pliers or Flat Head PLS-06-HND000X ASSEMBLY, HANDLE BAR Screwdriver C 622A SHCS, 3/8"-16 X 3/4", BLK C 749B LOCK WASHER, 3/8", BLK ZP 5/16"...
Page 17 STEP 4—ATTACH WEIGHT POST ASSEMBLY Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION PLS-00-PST030X ASSEMBLY, WEIGHT HORN (ACTIVE) PLS-00-CAP005 ARM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP C 622A SHCS, 3/8"-16 X 3/4" Rubber Mallet A.
Page 18 STEP 5—ATTACH PADS TO FRAME Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION PLS0600 PAD KIT PAD KIT PLS PAD KIT HARDWARE C 624A SHCS, 3/8"-16, 1-1/4" BLACK C 749B LOCK WASHER, 3/8", BLK ZP C 754B WASHER, FLAT, 3/8"...
Page 19 STEP 6—VERIFY THE ADJUSTMENT FUNCTIONS AS INTENDED Pull the pop pin out and place it into each of the six adjustment holes for the seat assembly. IMPORTANT! Verify the pin inserts in and out of each hole completely. pop pin If any of the adjustments are not functioning as intended, contact TRUE product support: •...
Page 20 STEP 7—REMOVE PROTECTIVE FILM FROM LOGO...
Page 21: Preventative Maintenance
PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.
Page 22: Cleaning The Equipment
CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.
Page 23: Warranty Information
TRUE. **Labor warranty is available for equipment located within United States. TRUE Fitness equipment is automatically covered under a 6-month Limited Labor Warranty. This 6-month Limited Labor Warranty begins from the date of purchase shown by a valid receipt.
Page 24: Warranty Details
WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original product purchaser and the parts of the TRUE product (the “Product”) listed below. During the applicable Warranty Period, the Product, under normal use and service, shall be free of manufacturing defects in workmanship and materials.
Page 25: Warranty Registration
• QR Code: number location Scan the QR code below with your smartphone to be taken directly to the registration page. TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA • By Mail: MODEL NO: PLSXXXX Complete the information below and mail to:...
