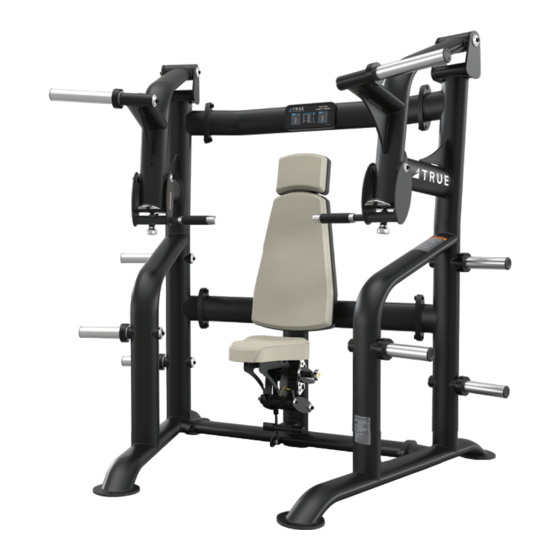

INCLINE CHEST PRESS

MODEL PLS1100

(MAN-PLS1100 REV02)

OWNER'S

MANUAL

Table of Contents

Need help?

Do you have a question about the PLS1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for True Fitness PLS1100

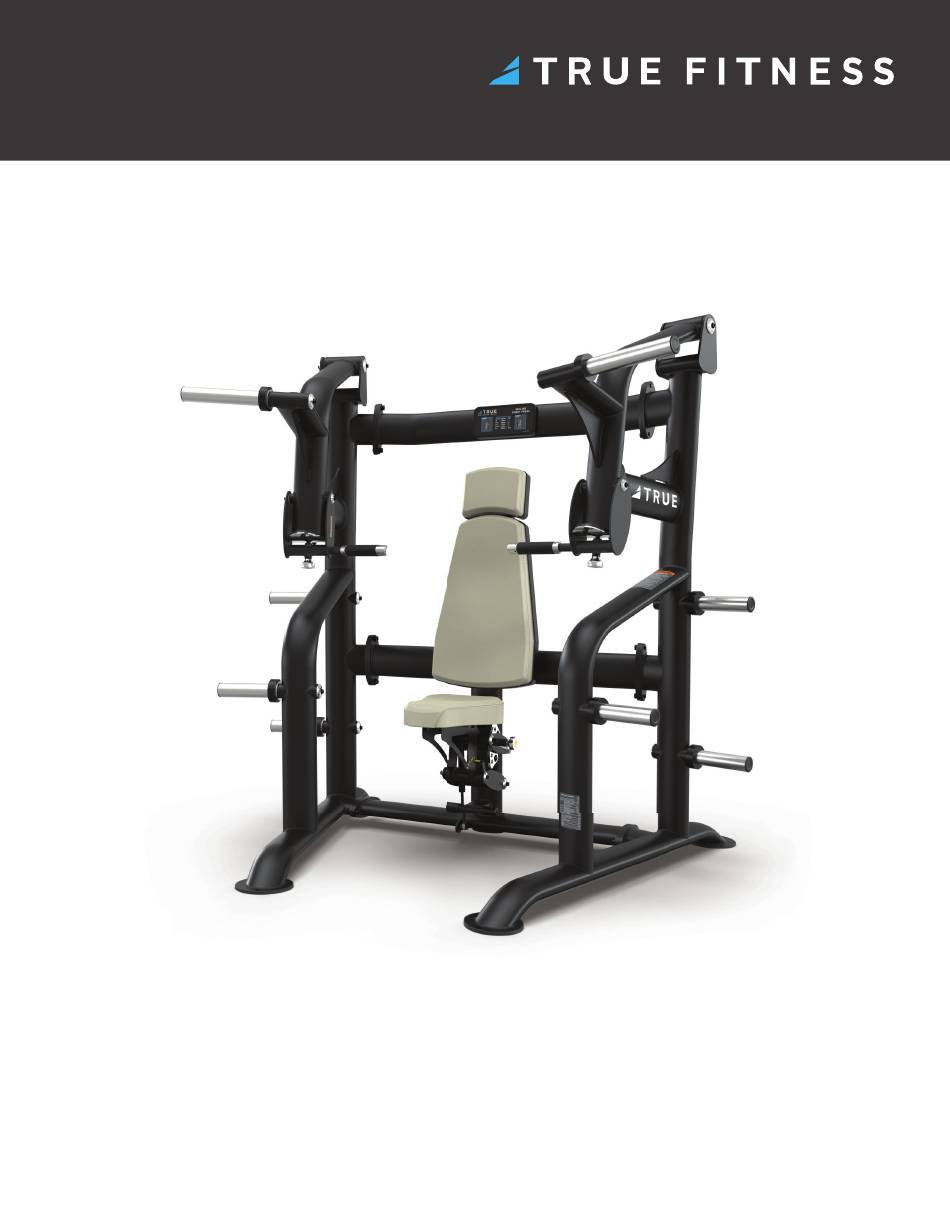

Page 1 PLS1100 INCLINE CHEST PRESS OWNER’S MANUAL MODEL PLS1100 (MAN-PLS1100 REV02)
Page 2 IMPORTANT—PLEASE READ IMPORTANT! All products shown are prototype. Actual product delivered may vary. Product speciﬁ cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://trueﬁ tness.com/support/user-manuals/ IMPORTANTE! Todos los productos mostrados son prototipos.
Page 3 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
Page 4 REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.
Page 5: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................6 GENERAL CARE AND MAINTENANCE..........................8 COMMERCIAL MAINTENANCE SCHEDULE........................9 COMPLIANCES..................................9 DIMENSIONS AND WEIGHTS.............................10 LABEL LOCATIONS................................11 WARNING AND INTENDED USE LABELS...........................11 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST...............................13 ASSEMBLY STEPS................................15 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE...........................23 WEEKLY INSPECTION AND MAINTENANCE........................23 OTHER SCHEDULED PREVENTATIVE MAINTENANCE....................23 CLEANING THE EQUIPMENT.............................24...
Page 6: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS ● Review and understand all of the warning labels aﬃ xed to this machine and on the facility safety sign. ● Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label aﬃ xed to the machine.
Page 7 INSTALLATION SAFETY PRECAUTIONS ● Read this installation manual entirely before assembling this equipment. ● Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. ● Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as deﬁ...
Page 8: General Care And Maintenance
GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.
Page 9: Commercial Maintenance Schedule
COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect cables for wear, tension, and proper connection if equipped. Replace at the ﬁ rst sign of wear. Inspect cable length and cable end ﬁ ttings. Replace at the ﬁ rst sign of wear. Inspect all nuts and bolts and tighten if needed.
Page 10: Dimensions And Weights
DIMENSIONS AND WEIGHTS ● ASSEMBLED DIMENSIONS (W X D X H) 73" x 48.5” x 70.5” / 185.4 cm x 123.2 cm x 179 cm HEIGHT 70.5” 179 cm WIDTH DEPTH 73” 48.5” 185.4 cm 123.2 cm ● PRODUCT WEIGHT 398 lbs / 180.5 kg ●...
Page 11: Label Locations
LABEL, SEAT ADJ POSITION INDICATOR ARROW SPL LBL-ADJ-PLS027 LABEL, PLS SEAT ADJ LBL-WRN-PLS002 LABEL, 6 PLATE WARNING B2065 LABEL, WARNING, COMPLETELY INSERT PIN LBL-PRO-PLS1100 LABEL, PLS1100 PROCEDURE LBL-WRN-PLS001 LABEL, GENERAL WARNING LBL-MTN-PLS001 LABEL, MAINTENANCE LBL-LOG-010BK LABEL, 10" NEW TRUE LOGO, WHITE...
Page 12 C H E ST PR E SS LB L -P R O-P L S 1 1 0 0 LBL-WRN-PLS001 (General Warning) LBL-MTN-PLS001 (Maintenance) LBL-LOG-010BK (Logo) SPL-00-LBLSN (Serial Number) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS1100 SERIAL NO: 23-PLS110001X...
Page 13: Assembly Instructions
ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available @TRUEFitnessServiceVids: https://youtu.be/B_VSIPVkt-4 PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter.
Page 14 BOX CONTENTS BOX CONTENTS Item Image Item Image Center Seat Frame Left Side Arm Assembly Assembly Upper Center Frame Assembly Right Side Frame Assembly Seat Assembly Active Weight Post Assemblies (Long) Storage Weight Post Assemblies (Short) Left Side Frame Seat Pad Assembly Assembly Back Pad...
Page 15: Assembly Steps
ASSEMBLY STEPS STEP 1—ASSEMBLE FRAME Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-11-MFR050X RIGHT FRAME ASSEMBLY recommended) PLS-11-MFR000X LEFT FRAME ASSEMBLY PLS-01-MFR270X SEAT FRAME ASSEMBLY PLS-11-CBR000X UPPER CROSS BRACE ASSEMBLY C 640A SHCS, 1/2"-13 X 1", BLK C 750B...
Page 16 STEP 1—ASSEMBLE FRAME CONTINUED C. Using two people, carefully line up the right and D. When all 12 socket head cap screws and lock left frame assemblies with the upper cross brace washers are ﬁ nger tight, use a 3/8" allen wrench to assembly and ﬁ...
Page 17 STEP 2—ASSEMBLE SEAT TO SEAT FRAME ASSEMBLY Tools Used in this Step Parts Used in this Step Wire Cutters ITEM PART# DESCRIPTION PLS-01-MFR270X SEAT FRAME ASSEMBLY PLS-00-ADJ110X ASSEMBLY, FOUR BAR LINK SEAT ADJUSTMENT PLS-00-ADJ210X ASSEMBLY, SEAT ADJUSTMENT ARC 5/32", 5/16", and PLS-00-SFR260X ASSEMBLY, PLS SEAT FRAME 3/8"...
Page 18 STEP 2—ASSEMBLE SEAT TO SEAT FRAME ASSEMBLY CONTINUED A. Prepare the seat assembly and seat frame so they C. Apply Loctite to the bottom shoulder screw and ® can be assembled: using a 5/32" allen wrench, attach the gas shock to the seat frame assembly.
Page 19 Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-11-ARM000X ASSEMBLY, PLS1100 USER LEFT ARM recommended) PLS-11-ARM010X ASSEMBLY, PLS1100 USER RIGHT ARM PLS-01-AXL001 AXLE, PIVOT PLS-00-CAP005 ALM BOLT CAP Rubber Mallet C 622A SHCS, 3/8"-16 X 3/4"...
Page 20 STEP 4—ATTACH WEIGHT POST ASSEMBLIES Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS-00-PST000X ASSEMBLY, PLS WEIGHT HORN (ACTIVE-LONG) recommended) PLS-00-PST030X ASSEMBLY, WEIGHT HORN (STORAGE-SHORT) PLS-00-CAP005 ALM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP C 622A SHCS, 3/8"-16 X 3/4"...
Page 21 STEP 5—ATTACH PADS TO SEAT FRAME Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION (ball end PLS0100 PAD KIT PAD KIT PLS0100 recommended) PAD KIT HARDWARE C 635 SHCS, 3/8"-16 X 3-3/4'" C 749B LOCK WASHER, 3/8", BLK ZP C 754B...
Page 22 STEP 6—VERIFY ALL ADJUSTMENTS FUNCTION AS INTENDED Pull the pop pin out and place it into each of the adjustment holes for both the right and left arms and the seat assembly. NOTE: The arms have ﬁ ve adjustment holes, the seat has six. IMPORTANT! Verify the pin inserts in and out of each hole completely.
Page 23: Preventative Maintenance
PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.
Page 24: Cleaning The Equipment
CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.
Page 25: Warranty Information
WARRANTY INFORMATION PLS1100 LIMITED WARRANTY SAVE TIME AND REGISTER ONLINE! https://trueﬁ tness.com/support/warranty-registration/ All TRUE® Fitness products are distributed by TRUE FRAME and are warranted to the original registered product *This limited warranty on the structural frame does not purchaser and the parts of the TRUE product (the include paint or coatings.
Page 26 SAVE TIME AND REGISTER ONLINE! https://trueﬁ tness.com/support/warranty-registration/ THE TRUE LIMITED WARRANTY IS SUBJECT TO AND WILL BE IN ACCORDANCE WITH THE CONDITIONS SET FORTH BELOW: This limited warranty is valid for the United States and 13. This limited warranty does not cover damage or equipment Canada only.
Page 27 IMPORTANT! Failure to register this product will result in no servicing or authorization of parts to be shipped. To mail your warranty information, please ﬁ ll in the information below and mail to: Service Dept., TRUE Fitness, 865 Hoﬀ Road, St. Louis, MO 63366 (or save postage and register online at www.trueﬁ tness.com).
