PLS1700
GLUTE PRESS
COMPOSITE
MODEL PLS1700
(MAN-PLS1700 REV01)
SCAN FOR UP-TO-DATE
OWNER'S MANUAL
SCAN FOR
ASSEMBLY VIDEO
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLS1700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True Fitness PLS1700

Summary of Contents for True Fitness PLS1700

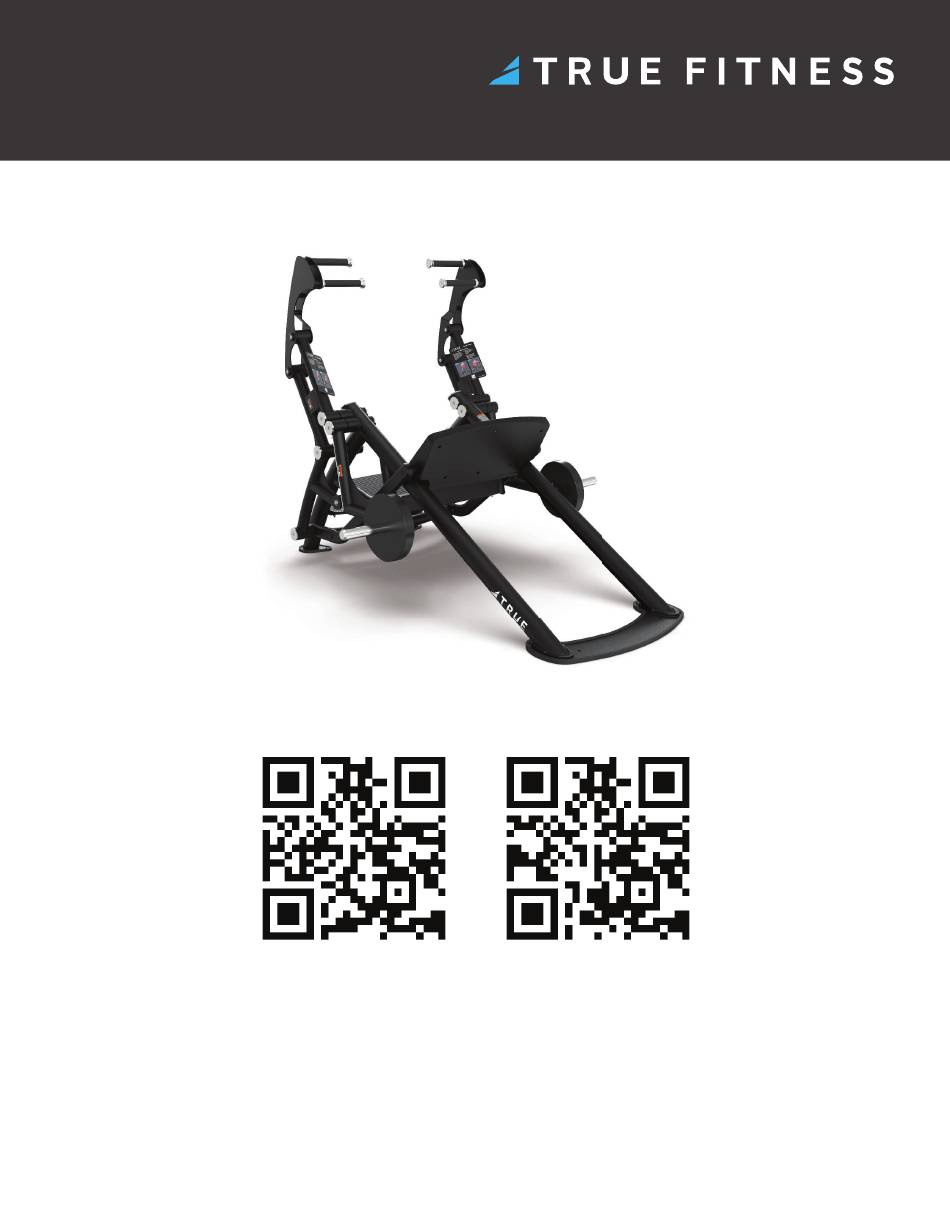

  • Page 1 PLS1700 GLUTE PRESS COMPOSITE SCAN FOR UP-TO-DATE SCAN FOR OWNER’S MANUAL ASSEMBLY VIDEO OWNER’S MODEL PLS1700 MANUAL (MAN-PLS1700 REV01)

  • Page 2: Important-Please Read

    IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product specifi cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://truefi tness.com/support/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...

  • Page 3: Reporting Freight Claims Or Parts Damage

    REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS..................5 GENERAL CARE AND MAINTENANCE............................7 COMMERCIAL MAINTENANCE SCHEDULE..........................8 COMPLIANCES..................................8 DIMENSIONS AND WEIGHTS..............................9 LABEL LOCATIONS.................................10 WARNING AND INTENDED USE LABELS..........................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS..................................16 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE..........................33 WEEKLY INSPECTION AND MAINTENANCE..........................33 OTHER SCHEDULED PREVENTATIVE MAINTENANCE......................33 CLEANING THE EQUIPMENT..............................34...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS FACILITY AND USER SAFETY PRECAUTIONS • Review and understand all of the warning labels affi xed to this machine and on the facility safety sign. • Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affi xed to the machine.

  • Page 6: Installation Safety Precautions

    INSTALLATION SAFETY PRECAUTIONS • Read this installation manual entirely before assembling this equipment. • Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility. • Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defi...

  • Page 7: General Care And Maintenance

    GENERAL CARE AND MAINTENANCE IMPORTANT Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.

  • Page 8: Commercial Maintenance Schedule

    COMMERCIAL MAINTENANCE SCHEDULE Commercial Maintenance Schedule Daily Weekly Monthly 6 Months Annually Inspect cables for wear, tension, and proper connection if equipped. Replace at the fi rst sign of wear. Inspect cable length and cable end fi ttings. Replace at the fi rst sign of wear. Inspect all nuts and bolts and tighten if needed.

  • Page 9: Dimensions And Weights

    DIMENSIONS AND WEIGHTS • ASSEMBLED DIMENSIONS (W X D X H) 65.3" x 85.8” x 63.7” / 165.8 cm x 217.9 cm x 161.9 cm HEIGHT 63.7” 161.9 cm WIDTH DEPTH 65.3” 85.8” 102.9 cm 224.8 cm ∙ PRODUCT WEIGHT 631 lbs / 286 kg ∙...

  • Page 10: Label Locations

    LABEL LOCATIONS Item Part# Description LBL-WRN-PLS003 LABEL, 4 PLATE WARNING SD0301 PINCH POINT STICKER 64*32 LBL-PRO-PLS1700L LABEL, PLS1700 PLACARD LEFT LBL-PRO-PLS1700R LABEL, PLS1700 PLACARD RIGHT LBL-WRN-0022 LABEL, GENERAL WARNING SPL-00-LBLSN LABEL, SERIAL NUMBER LBL-LOG-010BK LABEL, 10" NEW TRUE LOGO, WHITE...
  • Page 11 Use only TRUE Fitness supplied parts. 11. DO NOT remove this label. Replace if damaged. ASTMF1749 LBL-WRN-0022 LBL-MTN-PLS001 (Maintenance) SPL-00-LBLSN (Serial Number) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS1700 SERIAL NO: 24-PLS170001X LBL-LOG-010BK (Logo)

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS NOTE: Supplemental video available on YouTube: https://www.youtube.com/@TRUEFitnessservicevids PREASSEMBLY CHECKLIST CAUTION: Use caution when assembling this product. Unpacking and assembling this product requires two or more people. Use caution when unpacking this product. Avoid damage to the product and product pads. DO NOT use a box cutter.

  • Page 13: Box Contents

    BOX CONTENTS ITEM DESCRIPTION ITEM DESCRIPTION MAIN FRAME, LEFT SIDE WEIGHT PRESSING ARM, LEFT MAIN FRAME, RIGHT SIDE SUBASSEMBLY, RIGHT PLACARD ARM SUBASSEMBLY, REAR FOOT PLATE SUBASSEMBLY, LEFT PLACARD ARM HEEL PLATE USER HANDLE, RIGHT USER PLATFORM USER HANDLE, LEFT FRONT STEP ASSEMBLY WEIGHT ARM, RIGHT CARRIAGE TROLLEY ASSEMBLY...

  • Page 14: Hardware Pack Contents

    HARDWARE PACK CONTENTS PLS1700 HARDWARE PACK PLS1700 HARDWARE PACK ITEM DESCRIPTION ITEM DESCRIPTION FHCS, 3/8"-16 X 1" SHCS 1/2"-13 X 3" C 658 C1015 WASHER 51*20.2*5 WASHER 70.2 X 30.2 X 5 COMP- COMP- SC10056300 SC10056000 SHAFT END CAP, 48 X 6 SHAFT END CAP 70.2 X 6...
  • Page 15 HARDWARE PACK CONTENTS PLS1700 HARDWARE PACK PLS1700 HARDWARE PACK ITEM DESCRIPTION ITEM DESCRIPTION WASHER, FLAT, M6, BLK ZP ALLEN WRENCH S 3/16 CC-36-011A C1585 LOCK WASHER, 1/4 SPLIT, BLK C 747A ALLEN WRENCH S 7/32 WASHER 23.5*10.5*7.1 C1020 C1035 WASHER 70.2 X 20.2 X 5...

  • Page 16: Assembly Steps

    ASSEMBLY STEPS STEP 1—ASSEMBLE MAIN FRAME Tools Used in this Step Parts Used in this Step 9/16" Wrench ITEM PART# DESCRIPTION SC05MF000X-35 MAIN FRAME, LEFT SIDE SC05MF100X-35 MAIN FRAME, RIGHT SIDE SC05MF400X-35 HEEL PLATE SC05MF300X-35 USER PLATFORM SC05MF200X-35 FRONT STEP ASSEMBLY C 742A LOCK NUT, 3/8"-16 NYL, BLK PHOS WASHER, FLAT, 3/8"...
  • Page 17 STEP 2—ATTACH FOOT PRESSING PLATE Tools Used in this Step Parts Used in this Step 9/16" Socket ITEM PART# DESCRIPTION Wrench SC05MF500X-35 FOOT PRESSING PLATE SC05MF600X-35 CARRIAGE TROLLEY ASSEMBLY C 446 HHS, 3/8"-16 X 1-1/4", GR5, ZP C 754B WASHER, FLAT, 3/8" X 13/16" OD X .07 THK 9/16"...
  • Page 18 STEP 3—ATTACH LINKAGE ARMS AND CROSS TIE Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench ITEM PART# DESCRIPTION SC05CF000X-35 LINKAGE ARM, RIGHT SC05CF100X-35 LINKAGE ARM, LEFT SC05CF200X-35 LINKAGE ARM, CROSS TIE C 445 HHS, 3/8"-16 X 1", GR5, ZP 9/16"...
  • Page 19 WASHER 70.2 X 30.2 X 5 COMP-SC10056100 WASHER 70.2 x 25.2 x 5 SC1005-3-003 ASSEMBLY LUBRICANT, PLS1700 B. Wipe all dirt and dust from the main frame shafts Slide the carriage trolley assembly up the main frame. before lightly applying the assembly lubricant.
  • Page 20 STEP 4—ATTACH WEIGHT PRESSING ARMS CONTINUED C. Using a 7/32" allen wrench, attach the left and right pressing arms to the main frame and linkage arms using 6 hex screws, 6 shaft end caps, and 8 washers. NOTE: At least one person should hold the carriage trolley assembly, while another installs the weight pressing arms.
  • Page 21 STEP 5—ATTACH REAR FOOT PLATE Tools Used in this Step Parts Used in this Step 5/32" Allen Wrench ITEM PART# DESCRIPTION SC05CM100X-35 SUBASSEMBLY, REAR FOOT PLATE C 959 FHCS, 1/4"-20 X 1/2" A. Rotate the main frame upwards and slide the rear foot B.
  • Page 22 WASHER 70.2 X 30.2 X 5 SC1005-3-003 ASSEMBLY LUBRICANT, PLS1700 A. Wipe all dirt and dust from the main frame shafts before lightly applying the assembly lubricant. Apply the lubricant to a cloth or paper towel and use it to wipe down the shafts on each side.
  • Page 23 STEP 6—ATTACH PLACARD ARMS CONTINUED B. Using a 7/32" allen wrench, attach the left and right placard arms to the main frame using 4 hex screws, 4 shaft end caps, and 4 washers.
  • Page 24 SC10056400 CONNECTING ROD 20*97 SC1005-3-003 ASSEMBLY LUBRICANT, PLS1700 Cloth A. Wipe all dirt and dust from the connecting rods before lightly applying the assembly lubricant. Apply the lubricant to a cloth or paper towel and use it to wipe down the 4 connecting rods.
  • Page 25 STEP 7—ATTACH USER HANDLES CONTINUED B. Align the user handles with the main frame. C. Line up the fl at edges of the connecting rods with the user handles. Slide the 4 connecting rods through the user handles, using 8 washers on the inside of the user handles. D.
  • Page 26 STEP 7—ATTACH USER HANDLES CONTINUED E. Using a 7/32" allen wrench, attach the left and right user handles to the main frame using 8 hex screws and 8 caps. NOTE: At least one person should hold the user handles in place, while the installs the user handles.
  • Page 27 WASHER 70.2 X 30.2 X 5 SC1005-3-003 ASSEMBLY LUBRICANT, PLS1700 A. Wipe all dirt and dust from the main frame shafts before lightly applying the assembly lubricant. Apply the lubricant to a cloth or paper towel and use it to wipe down the shafts on each side.
  • Page 28 STEP 8—ATTACH WEIGHT ARMS CONTINUED B. Using a 7/32" allen wrench, attach the left and right weight arms to the main frame using 4 hex screws, 4 shaft end caps, and 4 washers. NOTE: There is a small hole on the end of the right weight arm where the weight horn is located that denotes it is the right weight arm.
  • Page 29 STEP 9—ATTACH WEIGHT HORNS Tools Used in this Step Parts Used in this Step 7/32" and 3/8" Allen ITEM PART# DESCRIPTION Wrench SC05MF700 WEIGHT HORN CW65 65 LBS. COUNTER WEIGHT C1015 SHCS 1/2"-13 X 3" C 658 FHCS, 3/8"-16 X 1" 3/4"...
  • Page 30 STEP 10—ATTACH REAR COVER CARRIAGE Tools Used in this Step Parts Used in this Step 3/16" Allen Wrench ITEM PART# DESCRIPTION SC05MF700X CARRIAGE, REAR COVER C 607A SHCS, 1/4-20 X 1/2", BLK C 747A LOCK WASHER, 1/4 SPLIT, BLK CC-36-011A WASHER, FLAT, M6, BLK ZP 9/16' Wrench A.
  • Page 31 STEP 11—ATTACH PLACARD LABELS Parts Used in this Step ITEM PART# DESCRIPTION SC05LK200X-35 SUBASSEMBLY, RIGHT PLACARD ARM SC05LK300X-35 SUBASSEMBLY, LEFT PLACARD ARM LBL-PRO-PLS1700R PLS-1700 PLACARD RIGHT GLUTE EXERCISE LBL-PRO-PLS1700L PLS-1700 PLACARD LEFT THIGH EXERCISE Attach the left and right placard labels to the corresponding placard arms.
  • Page 32 STEP 12—REMOVE PROTECTIVE FILM FROM LOGOS (IF APPLICABLE) Remove the protective fi lm from the logos on the left and right main frame rails.

  • Page 33: Preventative Maintenance

    PREVENTATIVE MAINTENANCE Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.

  • Page 34: Cleaning The Equipment

    CLEANING THE EQUIPMENT Daily Cleaning Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.

  • Page 35: Warranty Information

    WARRANTY INFORMATION COMMERCIAL WARRANTY CARDIO WARRANTY ITEM VAPOR, APEX GRAVITY PLUS GRAVITY ADX, RO, SURGE Frame* 7 Years 7 Years 7 Years 5 Years Parts 3 Years 3 Years 3 Years 3 Years Consoles 3 Years 3 Years 3 Years 2 Years Labor** 2 Years...

  • Page 36: Limited-Use Commercial Warranty

    180 Days 180 Days TRUE Fitness may offer alternative warranties to purchasers of commercial equipment for limited-use commercial* or in- home use.** This policy ensures that customers who use commercial equipment for limited-use commercial or in-home use may receive alternative warranty coverage, provided they meet the specifi ed requirements. It’ s important to note that the specifi...

  • Page 37: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the specifi...

  • Page 38: Warranty Registration

    Complete the information below and mail to: TRUE Product Support base serial 865 Hoff Road number location St. Louis, MO 63366 TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA OURI 63366 U OURI 63366 MODEL NO: PLSXXXX O: PLSXX...
  • Page 40 1.800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-PLS1700 Owner’s Manual, Assembly Guide, and Warranty Card REV01 © 2024 TRUE Fitness All Rights Reserved...
