This document will provide very condensed instructions on powering up and configuring the onsemi NCP81278T Evaluation Board.
Description: The NCP81278T Evaluation Board (EVB) is a test vehicle for the family of Open Voltage Regulator (Open VReg)-
compatible devices. This family includes the NCP81272, NCP81278, NCP81272T, NCP81278D and NCP81278T. The devices feature
a PWM VID design and up to two phases in forced Constant Current Mode (FCCM) configuration, 1 phase in FCCM, 2 phases in Auto
discontinuous mode (Auto DCM) and one phase in Auto DCM, depending on the device part number.

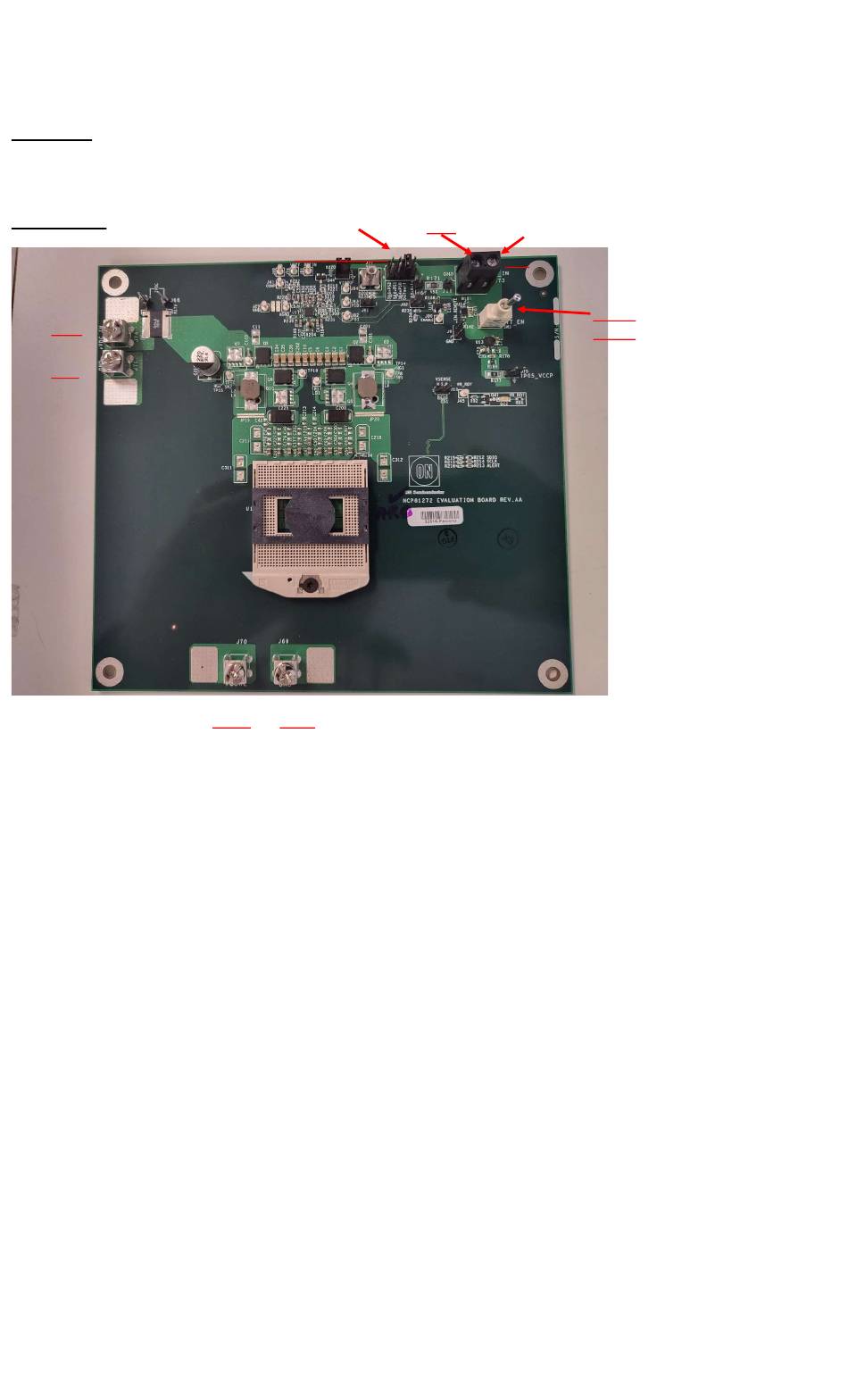

Photo of EVB:
