ON Semiconductor NCP6324B/C User Manual

3 mhz, 2 a, high efficiency, low ripple, adjustable output voltage, synchronous buck converter

Advertisement

Quick Links

NCP6324GEVB
NCP6324B/C Evaluation
Board User's Manual
3 MHz, 2 A, High Efficiency, Low Ripple,
Adjustable Output Voltage, Synchronous
Buck Converter

Overview

This document is a manual file for a demo board of the
NCP6324B/C, which includes demo board schematics, bill
of materials, PCB layout, jumper setup, and test procedure.

About NCP6324B/C

The NCP6324B/C, a family of synchronous buck
converters, which is optimized to supply different sub
systems of portable applications powered by one cell Li-ion
or three cell Alkaline/NiCd/NiMH batteries. The devices are
able to deliver up to 2 A on an external adjustable voltage
range from 0.6 V to 3.3 V. Operation with 3 MHz switching
frequency allows employing small size inductor and
capacitors. Input supply voltage feed-forward control is
employed to deal with wide input voltage range.
Synchronous rectification and automatic PWM/PFM power
save mode offer improved system efficiency. The
NCP6324B
is
in
a
2.0 × 2.0 × 0.75 mm WDFN−8 package.

Features

2.5 V to 5.5 V Input Voltage Range
External Adjustable Voltage
Up to 2 A Output Current
1uH
Vo = 0.6V to Vin
PGND
Cout
SW
Cfb
10uF
AGND
R1
FB
R2
(a) Power Good Output (NCP6324B)
© Semiconductor Components Industries, LLC, 2014
May, 2014 − Rev. 0
space
saving,
low
profile
NCP6324B
Vin = 2.5V to 5.5V
PVIN
Cin
Rpg
AVIN
10uF
1M
Power Good
MODE/
PG
Enable
EN

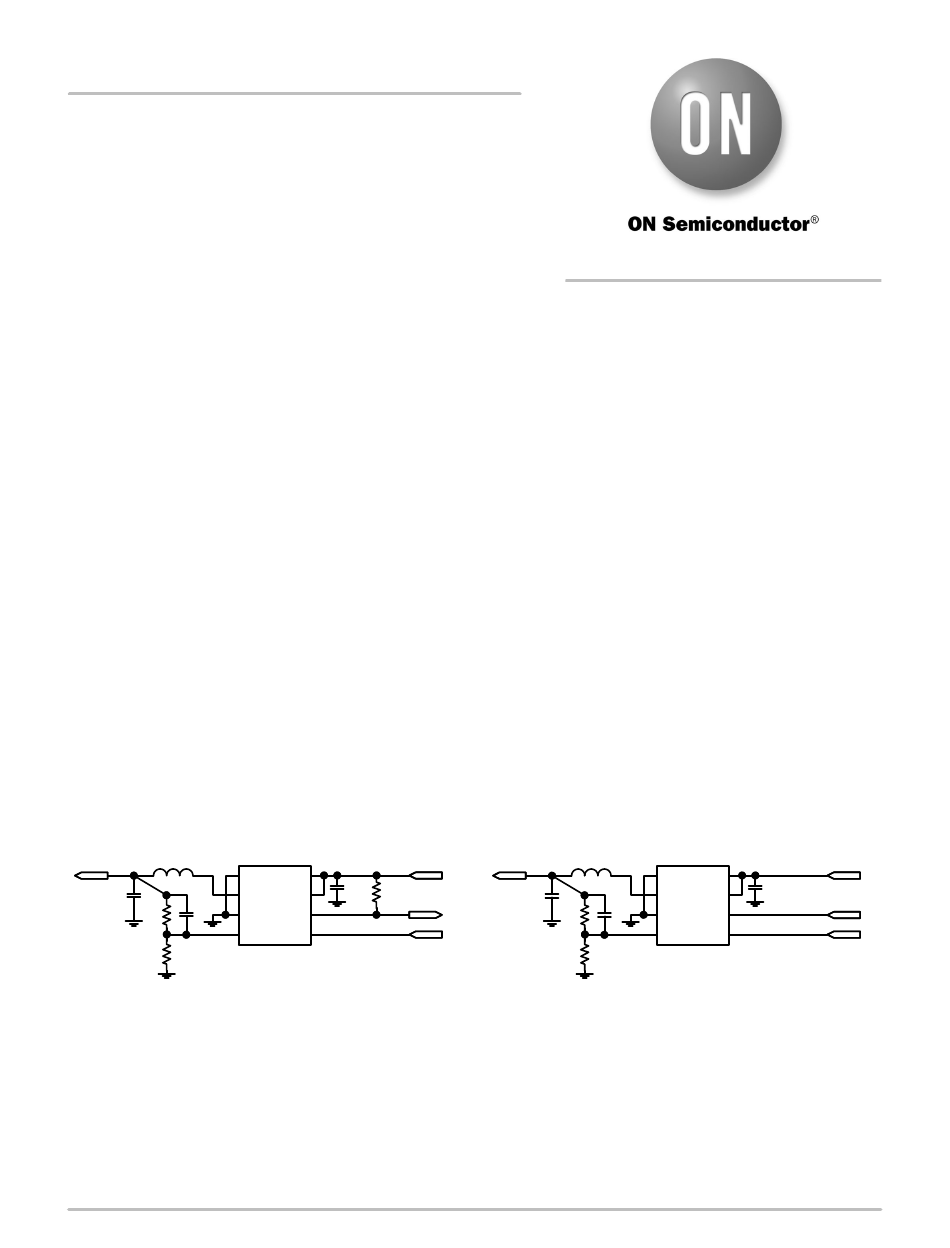

Figure 1. Typical Application Circuits
EVAL BOARD USER'S MANUAL
3 MHz Switching Frequency
Synchronous Rectification
Automatic Power Save or External Mode Selection
Enable Input
Power Good Output
Soft Start
Over Current Protection
Active Discharge When Disabled. Hi−Z Version
Available upon Request
Thermal Shutdown Protection
WDFN−8, 2 × 2 mm, 0.5 mm Pitch Package
Maximum 0.8 mm Height for Super Thin Applications

Typical Applications

Cellular Phones, Smart Phones, and PDAs
Portable Media Players
Digital Still Cameras
Wireless and DSL Modems
USB Powered Devices
Point of Load
Game and Entertainment System
1uH
Vo = 0.6V to Vin
Cout
10uF
Cfb
R1
R2
(b) External Mode Selection
(NCP6324C Available upon Request)
1
http://onsemi.com
NCP6324C
Vin = 2.5V to 5.5V
PGND
PVIN
Cin
SW
AVIN
10uF
MODE/
AGND
PG
Enable
FB
EN
Publication Order Number:
EVBUM2243/D
