Summary of Contents for Growatt NEXA 2000

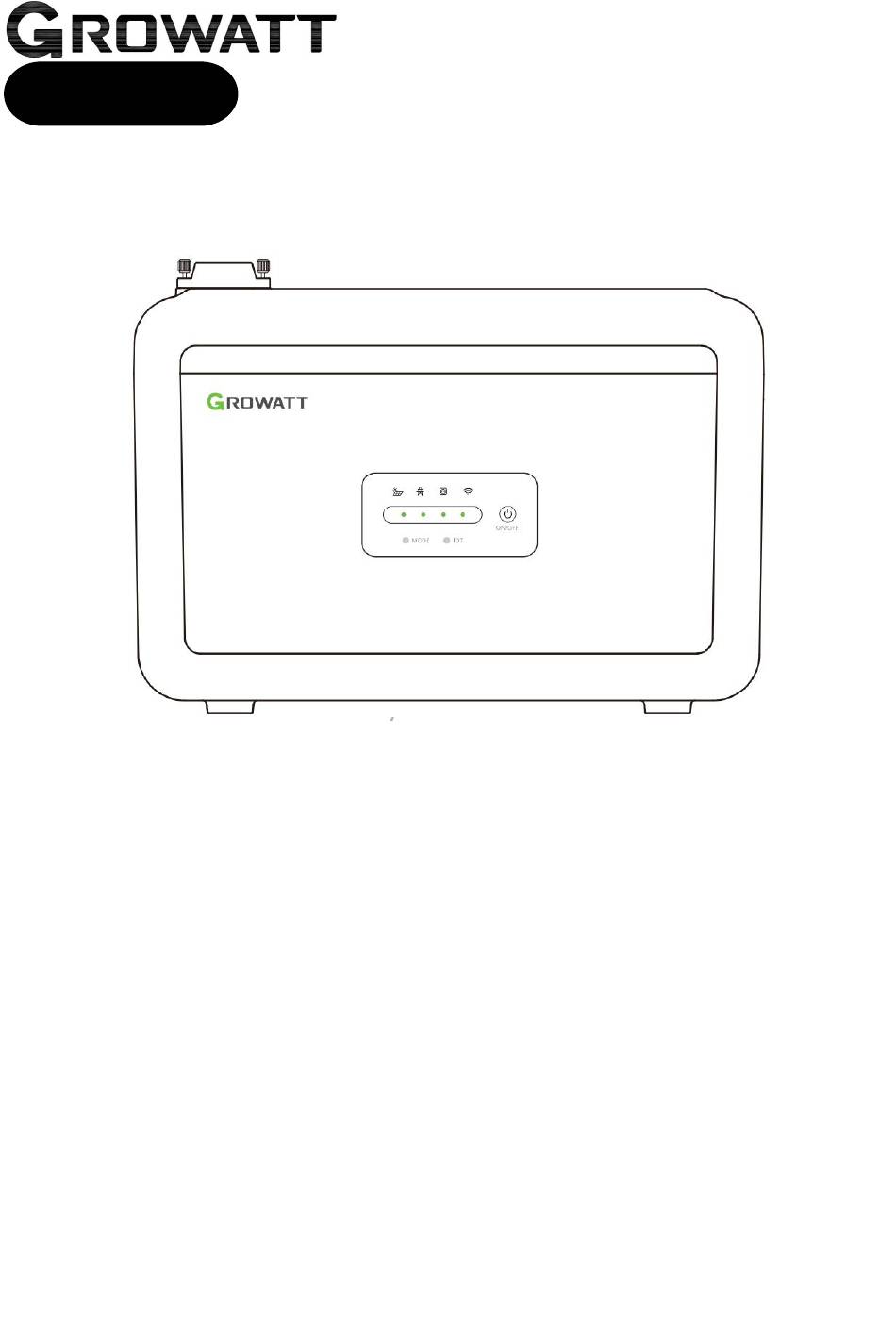

- Page 1 NEXA 2000 All-in-one Balcony Solar Storage User Manual 1. Keep it dry and do not place heavy objects on the NEXA 2000. Contact us 2. Do not dismantle, punch, shake, hit, or burn it. 3. Recycle and place NEXA 2000 according to local policies.
-
Page 2: Table Of Contents
Content Disclaimer ....................................2 Disposal Guide ..................................2 Safety Guidelines .................................. 2 Declaration of Conformity ..............................3 Specifications ..................................3 Packing List .................................... 5 Product Introduction ................................5 LED Panel ....................................6 Installation ..................................... 7 Installation Instructions ...............................7 On-grid Application ..............................8 Off-grid Application .............................. -
Page 3: Disclaimer
Users promise to be responsible for their actions and all consequences arising therefrom. Growatt is not responsible for any damage caused by using the product not in accordance with the document. -
Page 4: Declaration Of Conformity
2014/30/EU, 2014/53/EU & 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://growattportable.com/pages/download-center. Hereby, Shenzhen Growatt Power Technology Co., Ltd. declares that this device is in compliance with The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023. For the Statement of Compliance, visit the Web site https://growattportable.com/pages/download-center. - Page 5 Power Factor ＞0.99（-0.8~+0.8） Versatile AC Port AC Output 230VAC,50/60Hz,3.5A Max AC Output Power 800W Max AC Apparent Power 800VA Power Factor -0.8~+0.8 Battery Rated Capacity 2048Wh Battery Rated Voltage 51.2Vdc Max Charge Current Max Discharge Current Max Charging Power 2000W Max Discharging Power 800W Rechargeable Li-Ion Battery...
-
Page 6: Packing List
Packing List 1.NEXA 2000 Balcony Storage 2.Documentations (Disclaimer & Warranty & Quick Start Guide & APP Guide) 3.PV Input Extension Cable 4.On-grid Cable 5.Fix-Bracket 6.MC4 Withdrawal Tool 7.Plug-Cover Product Introduction 1.LED Panel 2.Versatile Port(Inverter In/Off-grid Out) 3.On-grid Port 4.PV Input Port 5.External Grounding Terminal... -
Page 7: Led Panel
LED Panel 1.Main Power Button: short press 1s to switch on; long press 3s to switch off; 2.IOT Button (WiFi-Bluetooth): -Short press 1s, IOT icon flashes, indicating pending connection status; -Press and hold for 3s to reset, the IOT icon flashes and then goes out, press 1s again to turn it on again and enter the pending connection state;... -
Page 8: Installation
Installation Installation Instructions • System Application Diagram • Space Required... -
Page 9: On-Grid Application
3. Connect NEXA 2000 to home-grid with On-grid Cable. Application 2：NEXA 2000+Solar Panel+EBM 1. Stack NEXA 2000 to EBM, Max 3 EBMs are recommended; 2. Connect PV Input Extension Cable to NEXA 2000; 3. Wiring solar panels with PV Input Extension Cable;... -
Page 10: Off-Grid Application
Off-grid Application Application 1：NEXA 2000(Only) 1. Connect the row plug to the NEXA 2000's VERSATILE AC PORT; 2. Connecting household appliances to the row plug. Application 2：NEXA 2000+Solar Panel+EBM 1. Stack NEXA 2000 to EBM, Max 3 EBMs are recommended;... -
Page 11: Other Tips
2. Insert the device's plug and secure Plug-Cover(Torque 1.5N·m) . Floor-Standing Install NEXA 2000 supports battery expasion with EBM stacked(Max 3 EBMs are recommended), Fix-bracket can be used to enhance stability as follows： 1. Install Fix-Bracket onto NEXA 2000/EBM(Torque 1.5N·m);... -
Page 12: How To Start
Wall-Hung Install NEXA 2000 supports Wall-Hung to minimize the use of balcony floor space. *This accessory Wall-Hung bracket is sold separately.* How To Start Power On / Off & Mode Setting 1.Short press the Main Power Button for 1 second to turn on; long press the main power button for 3 seconds to turn off. -
Page 13: Power Plus Function
You can use this function on APP, enable to set the maximum value of the On-grid output power, please use with caution. Connect ShinePhone APP Use the ShinePhone application to remotely monitor and control your NEXA 2000 All-in-one Balcony Solar Storage system. - Page 14 4.1 Find and enter the "Plant" page from the bottom menu. Click the "+" button in the upper right corner of the page, select "Add device", scroll down and choose "Balcony Solar Storage". 4.2 Click "NEXA 2000" and follow the instructions on the app to complete the remaining distribution steps and add it to the power plant.
- Page 15 Re-pair the product with a new mobile device: If the device is already bound to a mobile device, you need to press the device's IoT button for 3 seconds to unpair the product from the current device and then re-pair it with the new mobile device. Page Introduction 5.Page of your NEXA 2000 Balcony Solar Storage...
- Page 16 Set Operation Mode 6.Set Operation Mode 6.1 Click "Add time", add a time period, and select a work mode for that time period. Load First Mode: It is a setting that prioritizes the use of photovoltaic power to power the load. If the photovoltaic energy generated is more than the System Output Power you have set, the excess energy will be stored in the battery.
-
Page 17: Cold-Start
9. Export Limit Function: Can only be used when associated with a wireless meter. Enable to limit the feed power of NEXA 2000, with 0% meaning no feed to the grid and 10% meaning maximum feed to the grid of 10%. -
Page 18: Faq
-20°C, it takes 65 minutes to heat up to 5°C. If the NEXA 2000 is below 0°C and the photovoltaic input power is ≤140W, the photovoltaic energy is prioritized for battery heating. Q1:Does NEXA 2000 support simultaneous charging and discharging? Yes, the input/output ports of NEXA 2000 are different, allowing simultaneous charging and discharging. -
Page 19: Alert & Failure
NEXA 2000 from the solar panel. b.Press and hold the On/Off button for 1 second to switch off the power. c.After powering off the NEXA 2000, install the extended battery onto the NEXA 2000. d.Connect the solar panel for normal use. - Page 20 Battery Over Turn off the PV input and restart the product. If the problem persists after several Voltage attempts, please contact Growatt Customer Service. Protection Battery Charge Please move the product to a warmer spot or connect it to PV power before use.
- Page 21 Restart the product. If the problem persists after several attempts, please contact Growatt Customer Service. ISO Failure Grid Restart the product. If the problem persists after several attempts, please contact Disconnection Growatt Customer Service. Failure Restart the product. If the problem persists after several attempts, please contact Grid Frequency Growatt Customer Service.
