Growatt NEO 600-1000M-X Quick Installation Manual

1
. Overview
1.1

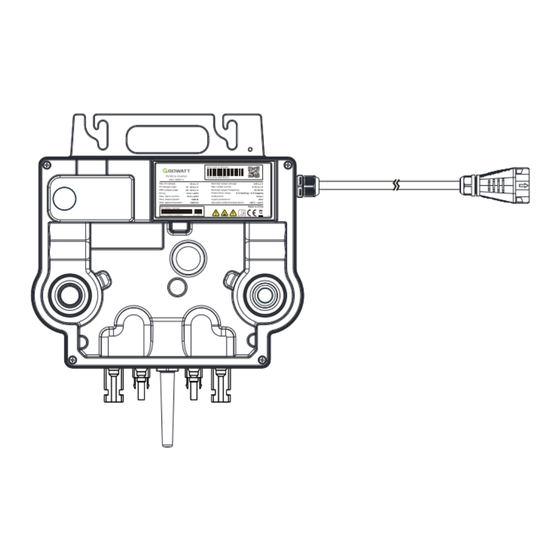

Microinverter Overview
A B
Note:
1.This document is intended for use as a quick installation guide. For details, please refer to the Installation and Operation Manual.
2.Growatt shall not be liable for any damage caused by improper operations.
1.2
System Overview
WiFi Booster
WiFi Router
1.3 Accessories
CC: 65114
C
D E
Monitoring System
Mobile Phone
CC: 65114
F G H
NOTE:
If the WiFi signal is weak, please install a WiFi booster at a
suitable position between the microinverter and the router.
Item
NOTE:
The PV extension cable and the AC adapter cable should be
prepared by the installer.
NEO 600-1000M-X Microinverter
Quick installation Guide
Item
A
B
C
D
E
F
G
H Grounding hole
Description
A PV Extension Cable
B AC Adapter Cable
C AC Cable Disconnect Tool
D Grounding screw(M4*6)
E Mounting screw (M8*22)
Description
AC cable
Heat sink
Antenna
PV terminal
LED
Back plate
Handle
