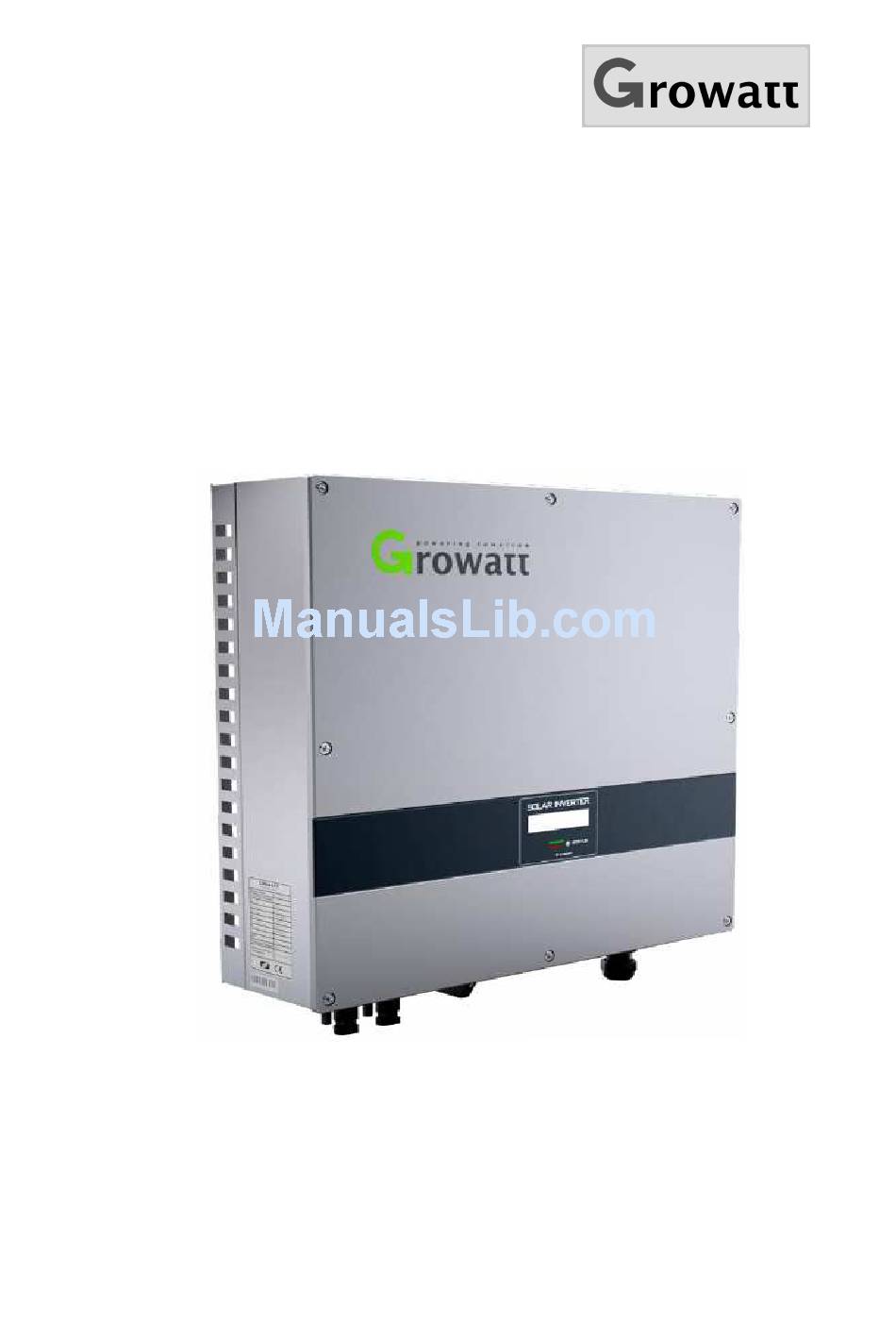

Page 1: Instruction Manual
Instruction Manual Growatt 2000 HF Growatt 2500 HF Growatt 3000 HF... - Page 2 Specifications are subject to change without notice. Every attempt has been made to make this document complete, accurate and up-to-date. Readers are cautioned, however, that Growatt reserves the right to make changes without notice and shall not be responsible for any damages, including indirect, incidental or consequential...
-
Page 3: Table Of Contents
8. INVERTER STATUS.......................20 9. COMMUNICATIONS ........................20 9.1 Communications software instructions ................20 9.2 Monitor ..........................21 9.3 Detailed information ......................21 10. TROUBLE SHOOTING......................21 11. SYSTEM FAULT........................21 12. INVERTER FAILURE......................22 13. SPECIFICATIONS ........................22 14. GROWATT FACTORY WARRANTY ..................24 15. WARRANTY CONDITIONS....................25 16. CONTACT ..........................26... -
Page 4: Notes On This Manual
Growatt 2500 HF Growatt 3000 HF This manual does not cover any details concerning equipment connected to the Growatt ( e.g. PV modules). Information concerning the connected equipment is available from the manufacturer of the equipment. 1.2 Target Group This manual is for qualified personnel. Qualified personnel have received training and have demonstrated skills and knowledge in the construction and operation of this device. -
Page 5: Safety
1.3 Safety Approprite Usage The Growatt is a PV Inverter that converts DC Current from PV generator into AC current. The Growatt is suitable for mounting indoors and outdoors. You can use the AC current gernerated as follows: Energy flows into the house grid. The consumers connected, for example, household devices or lighting, consume the energy. - Page 6 Front View Bottom View...
-
Page 7: Identifying Model And Basic Datasheet
2.2 Identifying model and basic datasheet You can identify the pv inverter by the type label. It is on the left side of the enclosure. The type of product (Type/Model) Device-specific characteristics. Certificates and approvals 3. UNPACKING AND INSPECTION After opening the package, please check the contents of the box. It should contain the following:... -
Page 8: Installation
Item Name Quantity Solar inverter Mounting frame Mounting screws Safety-lock screws Mounting frame screws sleeve AC socket AC socket assembly screws Installation & operation manual 4. INSTALLATION 4.1 Safety instructions Do not remove the casing. Inverter contains no user serviceable parts. Refer servicing to qualified service personnel. -
Page 9: Selecting The Installation Location
should be conducted by a qualified service personnel and must meet national requirement of AS/NZS 3000 Both AC and DC voltage sources are terminated inside the PV Inverter. Please disconnect these circuits before servicing. When a photovoltaic panel is exposed to light, it generates a DC voltage. When connected to this equipment, a photovoltaic panel will charge the DC link capacitors. -
Page 10: Fixed The Mounting On The Wall
4.3 Fixed the mounting on the wall Inverter requires adequate cooling space. Allow at least 20cm space above and below the inverter. Using the mounting frame as a template, drill 4 holes as illustrated in image... -
Page 11: Fixed The Inverter On The Wall
Fix the mounting frame as the figure shows. Do not make the screws to be flush to the wall. Instead, leave 2 to 4mm exposed. 4.4 Fixed the inverter on the wall Hang the inverter on the mounting frame. -
Page 12: Check Inverter Installation Status
Insert safety-lock screws to the bottom leg to secure the inverter. 4.5 Check Inverter Installation Status Check the upper straps of PV-Inverter and ensure it fits on to the bracket. Check the secure mounting of the PV-Inverter by trying to raise it from the bottom. -
Page 13: Electrical Connection
Utility: Referred to as “grid” in this manual, is the way your electric power company provides power to your place. Position Description PV modules DC load circuit breaker Growatt Inverter AC load circuit breaker... -
Page 14: Safety
Energy meter Utility grid 5.2 Safety The Growatt Inverter must be connected to the AC ground from the utility via the Ground Terminal (PE). 5.3 Connecting to the grid (AC utility) 5.3.1 GRID standards IMPORTANT: If several GROWATT are installed in a tree-phase AC GRID. it is recommended to distribute the inverters between the phases in order to reduce the power unbalances between the phases. -
Page 15: Connect To Pv Panel (Dc Input)
ARRAY ISOLATION! Under any condition! Make sure the maximum open circuit voltage (Voc) of each PV string is less than 600Vdc for Growatt 2000 HF,Growatt 2500 HF and The length of input wire must be less than 30m. Growatt 3000 HF. -
Page 16: Display And Messages
Connect to Grid Inverter State Power: xxxx.xW Inverter watt at working Fault State Error: System Fault Auto Test State Auto Testing Protection auto test Program State Programming Update Software While Growatt inverter is working, the first line will normally show Power status:... - Page 17 The Second line can change by knock on The Second Line Of LCD CYCLE DISPLAY DISPLAY TIME/S REMARK The inverter model The software version The Serial Number The energy today The energy all PV input watt The PV and Bus Voltage The grid system Enable auto test The enable auto test...
-
Page 18: Setting The Lcd Display
Set GRID standards Set GRID standards 6.3 Setting the LCD display Sound control can define the display language, luminance of the display, auto-test utility model choice. When the LCD is dark, Knock and double knock make it becomes bright. Knock to make it display next information or change the set situation. Double knock make the display stand for 30 second on 1-5. -
Page 19: Modes Of Operation
7. MODES OF OPERATION There are 3 different modes of operation. 7.1 Normal mode In this mode, Inverter works normally. Whenever the supplied power from PV panel is sufficient (voltage>150VDC), Inverter converts power to the grid as ，Inverter generated by the PV panel. If the power is insufficient(voltage<120VDC) enters a “waiting”... -
Page 20: Inverter Status
2. Waiting: When the PV string DC voltage is greater than 100V, Inverter enters “waiting” state and attempts to connect to the grid. 3. Normal operation: When PV string DC voltage is greater than 150V, Inverter operates in normal state. 8. -
Page 21: Monitor
1. Communicate with inverter by RS232 and Bluetooth. 2. Construct net with inverter, GRO monitor and Shine NET by RS232, Bluetooth and Internet. 3. Two Interfaces: Multi Inverter Interface and Wave Data Interface. 4. In Multi Inverter Interface: See at most 4 inverters working data at the same time, you can select your own compare inverters and parameters. -
Page 22: Inverter Failure
1. Check the open PV voltage, see if it is greater than or too close to 600Vdc for Growatt 1500 HF,Growatt 2000 HF and Growatt 3000 HF. 2. If PV voltage is less than 600Vdc for Growatt 1500 HF ,Growatt 2000 HF and Growatt 3000 HF, and the problem still occurs, please call local service. - Page 23 Start voltage 150V 150V 150V DC nominal voltage 360V 360V 360V PV range voltage 100V-600V 100V-600V 100V-600V Number of MPP trackers/strings per MPP tracker Max. input current /per string 12A/12A 15A/15A 15A/15A Output data Nominal AC output power 2000W 2500W 3000W Max.
-
Page 24: Growatt Factory Warranty
Yes/opt Yes/opt Yes/opt 14. GROWATT FACTORY WARRANTY This certificate represents a 5 year warranty for the Growatt inverter products listed below. Possession of this certificate validates a standard factory warranty of 5 years from the date of purchase. Warranted products... -
Page 25: Warranty Conditions
Liability The liability of Growatt in respect of any defects in its PV inverters shall be limited to compliance with the obligations as stated in these terms and conditions of warranty. -
Page 26: Contact
16. CONTACT If you have technical problems concerning our products, contact your installer or Growatt. During inquiring, please provide below information: Inverter type...
