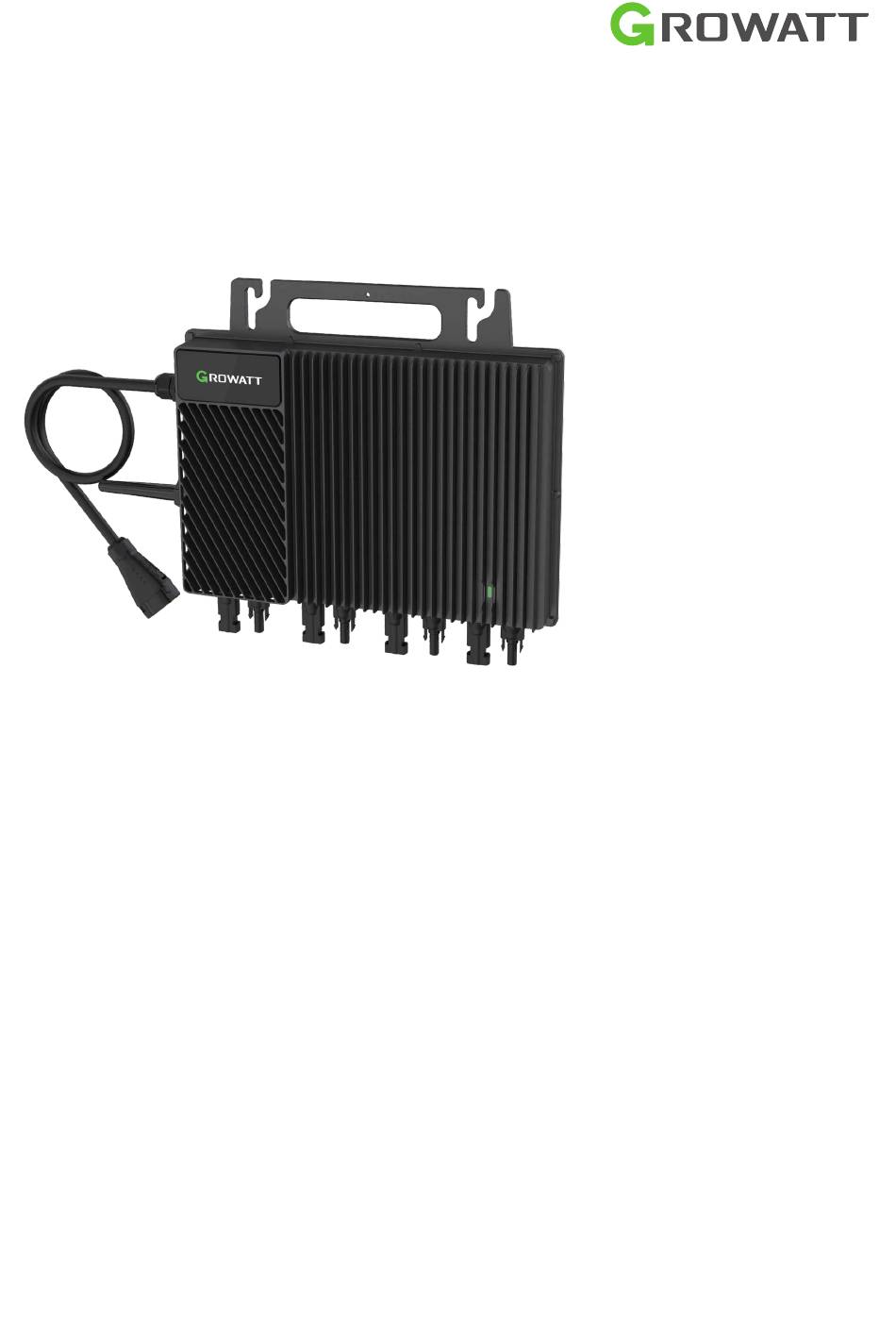

- Page 1 NEO 1200M-X NEO 1600M-X NEO 2000M-X Installation & Operation Manual...
- Page 2 Shenzhen Growatt New Energy Co., Ltd. Shenzhen Growatt New Energy Co., Ltd. (hereinafter referred to as Growatt) makes no representations, express or implied, with respect to this documentation or any of the equipment and/or software it may describe, including (with no limitation) any implied warranties of utility, merchantability, or fitness for any particular purpose.
-
Page 3: Table Of Contents
Notes on this manual ................1 1.1 Introduction ....................... 1 1.2 Target Group....................... 1 1.3 Additional information .................... 1 1.4 Symbols in this document..................1 1.4.1 Warning symbols in this document..............1 1.4.2 Markings on this product..................2 1.5 Radio Interference Statement................. 2 Safety ..................... - Page 4 Decommissioning ................25 7.1 Removing the Microinverter ................. 25 7.2 Packing theMicroinverter ..................25 7.3 Storage and Transportation .................. 25 7.4 Disposal ........................25 Technical Data ..................26 8.1 Specifications ......................26 8.2 DC connector info....................28 8.3 Torque........................28 9 Contact ....................
-
Page 5: Notes On This Manual
1.3 Additional information Find further information on special topics in the download area at en.growatt.com The manual and other documents must be stored in a convenient place and be available at all times. We assume no liability for any damage caused by failure to observe instructions specified in this document. -
Page 6: Markings On This Product
The inverter must not be disposed of with the household waste. 1.5 Radio Interference Statement Growatt Microinverters have been tested and found to comply with the CE EMC directives, designed to protect against harmful interference in a residential installation. However, if not properly installed and used in accordance with the manual, the Microinverter may cause harmful interference to radio communications, which can be determined by turning the equipment off and on. -
Page 7: Safety
Safety 2.1 Intended Use The NEO Microinverter converts the DC power generated by the photovoltaic (PV) modules to single-phase and grid-compliant AC power and feeds the energy to the grid. Working principle of a PV plant with the NEO Single-phase Microinverter Position Description PV modules... -
Page 8: Installation Warnings
DANGER Wait for 5 minutes before performing any operation. Persons with limited physical or mental abilities may only work Ø with the Growatt Microinverter following proper instructions and under constant supervision. Ensure that the Microinverter is inaccessible to children Ø... -
Page 9: Operation Warnings
2.6 Operation Warnings Ensure all connectors are sealed and secured during operation. Ø Some surfaces of the Microinverter may become hot during Ø operation. To reduce the risk of injury, do not touch the product while it is in operation. If an incorrect number of PV modules are connected in parallel, it Ø... -
Page 10: Product Description 3
Product description 3 3.1 Overview Position Description AC branch wire Antenna Heat sink PV terminal Back plate Grounding hole Handle 3.2 Nameplate The nameplate provides a unique identification of the Microinverter, including the model of the product and the device-specific characteristics. -
Page 11: Dimensions And Weight
3.3 Dimensions and weight 45mm 315mm 670mm 81mm Dimensions and weight Model Width Height (H) Depth (D) Weight NEO 1200-2000M-X 396 mm 300 mm 45mm 3.4 Highlights Peak output power up to 2000 W Ø Wide input voltage range: 16--60Vdc Ø... -
Page 12: Microinverter Installation 4
Ø Never install the inverter near sensitive devices, such as the radio, the telephone and the television. Ø Keep a safe distance of at least 20 cm from the Microinverter at all times. Growatt assumes no responsibility for compliance to EMC Ø regulations for the entire system. 4.2 Decisive Voltage Class (DVC) indicated for ports... -
Page 13: Ac Branch Circuit Capacity
4.4 Selection of the Over Current Protection Device and the Cable 1. Growatt NEO Microinverters can be connected using the 12 AWG or 10 AWG AC trunk cable and the AC trunk connector. The limits on the number of Microinverters on each AC branch shown below should be strictly adhere to. -
Page 14: Accessories
Cable suggestion length: Max.cable length Cable NEO 1200M-X NEO 1600M-X NEO 2000M-X 14AWG 16AWG 4.5 Accessories Position Description PV Extension Cable AC Trunk Cable (AWG 12/10) AC Trunk Connector AC Trunk End Cap AC Trunk Port Cap 2-in-1 Unlock Tool... - Page 15 WARNING not exceeded. We advise to install a RCD breaker only if it is required by the local electrical code. Growatt recommends the use of a type-A RCD breaker with a rated residual current over 100 mA. NOTICE The sequence can be changed based on your installation plan.
- Page 16 >20 mm >20 mm Reserve a clearance of at least 20 mm around the Microinverter to ensure sufficient space for ventilation and heat dissipation. NOTICE Step 1 Install the Microinverter a) Mark the location of the Microinverter on the rack with respect to the arrangement of the PV modules.
- Page 17 3. There are two ways to build an AC trunk cable: a) if an AC trunk cable with multiple AC trunk connectors is available, you can take out the segments of the AC trunk cable to make AC branch ; b) you can build an AC trunk cable with AC Trunk Connectors and cables.
- Page 18 3. Tighten all screws, and tighten the cap. Install the cover back to the Trunk connector. Joint Torque Screw Torque 2.5±0.5N·m 0.8±0.1N·m Click 4. Attach the AC trunk cable to the mounting rack and fix the AC Trunk Connector with tie wraps. Use the Male AC Sub Connector, which is applicable to the system with a single Ø...
- Page 19 b) Strip each cable to a length of 13 mm and crimp the E2508 cord end terminal with the hxagonal wire crimper. Assign the L, N and PE cable to the corresponding slots, then tighten the screws. E2508 35±3 13±1 c) Assemble the Connector.
- Page 20 Step 4. Complete the AC Connection 1. Connecting multiple Microinverters using the AC Trunk Connector. a) Push the Microinverter AC Sub Connector to the AC Trunk Connector. The connectors are coupled correctly when a click is heard. You can disconnect the AC Sub connector from the AC trunk connector using the removal tool.
- Page 21 2. Connecting a single Microinverter using the Male AC Sub Connector. Connect the female connector of the AC Branch Cable to the Male AC Sub Connector. Ensure that you hear the “Click” sound which indicates a reliable connection. Step 5. Create an Installation Map a) Peel the removable serial number label from each Microinverter.
- Page 22 b) Stick the serial number label on the diagram (found in the appendix), according to the layout on the roof. Step 6. Connect the PV Module If the DC cable is too short for installation, use the PV Extension Cable to connect PV modules to the NEO Microinverter, otherwise the PV terminals will be damaged.
- Page 23 Step 7. Power on the system a) Turn on the AC breaker of the branch circuit. b) Turn on the main AC breaker. The system will start generating power in about two minutes. Step 8. Set up the monitoring system Please refer to the ShineWeLink Configuration Guide or the NEO WiFi Quick Configuration Guide to set up the monitoring system.
-
Page 24: Troubleshooting 5
5.1 Error Messages An error message will be displayed on ShinePhone APP when a fault occurs. The faults can be divided into system faults and inverter faults. Please have the following information ready when contacting Growatt support: Serial number Ÿ... -
Page 25: Inverter Warnings
Warning: 223 must be more than 2KΩ. If the value is within the acceptable range and warning message persists, please contact your dealer or Growatt customer service. 1. Check the AC wiring, especially the neutral and ground wires. 300(1~3): Grid under- 2. -
Page 26: Inverter Faults
Wait until the ambient temperature is below 65°C and restart the inverter. If the error Error: 408 Over-temperature message persists, please contact your dealer or Growatt customer service. Please contact your dealer or Growatt Error: 416 Device failure customer service. Code Note... -
Page 27: Led Indicator Status
(on for 1s and off for 1s) The Microinverter is powered by PV modules. If the LED indicator is off, please check the DC side connection. If the connection is correct and the PV voltage is higher than 16V, contact your distributor or Growatt customer service. -
Page 28: Microinverter Replacement
5.6 Microinverter Replacement Ø Do not attempt to repair the Microinverter by yourself. Please contact your local customer service for technical support. Ø Never disconnect the PV connectors under load. Ensure that no current presents in the DC cables prior to disconnecting. Ø... -
Page 29: Warranty
The storage temperature should be always between -40℃ and +65℃. Keep the storage relative humidity lower than 95%. Ø After long-term storage, the local installer or personnel from Growatt service department should perform a comprehensive test before installation. 7.4 Disposal Do not dispose of faulty Microinverters or accessories together with household waste. -
Page 30: Technical Data 8
Technical Data 8 8.1 Specifications Model 1200 1600 2000 Specifications Input data(DC) Max. recommended PV 1.8k 2.4k power(for module STC) Max. DC voltage Start-up voltage Nominal voltage MPP voltage range 16-55V No. of MPP trackers No. of PV module per MPP 1/1/1 1/1/1/1 1/1/1/1... - Page 31 Model 1200 1600 2000 Specifications Overvoltage category PV:II AC:III Efficiency Max. efficiency 96.5% CEC efficiency MPPT efficiency 99.5% Protection DC reverse-polarity Integrated protection AC surge protection Type III AC short-circuit protection Integrated Grid monitoring Integrated Anti-islanding protection Integrated General data Dimensions (W/H/D) in mm 396/300/45 Weight...
-
Page 32: Dc Connector Info
All specifications are subject to change without notice. * The AC Voltage and Frequency Range may vary depending on specific country grid standard. * Growatt microinverter is available in two versions: WiFi and LoRa, make sure to select the appropriate version when purchasing. 8.2 DC connector info... -
Page 33: Contact
9 Contact Ø If you have technical problems with our products, contact the GROWATT Service Line or visit Growatt official website to leave a message. Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao'an District, Shenzhen, China service@growatt.com... - Page 34 Download Manual Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao'an District, Shenzhen, China service@growatt.com en.growatt.com For local customer support, please visit https://en.growatt.com/support/contact GR-UM-314-A-02 (PN:044.0113002)
