Growatt NEO 1600-2500M-X2 Quick Installation Manual
Growatt NEO 1600-2500M-X2 Quick Installation Manual

Growatt NEO 1600-2500M-X2 Quick Installation Manual

Microinverter

Advertisement

Quick Links

1.
Overview

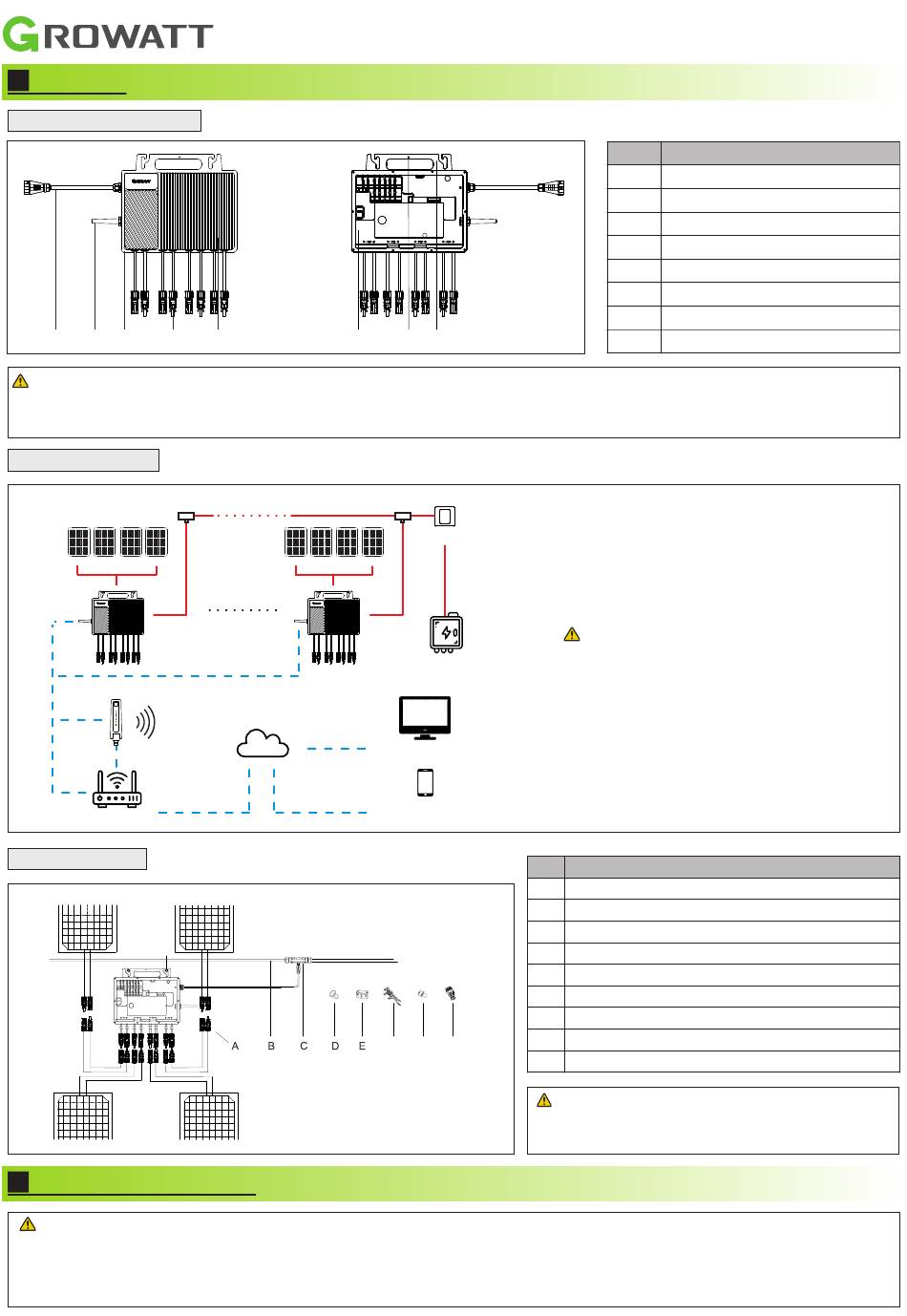

1.1
Microinverter Overview
A
B
C
D
Note:
1. This document is intended for use as a quick installation guide. For details, please refer to the User Manual.
2. Growatt shall not be liable for any damage caused by improper operations.
1.2
System Overview
Solar Panel
Micro Inverter
Datalogger
LoRa
WiFi
WiFi Router
1.3
Accessories
I
2.
Installation Procedures
NOTE:
1. The sequence can be changed based on your installation plan.
2. When crimping the the AC Trunk Cable, a hexagonal wire crimper must be used.
3. The Male AC Sub Connector can only be used in situations where the distance between the Microinverter and the grid
connection point is less than 15 meters.
E
F
Cloud Server
ShineServer Web
ShinePhone APP
G
H
AC Breaker
Distribution Panel
Item
A
B
C
D
E
F
G
H
F
G
H
I
NOTE:
All accessories listed above are not included in the
package and should be purchased separately.
NEO 1600-2500M-X2 Microinverter
Quick installation Guide
Item
A
B
C
D
E
F
G
Grounding hole
H
1. The NEO series Microinverters support LoRa
communication or communication via WiFi
connection.
2. For remote monitoring, the Microinverter with
integrated LoRa module should be connected
to ShineWeLink.
NOTE:
1. If the WiFi signal is weak, please install a WiFi
booster at a suitable place between the
microinverter and the router.
2. Position the ShineWeLink next to the router,
but maintain a minimum distance of 0.5m to
avoid distortion resulting from the
excessively strong signal.
3. Do not place the inverter, the router and
Welink on the same vertical line to avoid
affecting the signal strength.
Description
PV Extension Cable
AC Trunk Cable (AWG 12/10)
AC Trunk Connector
AC Trunk End Cap
AC Trunk Port Cap
AC Connector Unlock Tool
Grounding screw (M4*6)
Male AC Sub Connector
Mounting screw (M8*22)
Description
AC cable
Antenna
Heat sink
PV terminal
LED
Back plate
Handle
