Appendix B: Dimensions

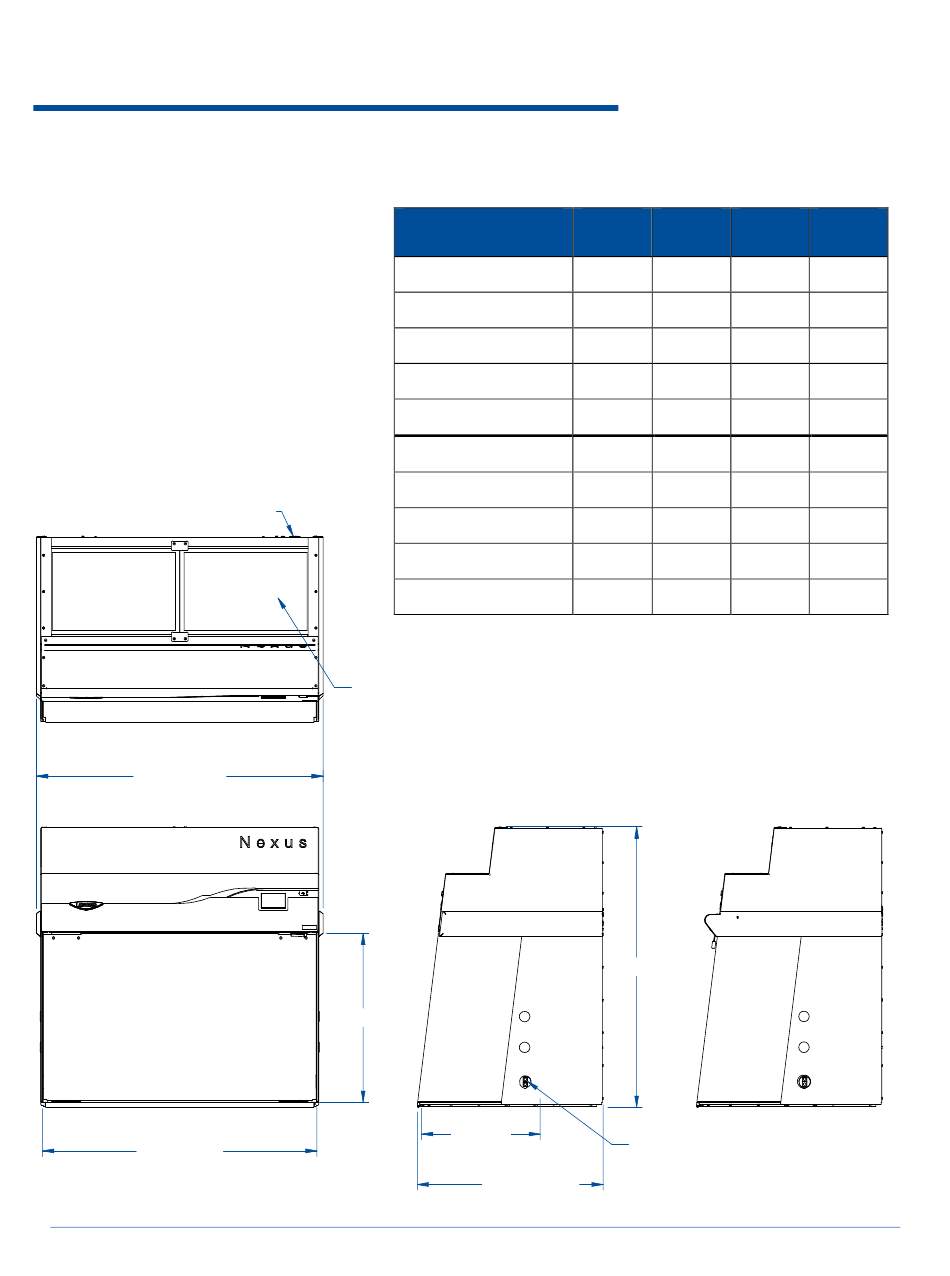

Table B-1 and Figure B-1 indicate the product dimensions. All dimensions shown in
inches (centimeters).
Figure B-1
Power Connection
Top View
A A
Overall Width Overall Width
Front View
B
Inside Width
Catalog Number
5330xxx (3')
5340xxx (4')
5350Xxx (5')
5360xxx (6')
5380xxx (8')
5331xxx (3' DP)
5341xxx (4' DP)
5351xxx (5' DP)
5361xxx (6' DP)
5381xxx (8' DP)
Prefilters
Side View
30.2
C
Working
Depth
D
Overall Depth
94
A B C
39.4"
37.0" 21.2"
51.4"
49.0" 21.2"
63.4"
61.0" 21.2"
75.4"
73.0" 21.2"
101.0"
98.6" 21.2"
39.4"
37.0" 26.2"
51.4"
49.0" 26.2"
63.4"
61.0" 26.2"
75.4" 73.0" 26.2"
101.0"
98.6" 26.2"
UV Shade Detail
50.1
Utility Port
(Both Sides)
Table B-1
D
33.2"
33.2"
33.2"
33.2"
33.2"
38.2"
38.2"
38.2"
38.2"
38.2"
Side View
