INSTRUCTION MANUAL
MT878
STUD, METAL & LIVE WIRE FINDER
& MULTIMETER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT878 and is the answer not in the manual?

Questions and answers

Summary of Contents for Major tech MT878

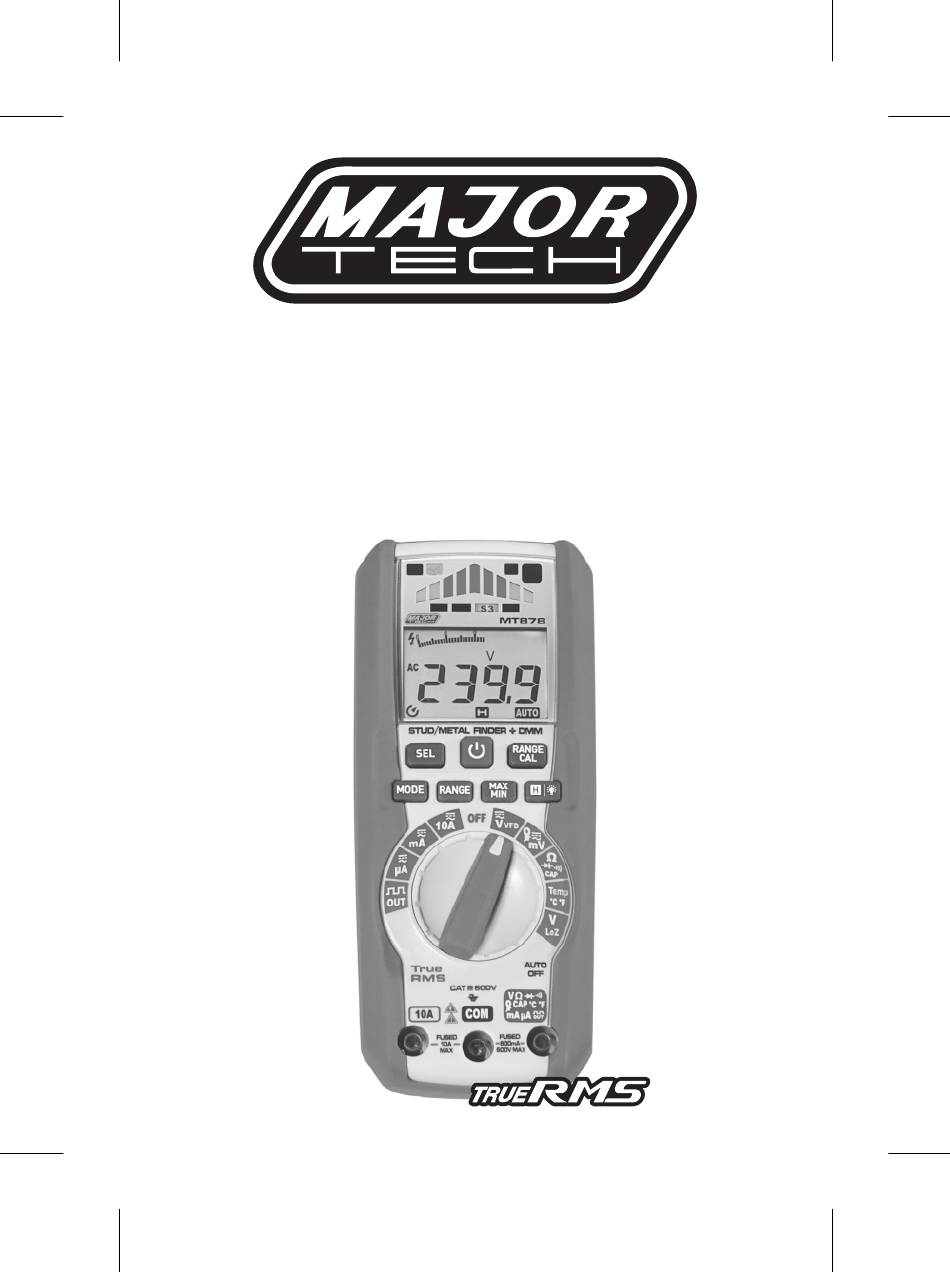

  • Page 1 INSTRUCTION MANUAL MT878 STUD, METAL & LIVE WIRE FINDER & MULTIMETER...
  • Page 3: Table Of Contents

    Page no Contents 1. Introduction ..................4 2. Safety ....................4 2.1. Warnings ................... 4 2.2. Input Limits.................4 2.3. International Safety Symbols............5 2.4. Safety Category Ratings..............5 2.5. Maintenance ................6 3. Description ..................6 3.1. Meter Description.................6 3.2. Symbols Used on LED Display (STUD/METAL Finder)......7 3.2.
  • Page 4: Introduction

    1. INTRODUCTION The MT878 is an auto ranging multimeter integrated with a Stud and Metal detector as well a NCV detector, being a useful tool for professionals across diverse industries. Quickly locates studs behind walls, pinpoint metal objects buried in surfaces, and safely detect AC wires with confidence. The DMM function makes it easy to measure AC Volts, DC Volts, AC and DC Current, Resistance, Temperature, Capacitance, Continuity and Diode Test.
  • Page 5: International Safety Symbols

    2.3. International Safety Symbols This symbol adjacent to another symbol, terminal or operating device indicates that the operator must refer to an explanation in the Operating Instructions to avoid personal injury or damage to the meter. This symbol adjacent to one or more terminals identifies them as being associated with ranges that may, in normal use, be subjected to particularly hazardous voltages.
  • Page 6: Maintenance

    Test Leads WARNING: Operation is limited to CAT II applications when the insulated tips are removed from one or both test probes. Refer to Input Limits section in this manual for maximum voltage ratings. 2.5. Maintenance This multifunction meter is designed to provide years of dependable service, if the following instructions are performed: 1.
  • Page 7: Symbols Used On Led Display (Stud/Metal Finder)

    Note: 1-LED display, 3-Functian select button, 4-0N/OFF button, 13- Calibration/Stud Range button and 14/15/16 only use in Stud/Metal/NCV detection, others for Multimeter. 3.2. Symbols Used on LED Display (STUD/METAL Finder) Metal detection Select range 1: 0 to ½" 10 to 13mm) Stud detection Select range 2: 0 to 1"...
  • Page 8: Stud/Metal Finder Operation

    4. STUD/METAL FINDER OPERATION 4.1. Operation Tips • Hold the tool straight up and down, parallel to the studs, and do not rotate the tool. Ÿ During the stud detection, the hand holding the meter cannot leave the meter surface or change its position on the meter. If your hand leaves the surface of the meter during the scanning, the test signal will be affected, the stud detection symbol will flash, and the meter will be reinitialized.
  • Page 9: Metal Detection

    • Range/CAL button: The calibration function only valid in the Metal/Stud detection mode, and the range setting is only valid in the stud detection mode. 4.3. Metal Detection • Metal detection has interactive calibration to adjust its sensitivity to metal, which can be used to find the precise location of metal objects in walls, floors, and ceilings.
  • Page 10: Stud Detection

    scanning area, repeat step B. This procedure can be repeated multiple times to narrow the field even further. Note: If the meter is directly placed on the metal surface for calibration, it will result in an error display, the metal symbol is always on, and other symbols flash, the beeper will beep.
  • Page 11: Ncv Detection

    Note: If the meter is directly placed on the metal or other material surface for calibration, it will result in an error display, the stud symbol is always on, and other symbols flash, the beeper will beep. Move the meter to another place and re-calibrate.
  • Page 12: Stud Finder Specifications

    4.6. Stud Finder Specifications Stud scanning range 0~1½"(38mm) through drywall Metal scanning range 0-3"(76mm) magnetic metal 0~1½"(38mm) non-magnetic metal Live AC Wires (without shielding) 0~2"(50mm) Result indication Multi-color LED display and buzzer 5. MULTIMETER OPERATION 5.1. Button Introduction 2 • MODE Button: Press the MODE key to select AC/DC Voltage, AC/DC Current, Frequency, duty cycle, Ohms, Diode Test, Continuity, Capacitance or Temperature.
  • Page 13: Operating Instruction

    MAX/MIN mode does not work on Frequency, Duty Cycle, Diode Test, Continuity, Square wave and Capacitance. • HOLD/ Backlight Button: Press the HOLD key to turn hold on or off. Hold down the Backlight key to turn the Backlight on or off. Note: Replace with a new 9V battery when the low battery symbol is displayed.
  • Page 14: Mv Voltage (Current Clamp) Measurements

    5.2.2. mV Voltage (Current Clamp) Measurements WARNING: Observe all safety precautions when working on live voltages. 1. Set the rotary function switch to AC/DC mV position . 2. To select AC or DC mV voltage, press the MODE button until the “ ”...
  • Page 15: Resistance Measurements

    4. For current measurements up to 4000uA AC/DC, set the rotary function switch to the uA position and Insert the red test lead into the Positive input jack. 5. Press the MODE button to select AC or DC current, the “ ”...
  • Page 16: Continuity Test

    4. Touch the test lead probes to the diode under test. 5. Forward voltage will indicate 0.4 to 0.7 on the LCD display. Reverse voltage will indicate "OL". Shorted devices will indicate near O and an open device will indicate "OL" in both polarities. 5.2.6.Continuity Test WARNING: Never test continuity on a live circuit.
  • Page 17: Temperature Measurements

    5.2.8. Temperature Measurements WARNING: Do not apply the temperature probe to live circuits. 1. Set the rotary function switch to the Temp °C °F position. 2. Press the MODE button to select readings in °F or °C. 3. Connect the Temp Probe to the Banana Plug Adapter.
  • Page 18: Square Wave Output

    5.2.10. Square Wave Output 1. Set the rotary function switch to the position. 2. Insert the black test lead banana plug into the negative COM jack, insert the red test lead banana plug into the positive V jack. 3. A simple waveform generator is needed for electronic experiments, with continuous square-wave signals output between red lead and black...
  • Page 19: Specifications

    8. SPECIFICATIONS 8.1. Multimeter Specifications 8.1.1. AC True RMS Voltage Range Resolution Accuracy ±(% of reading + digits) 40.00mV 0.01mV ±(0.9% + 9 digits) 400.0mV 0.1mV 4.000V 0.001V ±(1.2% + 3 digits) 40.00V 0.01V 400.0V 0.1V ±(1.2% + 5 digits) 600V All AC voltage ranges are specified from 5% of range to 100% of range.
  • Page 20: Ac True Rms Current

    8.1.4. AC True RMS Current Range Resolution Accuracy ±(% of reading + digits) 400.0uA 0.1uA 4000uA (1.0% + 5 digits) 40.00mA 0.01mA 400.0mA 0.1mA ±(1.2% + 8 digits) 4.000A 0.001A ±(2.0% + 3 digits) 10.00A 0.01A ±(2.0% + 5 digits) All AC Current ranges are specified from 5% of range to 100% of range.
  • Page 21: Capacitance

    8.1.7. Capacitance Range Resolution Accuracy ±(% of reading + digits) 99.99nF 0.01nF ±(3.5% + 40 digits) 999.9nF 0.1nF ±(3.0% + 5digits) 9.999uF 0.001uF 99.99uF 0.01uF ±(3.5% + 5 digits) 999.9uF 0.1uF 9.999mF 0.001mF ±(4.0% + 10 digits) 99.99mF 0.01mF ±(5.0% + 20 digits) 8.1.8.
  • Page 22: General Specifications

    8.2. General Specifications Function Range Insulation Class 2, Double Insulation Diode Test Test current approx. 1mA open circuit voltage of 3V typical Continuity Test Audible signal if the resistance is <50Ω Low Battery Indication “ ” is displayed Display 4000 counts backlit LCD with bargraph Over Range Indication “OL”...
  • Page 23: Warranty

    Ÿ Normal wear and tear of mechanical components Ÿ Failures caused by use outside the product's specifications Ÿ Any product which, in the opinion of Major Tech, has been misused, contaminated, or damaged due to neglect. Check Procedure Prior to contacting Major Tech or a distributor regarding a warranty claim, please check the following: Ÿ...
  • Page 24 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
