INSTRUCTION MANUAL
MT800

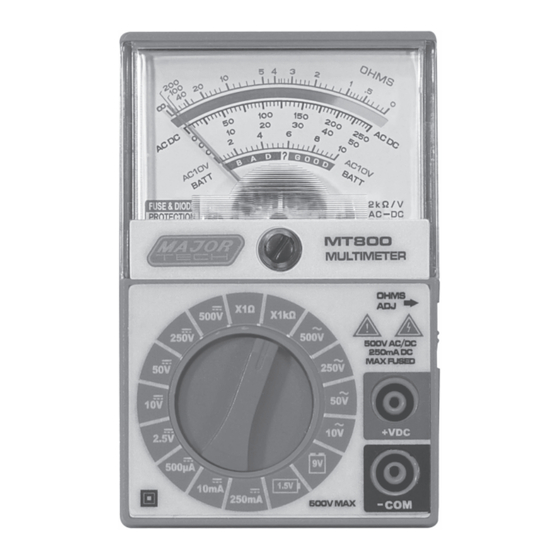

ANALOGUE MULTIMETER

Advertisement

Table of Contents
loading

Related Manuals for Major tech MT800

Summary of Contents for Major tech MT800

  • Page 1 INSTRUCTION MANUAL MT800 ANALOGUE MULTIMETER...
  • Page 3 Contents Page no 1. Introduction...................4 2. Specifications.................4 3. Controls and Functions..............4 4. Tips for using your Multimeter............5 5. Test Leads..................5 6. Battery Installation.................5 7. Operation..................5 8. DC/AC Voltage Measurements............6 9. DC Current Measurements...............6 10. Resistance Measurements...............6 11. Note for Testing Semiconductor Junctions..........6 12.

  • Page 4: Specifications

    1. INTRODUCTION The MT800 multimeter is designed to measure AC and DC voltage, DC current, and resistance with accuracy and ease. It can also be used as a battery tester for 1.5V and 9V batteries. The meter circuit incorporates a fuse to protect the delicate meter and other internal parts in case of inadvertent overload or improper function selection.

  • Page 5: Test Leads

    WARNING: Use with extreme caution. Follow all safe guards suggested in the manual in addition to normal safety precautions. Do not use this meter if you are unfamiliar with electrical circuits and testing procedures. 4. TIPS FOR USING YOUR MULTIMETER When using this tester, pay particular attention to polarities and check positive and negative points.

  • Page 6: Dc/Ac Voltage Measurements

    8. DC/AC VOLTAGE MEASUREMENTS WARNING: Use extreme care when making measurements for high voltage. Do not touch terminals or probe ends. 1. Plug the test leads into the correct jacks (black into '-' and red into '+') 2. Set range switch to one of the DCV/ACV positions. If you are not certain about the voltage level, start with 500V range.
  • Page 7 12.REPLACEMENT OF FUSE WARNING: To avoid electric shock, disconnect measuring terminals before removing fuse. CAUTION: for continued protection against fire, replace only with 0.3A, 250V fuse. 1. Use a phillips screwdriver to remove the screw on the back cabinet. Pull apart the front and back cabinets.
