Summary of Contents for BAFANG DP C250.CAN BUS

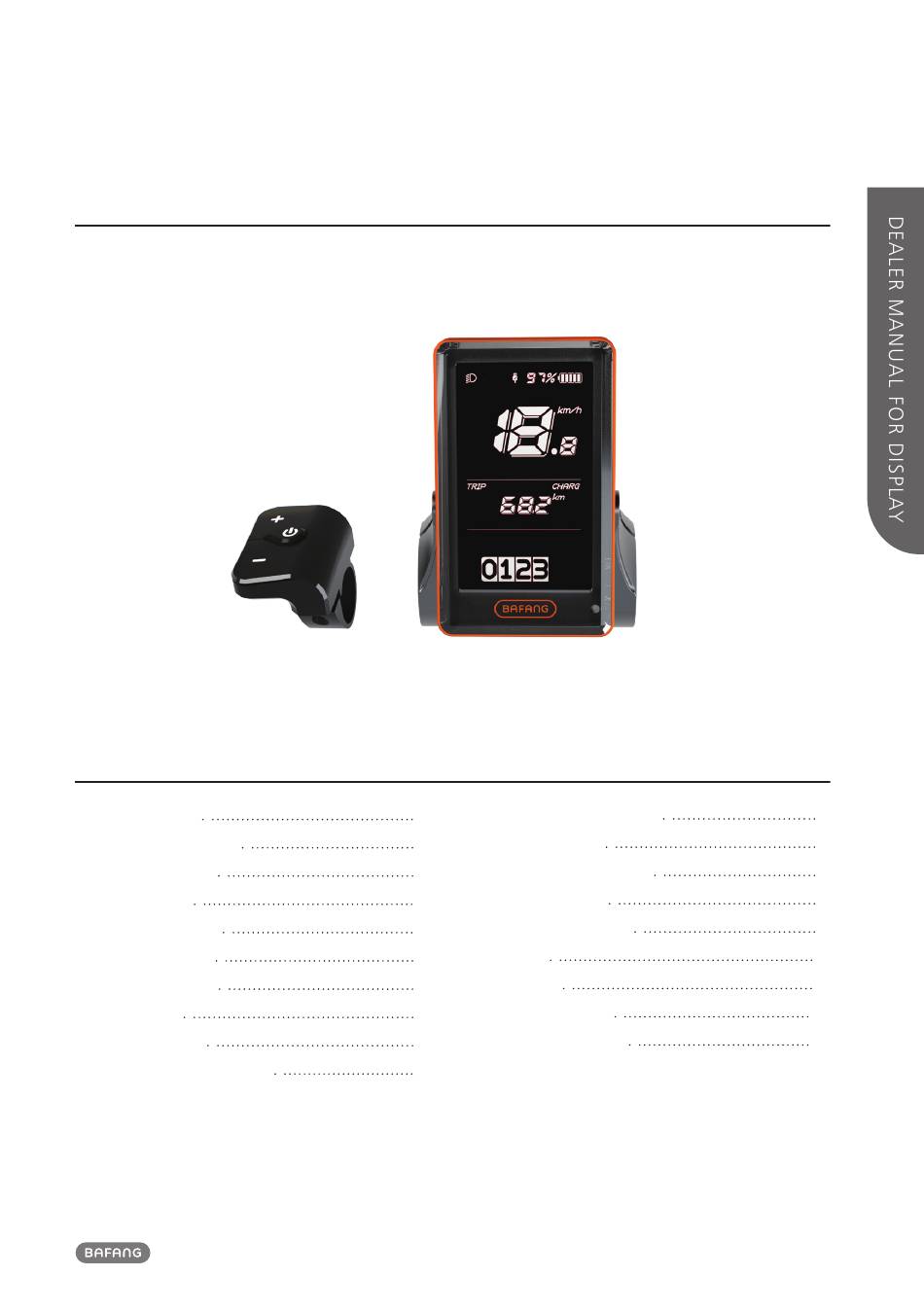

  • Page 1: Table Of Contents

    7 DEALER MANUAL FOR DP C250.CAN CONTENT 7.1 Important Notice 7.7.2 Selection of Support Levels 7.2 Introduction of Display 7.7.3 Selection Mode 7.3 Product Description 7.7.4 Headlights / backlighting 7.7.5 Walk Assistance 7.3.1 Specifications 7.7.6 USB Charge Function 7.3.2 Functions Overview 7.8 Settings 7.4 Display Installation 7.5 Display Information...
  • Page 2: Important Notice

    • Do not clean the display with a steam jet, high-pressure cleaner or water hose. 7.2 INTRODUCTION OF DISPLAY • Model: DP C250.CAN BUS • The label marking is as follows: • The housing material is PC, aluminum edge and high strength glass, as following: Note: Please keep the QR code label attached to the display cable.
  • Page 3: Product Description

    7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Speed display (including speed in real time • Operating temperature: -20℃~45℃ (SPEED), top speed (MAXS) and average • Storage temperature: -20℃~50℃ speed (AVG)) • Waterproof: IP65 • Switching between km and miles •...
  • Page 4: Display Installation

    7.4 DISPLAY INSTALLATION Open the clamps of display and insert Open the clamp on the controller pad the rubber rings on the handlebar. (it and place it in the correct position (it is is suitable for handlebar: ∮22.2 or suitable for handlebar: ∮22.2 mm) ∮31.8 mm) Using a M2.5 screw tighten the controller pad onto the handlebar.
  • Page 5: Display Information

    7.5 DISPLAY INFORMATION Error code indicator. Menu. Speed indicator. Key card indicator. Mileage indicator, Daily kilometers (TRIP) - Total kilometers (ODO). Data: Display data, which corresponds to the current mode. Remaining distance (RANGE). Energy Consumption (CALORIES - only with torque sensor fitted) Walking assistance Service: please see the service section.
  • Page 6: Normal Operation

    7.7 NORMAL OPERATION 7.7.1 Switching the System ON/OFF Press and hold (>2S) on the display to turn on the system. Press and hold (>2S) again to turn off the system. If the "automatic shutdown time" is set to 5 minutes (it can be set with the "Auto Off" function, See "Auto Off"), the display will automatically be turned off within the desired time when it is not in operation.
  • Page 7: Headlights / Backlighting

    7.7.4 Headlights / backlighting Hold the (>2S) button to activate the headlight and taillights. Hold the (>2S) button again to turn off the headlight. The brightness of the backlight can be set in the display settings "Brightness". (If the display /Pedelec is turned on in a dark environment, the display backlight/ headlight will be turned on automatically.
  • Page 8: Walk Assistance

    7.7.5 Walk Assistance 7.7.6 USB Charge Function The Walk assistance can only be activated If an external USB device is connected to the with a standing pedelec. Activation: Briefly display, the icon appears, the device will press (<0.5S) the button until to level be charged.
  • Page 9: Settings

    7.8 SETTINGS After the display is turned on, press and hold the (>1S) button, to access the ‘MENU’setting page, if press and hold (>2S) the (<0.5S) button, you can select: Display Settings, Information or EXIT. Then press the (>1S) button again, it can be return to the main page.
  • Page 10 the display (as shown below). And then press to increase or to reduce (light press to increase or to reduce (Auto sensitivity for 0-5). Chose 0 means turn off Off for 1-9minute). the light sensitivity. Once you have chosen your desired selec- Once you have chosen your desired selec- tion, press (<0.3S) the button to save...
  • Page 11: View Information

    7.8.2 View Information 7.8.2.3 Vibration setting When the system is turned on, press and All data in this item cannot be changed, only hold the (>1S) button to access to be viewed. the “MENU” setting page, repetitively press 7.8.2.1 Wheel size button until the “bS1”...
  • Page 12 7.8.2.5 Controller hardware info 7.8.2.7 Display hardware info When the system is turned on, press and When the system is turned on, press and hold the (>1S) button to access hold the (>1S) button to access the “MENU” setting page, repetitively press the “MENU”...
  • Page 13 7.8.2.9 BMS hardware info When the system is turned on, press and hold the (>1S) button to access the “MENU” setting page, repetitively press the button until the “bHc (BMS Hardware check)” appears on the display (as shown below). Once you have chosen your desired selec- tion, press (<0.3S) the button to save and enter next item "Sensor software info".
  • Page 14 7.8.2.12 Battery info Code Code Definition Unit When the system is turned on, press and Max Uncharge Time Hour hold the (>1S) button to access the “MENU” setting page, repetitively press Last Uncharge Time Hour button until the “b01” appears on The number of cell the display.
  • Page 15: Error Code Definition

    7.9 ERROR CODE DEFINITION The HMI can show the faults of Pedelec. When a fault is detected, the icon will appear on the display and one of the following error codes will be indicated too. Note: Please read carefully the description of the error code. When the error code appears, please first restart the system.
  • Page 16 Error Declaration Troubleshooting 1. Check all connectors from the battery are correctly connected to the motor. Error with the temperature sensor inside of the battery 2. If the problem still occurs, please change the Battery. 1. Allow the pedelec to cool down and restart the The protection temperature system.
  • Page 17 Error Declaration Troubleshooting 1. Check that all connections are connected correctly. 2. Please connect the pedelec to the BESST system to see if speed signal can be read by the BESST tool. Speed signal of the torque 3. Change the Display to see if the problem is solved. sensor has an error 4.
  • Page 18 Error Declaration Troubleshooting Using the BESST tool update the controller to see if WDT circuit is faulty this resolves the problem. If not, please change the controller or contact your supplier. Total voltage from the battery is Please change the battery. too high Total voltage from the battery is Please Charge the battery.
