SuperServer SYS-112C-TN: Motherboard Connections, Jumpers, and LEDs

VROC RAID Key Header

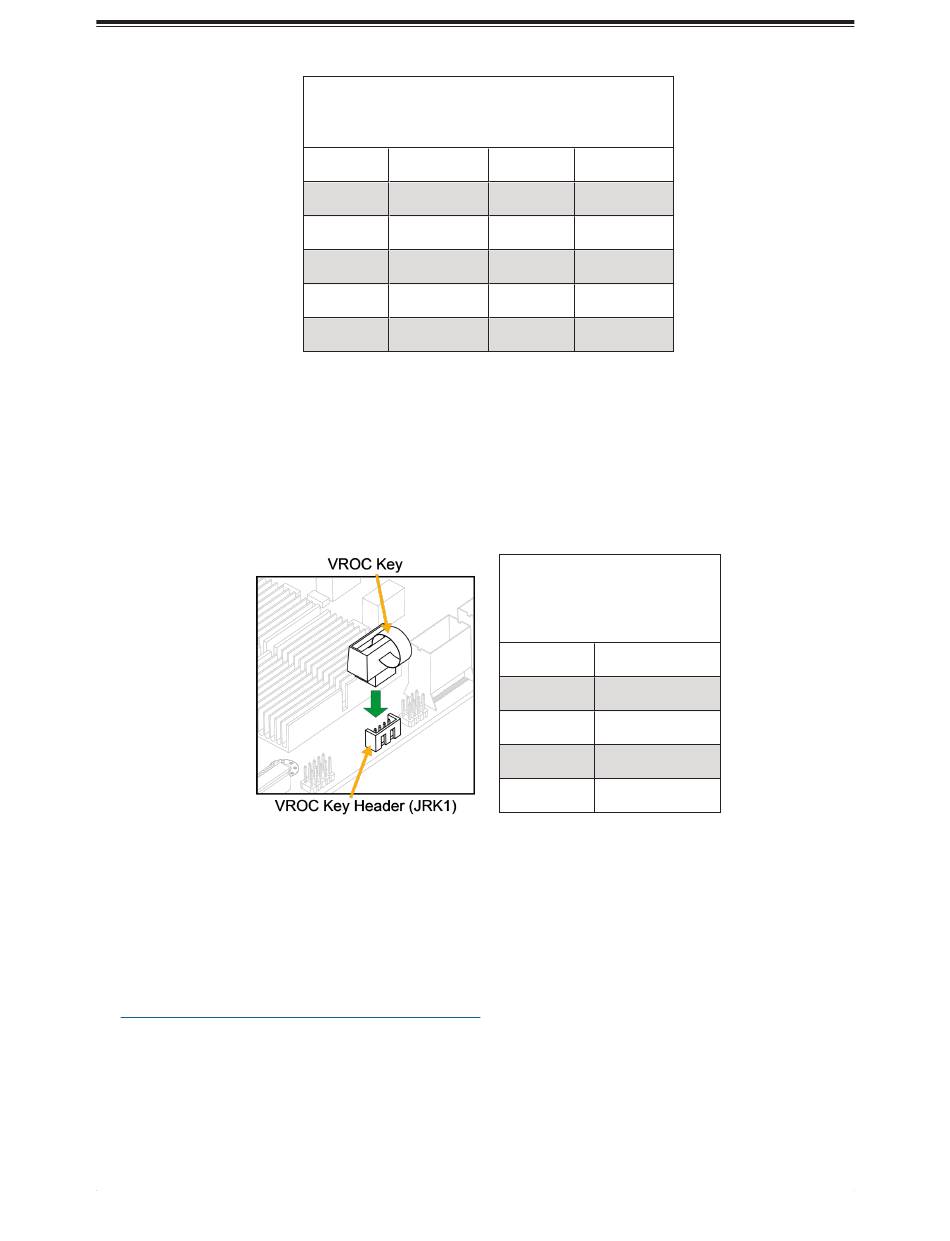

A VROC RAID Key header is located at JRK1 on the X14SBHM motherboard. Install a VROC
RAID key on JRK1 for NVMe RAID support as shown in the illustration below.
For a detailed diagram of the X14SBHM motherboard, see the layout under
Quick Reference" on page
Note: Images displayed are for illustrative purposes only. The components installed in your
system may or may not look exactly the same as the graphics shown in the manual.
Note: For detailed instructions on how to configure VROC RAID settings, refer to the VROC
RAID Configuration User's Guide posted on the web page under the following link:
https://www.supermicro.com/support/manuals.

Power Supply and Power Connections

For information about the power connections of the SYS-112C-TN server, refer to the following
content.
JUSB1 (USB 3.2 Gen 1) Type-A Connector
Pin Definitions: 9 Total
Pin# Definition
1 +5 V
2 USB_N
3 USB_P
4 GND
23.
86
Pin# Definition
5 SSRX-
6 SSRX+
7 GND
8 SSTX-
9 SSTX+
Intel VROC Key
Pin Definitions:
Four Total
Pin# Definition
1 GND
2 +3.3 V Standby
3 GND
4 CPU RAID Key
