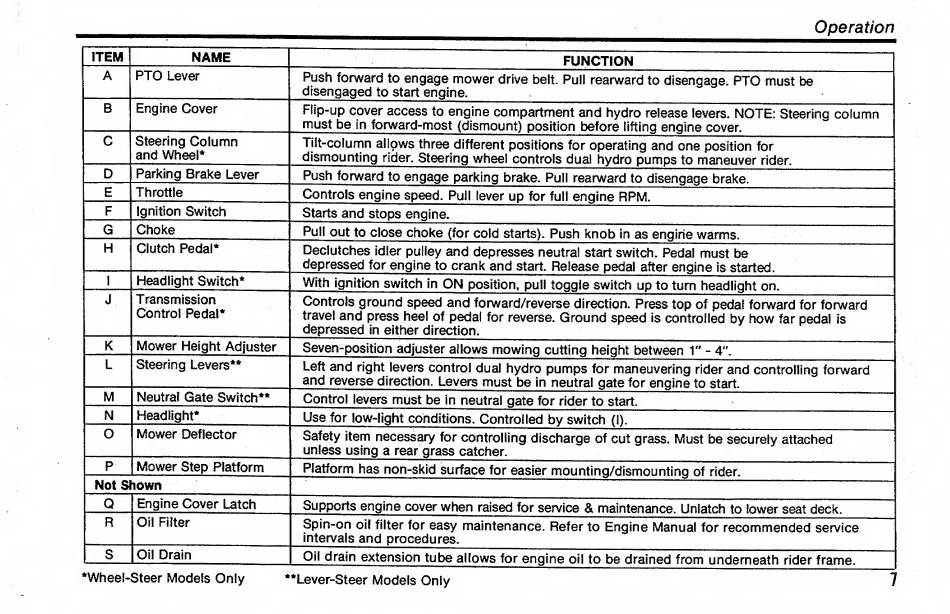

Simplicity CFC Series Operator's Manual page 9

Operation
ITEM
NAME
FUNCTION
H
PTO Lever
Push forward to engage mower drive belt. Pull rearward to disengage. PTO must be
disengaged to start engine.
B Engine Cover
Flip-up cover access to engine compartment and hydro release levers. NOTE: Steering column
must be in forward-most (dismount) position before lifting engine cover.
C Steering Column
and Wheel*
Tilt-column allows three different positions for operating and one position for
dismounting rider. Steering wheel controls dual hydro pumps to maneuver rider.
D Parking Brake Lever
Push forward to engage parking brake. Pull rearward to disengage brake.
E Throttle
Controls engine speed. Pull lever up for full engine RPM.
F Ignition Switch
Starts and stops engine.
G Choke
Pull out to close choke (for cold starts). Push knob in as engine warms.
H Clutch Pedal*
Declutches idler pulley and depresses neutral start switch. Pedal must be
depressed for engine to crank and start. Release pedal after engine is started.
■Di
Headlight Switch*
With ignition switch in ON position, pull toggle switch up to turn headlight on.
■
Transmission
Control Pedal*
Controls ground speed and forward/reverse direction. Press top of pedal forward for forward
travel and press heel of pedal for reverse. Ground speed is controlled by how far pedal is
depressed in either direction.
Mower Height Adjuster
Seven-position adjuster allows mowing cutting height between 1" - 4".
H
Steering Levers**
Left and right levers control dual hydro pumps for maneuvering rider and controlling forward
and reverse direction. Levers must be in neutral gate for engine to start.
M
Neutral Gate Switch**
Control levers must be in neutral gate for rider to start.
N
Headlight*
Use for low-light conditions. Controlled by switch (I).
0 Mower Deflector
Safety item necessary for controlling discharge of cut grass. Must be securely attached
unless using a rear grass catcher.
P
Mower Step Platform
Platform has non-skid surface for easier mounting/dismounting of rider. I
Not Si liown
Q Engine Cover Latch
Supports engine cover when raised for service & maintenance. Unlatch to lower seat deck.
R Oil Filter
Spin-on oil filter for easy maintenance. Refer to Engine Manual for recommended service
intervals and procedures.
S Oil Drain
Oil drain extension tube allows for engine oil to be drained from underneath rider frame.
"Lever-Steer Models Only
'Wheel-Steer Models Only
