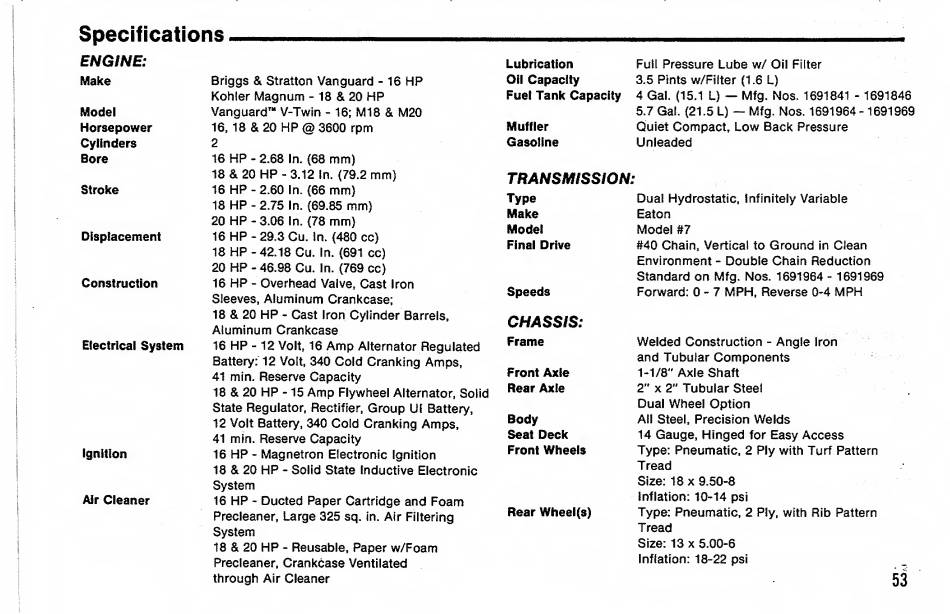

Specifications
ENGINE:
Make Briggs & Stratton Vanguard - 16 HP
Kohler Magnum - 18 & 20 HP
Model Vanguard™ V-Twin - 16; M18 & M20
Horsepower 16,18&20HP@ 3600 rpm
Cylinders
2
Bore 16 HP - 2.68 In. (68 mm)
18 & 20 HP - 3.12 In. (79.2 mm)
Stroke 16 HP - 2.60 In. (66 mm)
18 HP - 2.75 In. (69.85 mm)
20 HP-3.06 In. (78 mm)
Displacement 16 HP - 29.3 Cu. in. (480 cc)
18 HP-42.18 Cu. In. (691 cc)
20 HP - 46.98 Cu. In. (769 cc)
Construction 16 HP - Overhead Valve, Cast Iron
Sleeves, Aluminum Crankcase:
18 & 20 HP - Cast Iron Cylinder Barrels,
Aluminum Crankcase
Electrical System 16 HP -12 Volt, 16 Amp Alternator Regulated
Battery: 12 Volt, 340 Cold Cranking Amps,
41 min. Reserve Capacity
18 & 20 HP -15 Amp Flywheel Alternator, Solid
State Regulator, Rectifier, Group Ul Battery,
12 Volt Battery, 340 Cold Cranking Amps,
41 min. Reserve Capacity
Ignition 16 HP - Magnetron Electronic Ignition
18 & 20 HP - Solid State Inductive Electronic
System
Air Cleaner 16 HP - Ducted Paper Cartridge and Foam
Precleaner, Large 325 sq. in. Air Filtering
System
18 & 20 HP - Reusable, Paper w/Foam
Precleaner, Crankcase Ventilated
through Air Cleaner
Lubrication Full Pressure Lube w/ Oil Filter
Oil Capacity 3.5 Pints w/Fiiter (1.6 L)
Fuel Tank Capacity 4 Gal. (15.1 L) — Mfg. Nos. 1691841 - 1691846
5.7 Gal. (21.5 L) — Mfg. Nos. 1691964-1691969
Muffler Quiet Compact, Low Back Pressure
Gasoline Unleaded
TRANSMISSION:
Type Dual Hydrostatic, Infinitely Variable
Make Eaton
Model Model #7
Final Drive #40 Chain, Vertical to Ground in Clean
Environment - Double Chain Reduction
Standard on Mfg. Nos. 1691964 - 1691969
Speeds Forward; 0-7 MPH, Reverse 0-4 MPH
CHASSIS:
Frame Welded Construction - Angle iron
and Tubular Components
Front Axle 1-1/8" Axle Shaft
Rear Axle 2" x 2" Tubular Steel
Dual Wheel Option
Body All Steel, Precision Welds
Seat Deck 14 Gauge, Hinged for Easy Access
Front Wheels Type: Pneumatic, 2 Ply with Turf Pattern
T read
Size: 18 x 9.50-8
Inflation: 10-14 psi
Rear Wheels) Type: Pneumatic, 2 Ply, with Rib Pattern
Tread
Size: 13 x 5.00-6
Inflation: 18-22 psi
53
