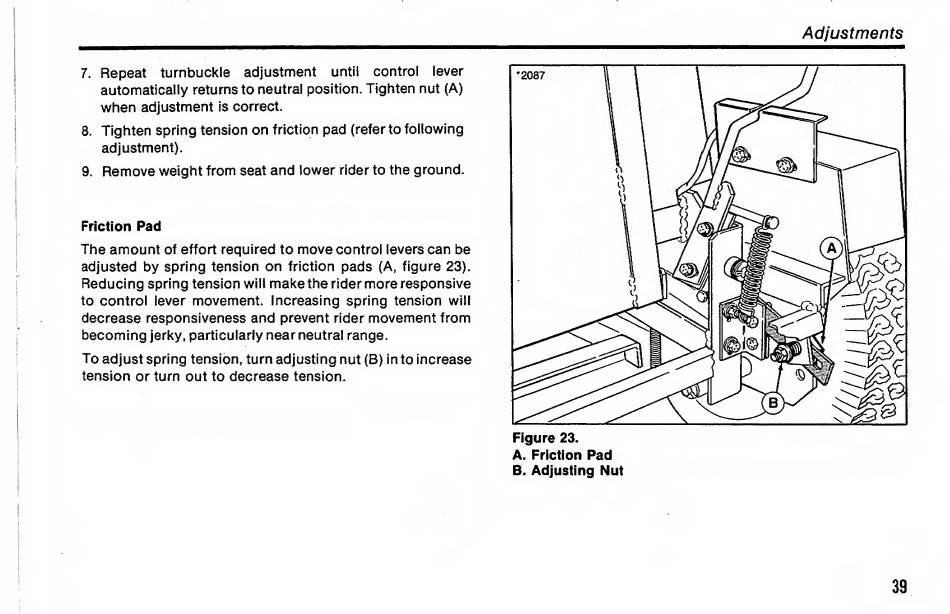

Simplicity CFC Series Operator's Manual page 41

Adjustments
7
.
Repeat turnbuckie adjustment untlt control lever
automatically returns to neutral position. Tighten nut (A)
when adjustment is correct.
8. Tighten spring tension on friction pad (refer to following
adjustment).
9. Remove weight from seat and lower rider to the ground.
Friction Pad
The amount of effort required to move control levers can be
adjusted by spring tension on friction pads (A, figure 23).
Reducing spring tension will make the rider more responsive
to control lever movement. Increasing spring tension will
decrease responsiveness and prevent rider movement from
becoming jerky, particularly near neutral range.
To adjust spring tension, turn adjusting nut (B) in to increase
tension or turn out to decrease tension.
Figure 23.
A. Friction Pad
B. Adjusting Nut
39
