Troubleshooting
RIDER BELT REPLACEMENT
Transmission Drive Beit
1. Push down on rear of idler pulley assembly (A, figure 12)
and remove belt from crankshaft pulley (B). Remove belt
from idler pulley assembly, loosening belt stop (G) as
necessary*
2. Remove belt from right hand hydro pump pulley (C) and
place over pump drive shaft (between left hand and right
hand hydro pumps)*
3. Remove two capscrews and locknuts so that spacer (A,
figure 13) can be removed.
4. Slide belt from between drive shaft and left hand fan,
5. Install new belt and reassembly spacer, lockwasher, and
capscrews to left hand fan assembly.
6. Install belt on right hand pump pulley.
7. Install belt on engine crankshaft and idler pulley. Refer
to figure 12. Tighten belt stop so that it is 1/16" - 1/8"
from belt.

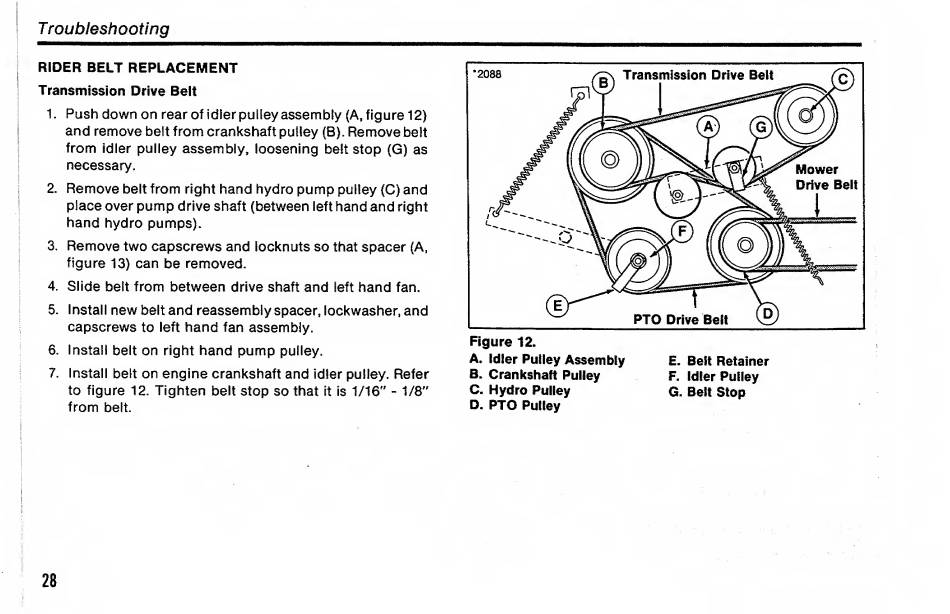

Figure 12.
A. Idier Puiley Assembly
B. Crankshaft Pulley
C. Hydro Pulley
D. PTO Pulley
£. Belt Retainer
F. Idier Pulley
Q. Belt Stop
28
