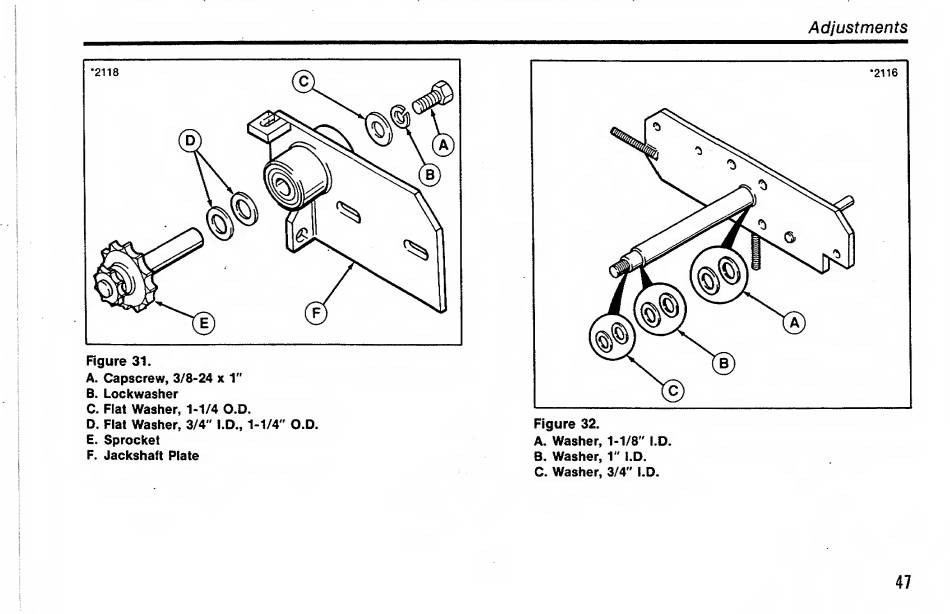

Figure 31.

A. Capscrew, 3/8>24 x 1"

B. Lockwasher

C. Flat Washer, 1-1/4 O.D.

D. Flat Washer, 3/4^' I.D., 1-1/4" O.D.

E. Sprocket

F. Jackshaft Plate

Adjustments

Figure 32.

A. Washer, 1-1/8" I.D.

B. Washer, 1" i.D.

C. Washer, 3/4" I.D.

47
