Normal Care

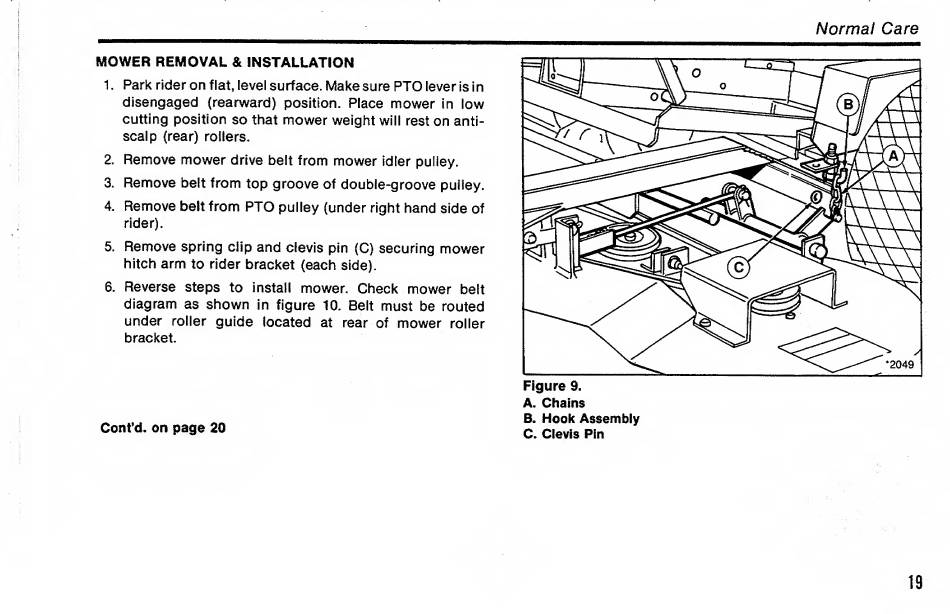

MOWER REMOVAL & INSTALLATION
1. Park rider on flat, level surface. Make sure PTO lever is in
disengaged {rear>ward) position. Place mower in low
cutting position so that mower weight will rest on anti¬
scalp (rear) rollers.
2. Remove mower drive belt from mower idler pulley.
3. Remove belt from top groove of double-groove pulley.
4. Remove belt from PTO pulley (under right hand side of
rider).
5. Remove spring clip and clevis pin (C) securing mower
hitch arm to rider bracket (each side).
6. Reverse steps to install mower. Check mower belt
diagram as shown in figure 10. Belt must be routed
under roller guide located at rear of mower roller
bracket.
Cont'd. on page 20
A. Chains
B. Hook Assembly
C. Clevis Pin
19
