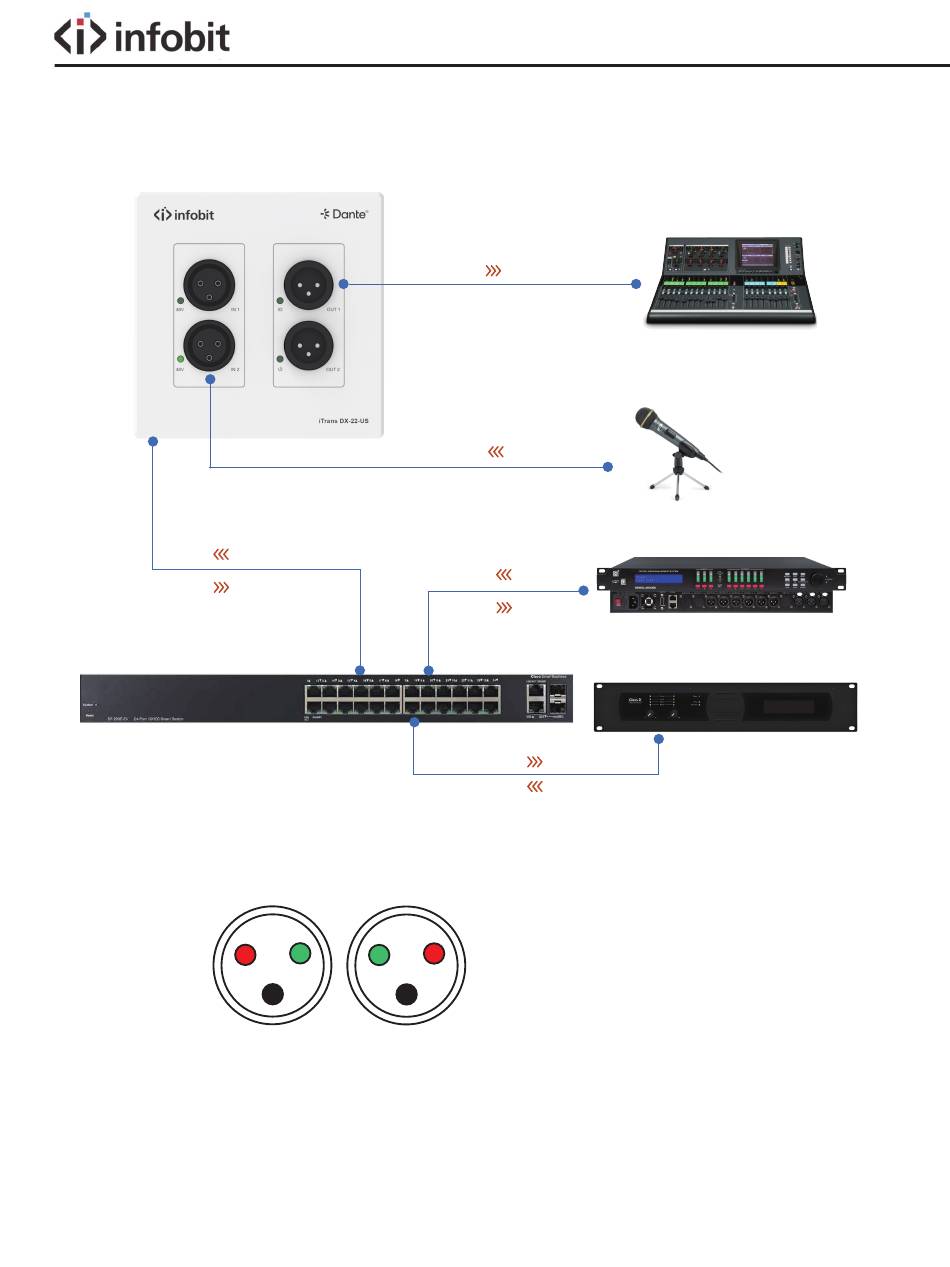

6. Application Example
2x Input & 2x Output Analogue
XLR to Dante
Network Switch (PoE)
Note: Please pay attention to the XLR connector pinouts when connecting
XLR audio input/output devices.
Trademarks
Dante is registered trademark of Audinate Pty Ltd. All other trademarks
®
are the property of their respective owners.
Converter
®
1
2 1
3
3
Male Female
Pin 1: Ground/Shield
2
Pin 2: Positive/Hot
Pin 3: Negative/Cold
6 / 6
Mixing
Console
MIC
Audio Processor
Dante Amplifier
®
