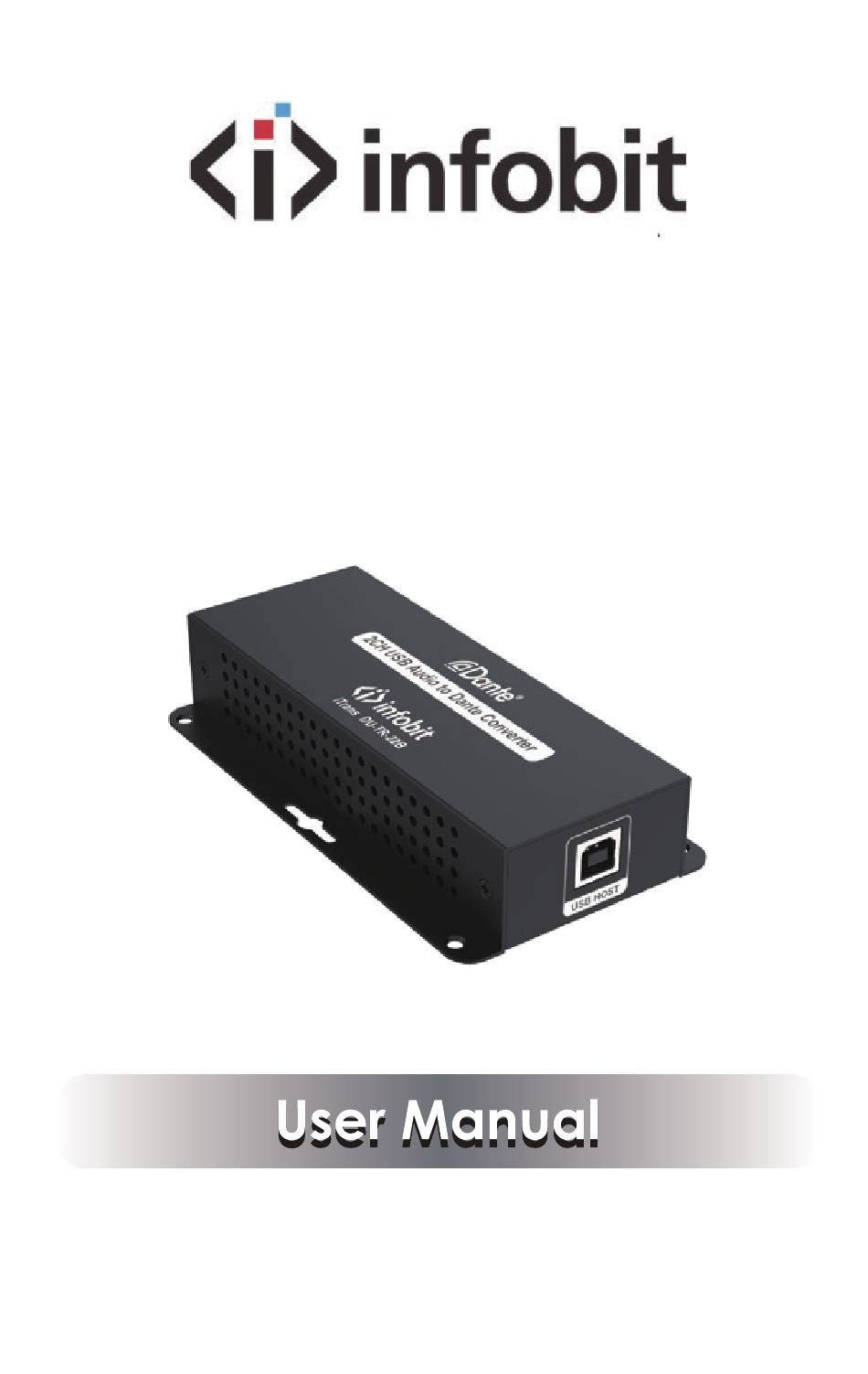

- Page 1 DU-TR-22B 2CH USB Audio to Dante Converter VER 1.0 www.infobitav.com info@infobitav.com...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction The iTrans DU-TR-22B is a USB audio encoding and decoding device based on the Dante Ultimo solution, with two channels input and two channels output. Built-in USB sound card, it transmits signals through IP, supporting AES67 RTP audio transmission.
- Page 4 4. Specifications Technical Video Network 100M Bandwidth PCM 2.0, 44.1KHz/48KHz/88.2KHz Audio Formats /96KHz, up to 32bit Transmission 100m/328ft (CAT6/6A) Distance Frequency 20Hz to 20KHz Response Dante Controller Control Method Connection × USB HOST [Type B] Input & Output × DANTE [RJ45, PoE] Mechanical Housing Metal Enclosure...
- Page 5 5. Operation Controls and Functions Name Function Description USB HOST • USB digital audio signal input. (From PC) • USB 5V power input. • Dante digital audio input and output. • PoE power supply. • The green LINK LED is always on DANTE (PoE) after normal connection.
- Page 6 6. Application Example Dante® Controller 100/1000M Network Switch Dante Audio USB Audio Converter Laptop USB Audio Input & Output Trademarks Dante® is registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
