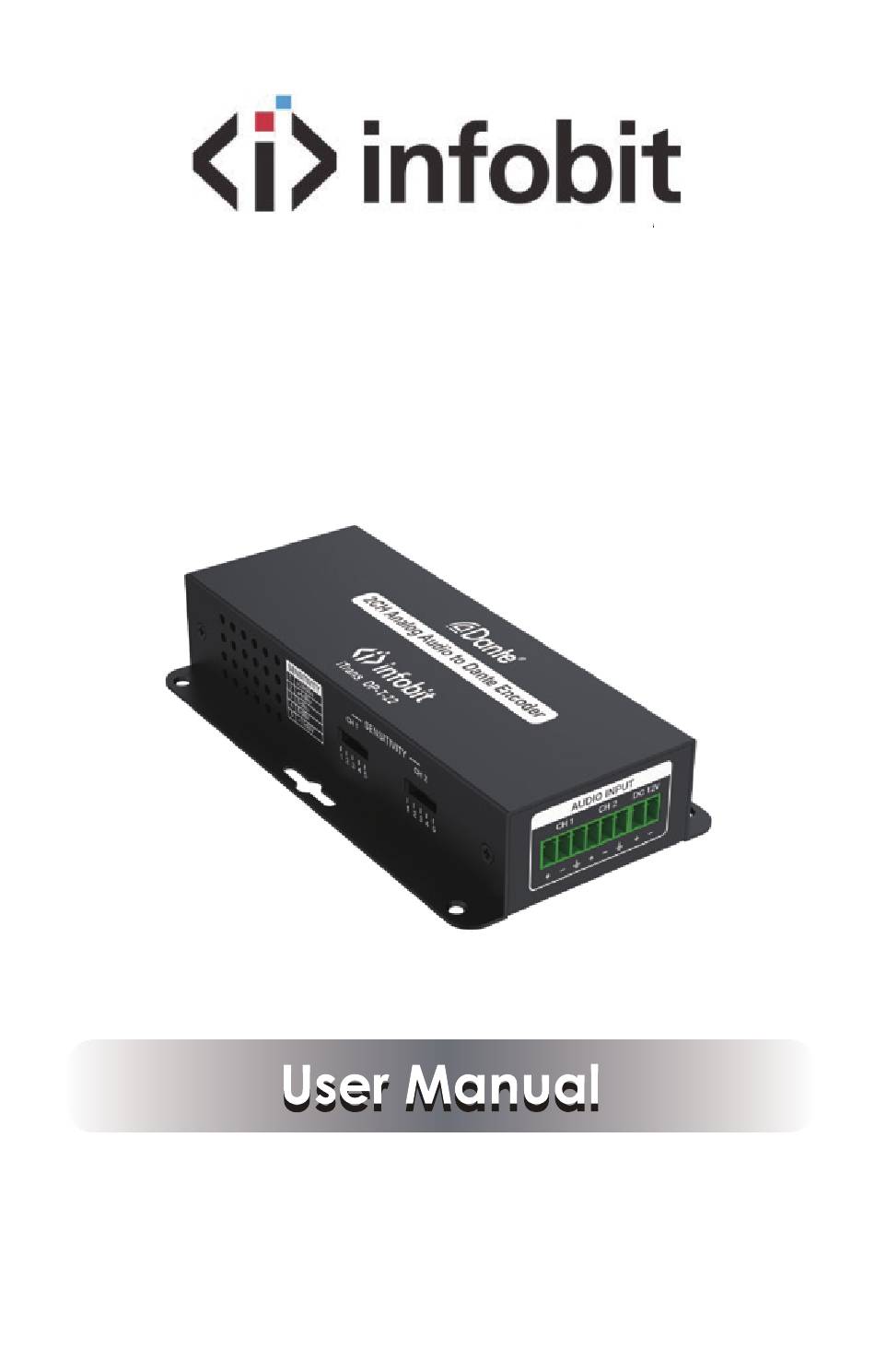

DP-T-22 2CH Analog Audio to Dante Encoder VER 1.0 www.infobitav.com info@infobitav.com...
Page 2
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
Page 3

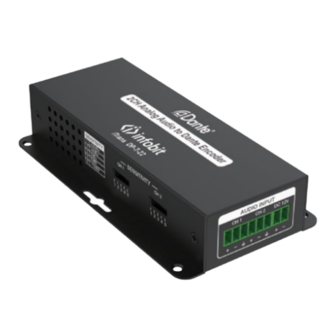

1. Introduction The iTrans DP-T-22 is an audio transmitter based on the Dante Ultimo solution. It encodes the audio signal and then transmits to the decoder through Dante network, supporting AES67 RTP audio transmission. This product also supports 2 channels unbalanced or balanced analog audio input, 5-level sensitivity adjustment and PoE power supply.
Page 4
4. Specifications Technical Video Network 100M Bandwidth PCM 2.0, @16bit/24bit/32bit, Audio Formats 44.1KHz/48KHz/88.2KHz/96KHz Transmission 100m/328ft (CAT6/6A) Distance Control Method Dante Controller Connection 1 × Dante [RJ45 connector, PoE] Input 2 × AUDIO INPUT [6-pin phoenix, 3.81mm] Mechanical Housing Metal Enclosure Color Black Dimensions...
Page 5
5. Operation Controls and Functions Name Function Description 2-channel analog audio input AUDIO INPUT ports, support balanced and (CH1/CH2) unbalanced audio. DC 12V/1A power input port. DC 12V • Dante digital audio input port. Connect to the Network Switch through RJ45 line, supporting PD power supply.
Page 6
6. Application Example Dante® Controller 100/1000M Network Switch Dante Audio Encoder Audio Analog Audio Input (2 channels) Speakers Audio Decoder Dante Audio Analog Audio Output (2 channels) Trademarks Dante® is registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
