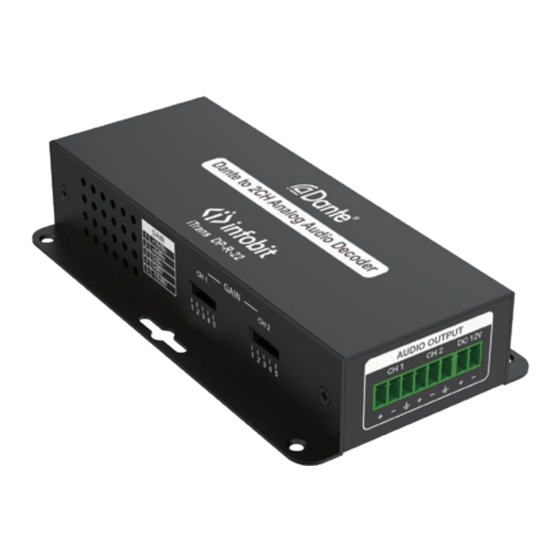

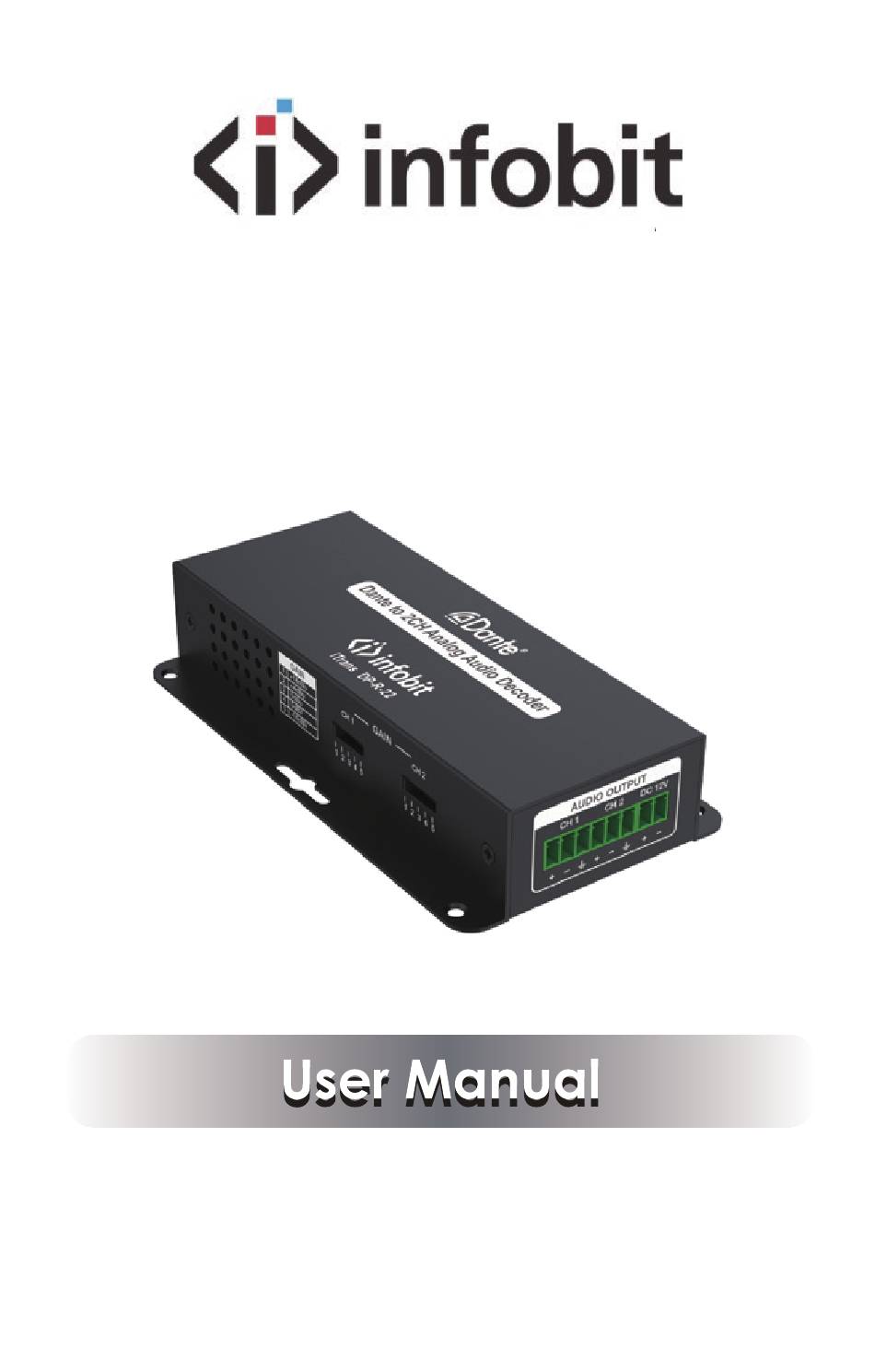

- Page 1 DP-R-22 Dante to 2CH Analog Audio Decoder VER 1.0 www.infobitav.com info@infobitav.com...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction The iTrans DP-R-22 is an audio receiver based on the Dante Ultimo solution. It decodes the signal from the encoder, and converts I2S audio signal to analog signal through DAC module to output. This product transmits signals through Dante network, supporting AES67 RTP audio transmission.
- Page 4 4. Specifications Technical Video Network 100M Bandwidth PCM 2.0, @16bit/24bit/32bit, Audio Formats 44.1KHz/48KHz/88.2KHz/96KHz Transmission 100m/328ft (CAT6/6A) Distance Control Method Dante Controller Connection 1 × Dante [RJ45 connector, PoE] Input Output 2 × AUDIO OUTPUT [6-pin phoenix, 3.81mm] Mechanical Housing Metal Enclosure Color Black Dimensions...
- Page 5 5. Operation Controls and Functions Name Function Description AUDIO 2-channel analog audio output OUTPUT ports, supporting balanced and (CH1/CH2) unbalanced audio. DC 12V/1A power input port. DC 12V • Dante digital audio input port. Connect to the Network Switch through RJ45 line, supporting PD power supply.
- Page 6 6. Application Example Dante® Controller 100/1000M Network Switch Dante Audio Encoder Audio Analog Audio Input (2 channels) Speakers Audio Decoder Dante Audio Analog Audio Output (2 channels) Trademarks Dante® is registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
