Installation Guide | iC7 Series Air-cooled LCL Filter OF7Z3
Terminals
3.6
1
L1
2 L2
L3

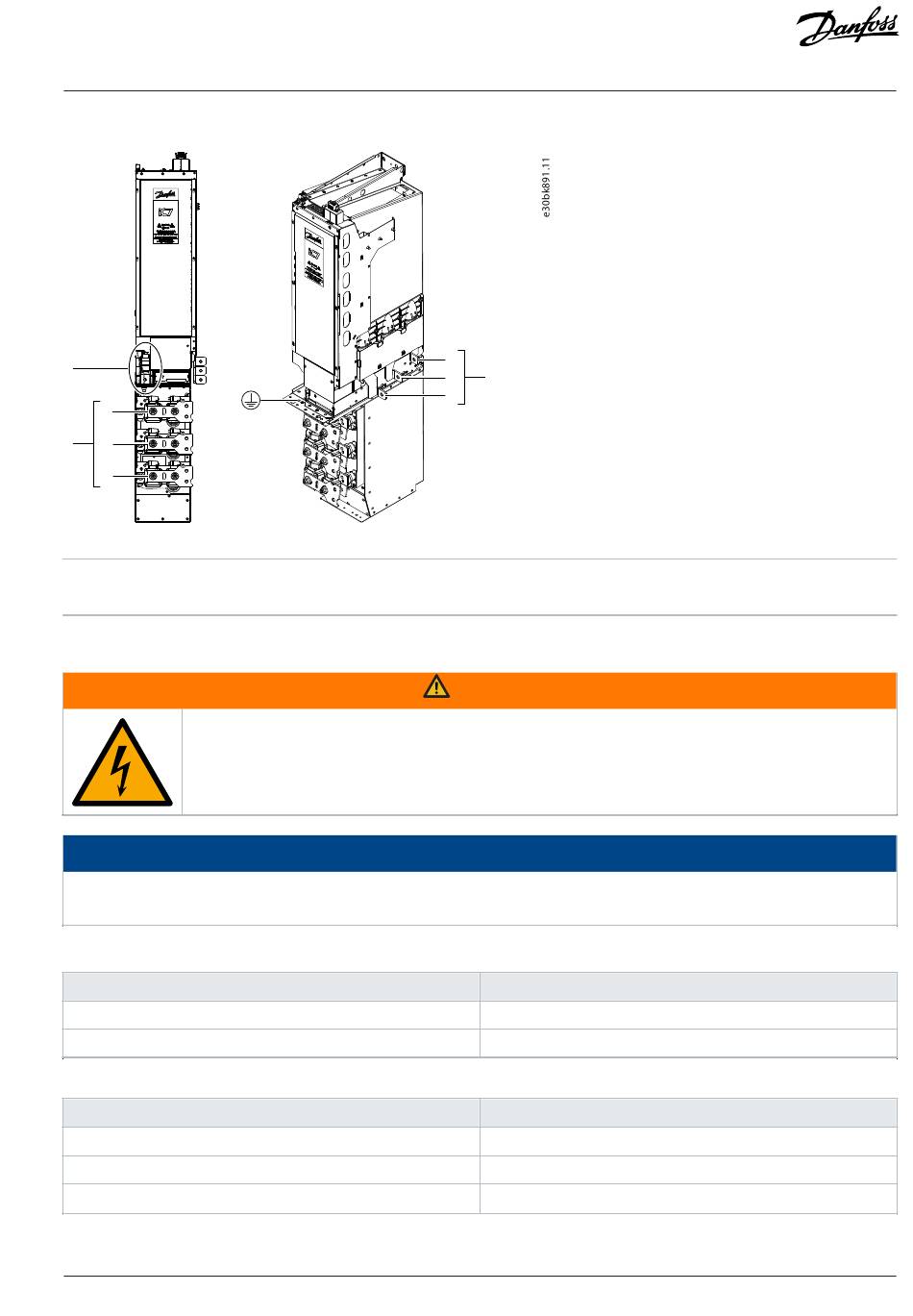

Figure 9: Terminals of the LCL Filter
1 Terminals between L Filter and LC Filter
3
LC Filter output terminals L1, L2, L3
Connecting the LCL Filter Fan Supply
3.7
SHOCK HAZARD FROM THE COMPONENTS
The components of the drive are live when the drive is connected to mains.
Do not make changes in the AC drive when it is connected to mains.

The LCL Filter fan supply is protected with internal fuses. Use external fuses if the local safety regulations or installation conditions
require fuse protection.
Table 1: DC-link Voltage Supply
Item
Maximum load current
Maximum voltage
Table 2: Connector X121
Item
Connector
Maximum wire insulation diameter
Wire stripping length
Danfoss Drives Oy © 2024.11
L3
L2 3
L1
2 L Filter input terminals L1, L2, L3
WARNING
NOTICE
Value
2 A
800 V DC
Value
Wago, 831-3103/037-000
7 mm (0.3 in)
14 mm (0.6 in)
Electrical Installation
