Danfoss iC7 Series Installation Manual page 6

Installation Guide | iC7 Series Air-cooled LCL Filter OF7Z3
Dimensions of the LCL Filter
2.5
2 x Ø9 (0.35) 5 x Ø5.5 (0.22)
Ø25
72
(0.98)
R10 (2.84)
R7.5
3 x M8
7 x Ø6 (0.24)
90° x Ø9 (0.35)

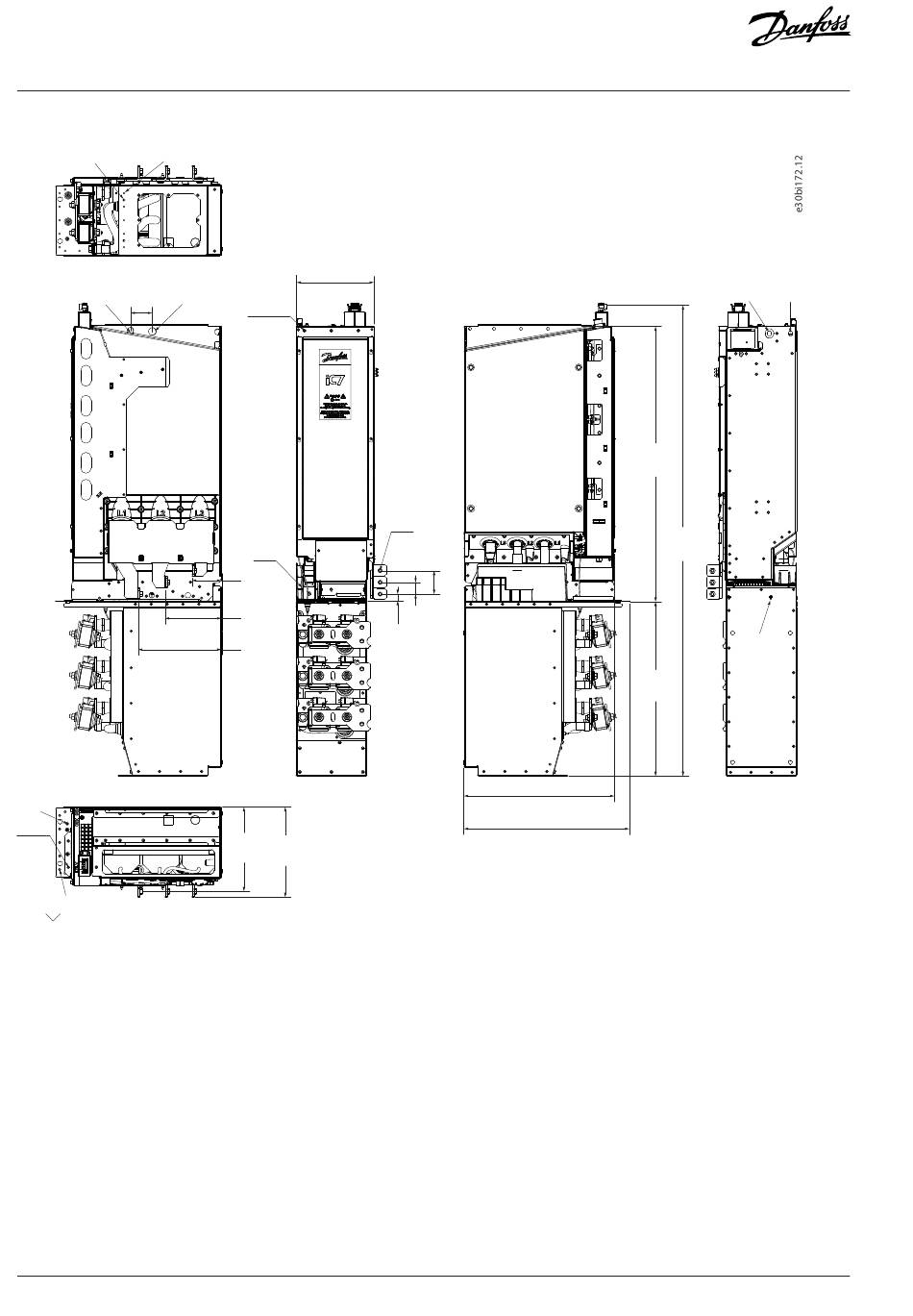

Figure 7: Dimensions of LCL10 and LCL11 in mm (in)
6 | Danfoss Drives Oy © 2024.11
259
(10.20)
3 x M8
M12
M12
99
(3.90)
189
(7.44) 23
(0.91)
279
(10.98)
280
300
(11.02)
(11.81)
78
(3.07)
39
(1.54)
505
(19.88)
555
(21.85)
Mechanical Installation
Ø13
Ø13
(0.51)
(0.51)
921
(36.26)
1576
(62.05)
2 x Ø9
(0.35)
584
(22.99)
AN447722806364en-000201 / 172K1109B
