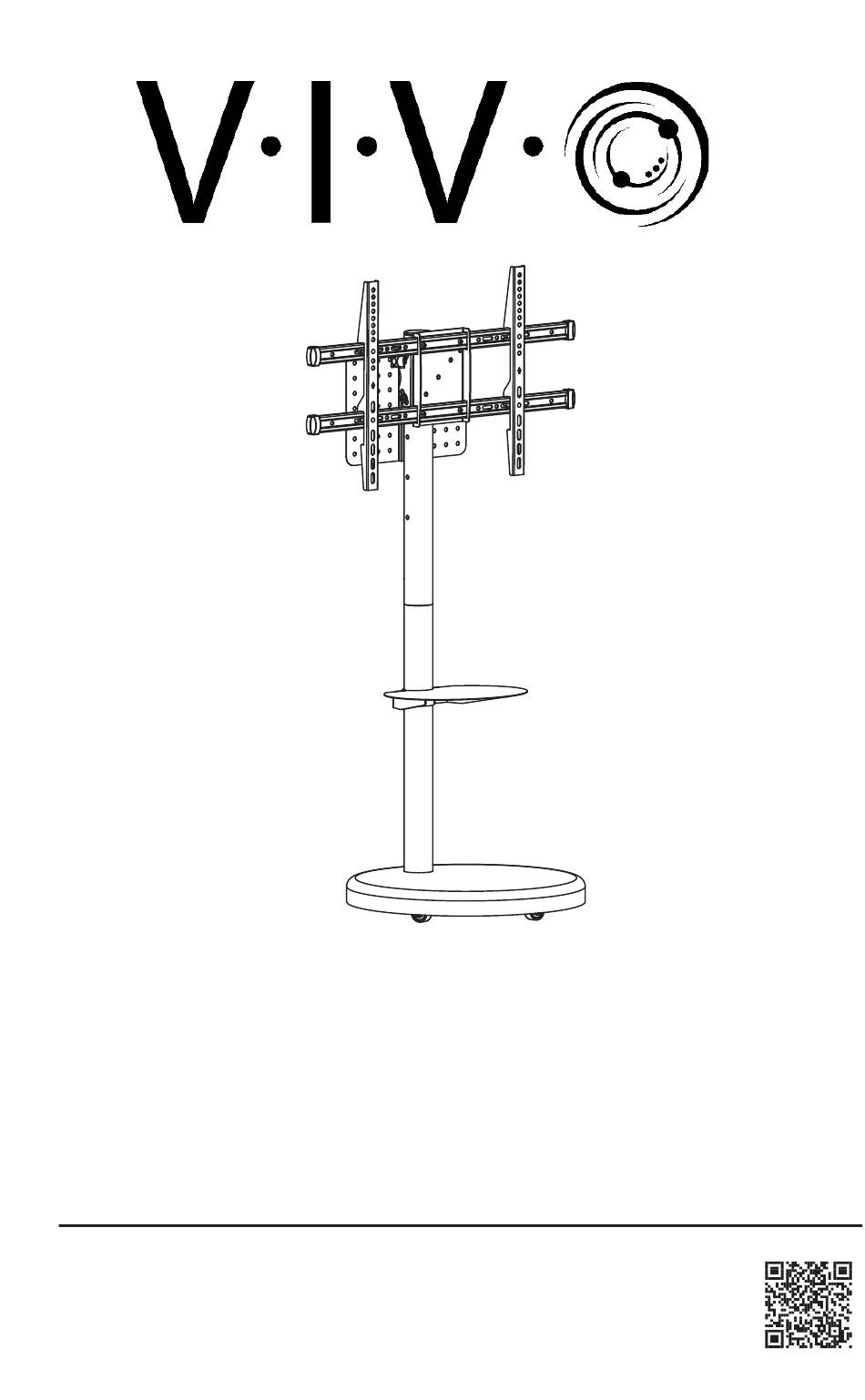

- Page 1 Mobile TV Floor Stand with Shelf SKU: STAND-TVHD8B Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tvhd8b...
- Page 2 [THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 4: Package Contents
Package Contents C (x1) A (x1) B (x1) D (x1) Upper Pole Base Lower Pole Shelf E (x1) F (x1) G (x1) H (x2) Shelf Bracket Arm Bracket Mounting VESA Bracket Plate I (x4) J (x5) Arm Cap Zip Tie Included Hardware &... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Lower Pole (B) to the Base (A) using M8x20mm Screws (S-E), M8 Washers (S-G), and 6mm Allen Wrench (T-C) making sure the Cable Slot on Lower Pole is facing the back. Cable Slot should be face the back of the Base STEP 2 Insert Upper Pole (C) onto Lower Pole (B) and secure using M6x8mm Set Screws (S-A) - Page 6 STEP 3 Secure Shelf (D) onto Lower Pole (B) at desired height using M6x16mm Screws (S-D), Shelf Bracket (E), and 4mm Allen Wrench (T-B). STEP 4 Press Arm Caps (I) onto Arm Bracket (F) as shown.
- Page 7 STEP 4 Cont’d Attach Arm Bracket (F) to Upper Pole (C) at desired height using M8x75mm Screws (S-F) and M8 Nuts (S-H). Tighten using 6mm Allen Wrench (T-C) and Wrench (T-D). STEP 5 Attach VESA Brackets (H) to your TV using appropriate Screws (M-A through M-D), Washers (M-E), and Spacers (M-F, M-G).
- Page 8 STEP 6 Hang TV onto Arm Bracket (F). 2 Person Mounting is Recommended Secure using M6x12mm Screws (S-C) and a Phillips screwdriver.
- Page 9 STEP 7 Use Knobs on Arm Bracket (F) to adjust the tilt of your TV. Knob STEP 8 Lock the TV at your desired orientation using M6x8mm Round Head Screws (S-B) and a Phillips screwdriver. 0° 90°...
- Page 10 STEP 9 Attach Mounting Plate (G) to Upper Pole (C) at your desired height using M6x16mm Screws (S-D) and 4mm Allen Wrench (T-B). Secure accessories onto the Mounting Plate (G) using Zip Ties (J). Route cables through the Cable Slots. Cable Slots...
- Page 11 [THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
-
Page 12: Last Updated
LAST UPDATED: 6/11/24 REV1.1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
