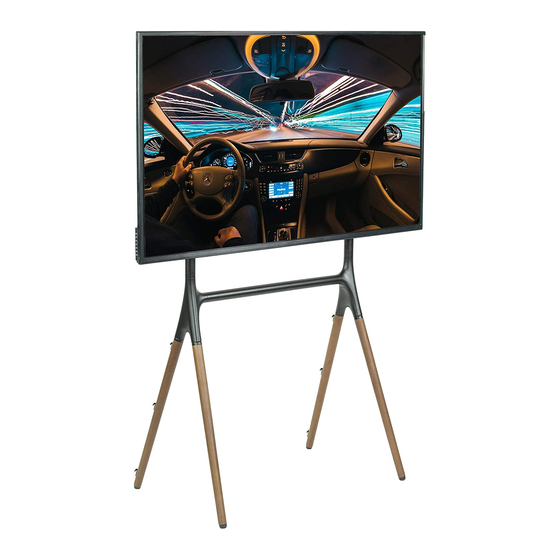

Easel Studio TV Stand
Instruction Manual
SKU: STAND-TV70A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv70a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV70A
Summary of Contents for Vivo STAND-TV70A
- Page 1 Easel Studio TV Stand Instruction Manual SKU: STAND-TV70A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv70a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting hardware for brick and concrete walls. If unsure, please contact us at vivo-us.com, email at help@vivo-us.com, or call us at 309-278-5303. ASSEMBLY STEPS STEP 1 Screw the legs (C) into the base (A).
- Page 4 STEP 3 Loosen the support rings on the poles using the 4mm Allen wrench (L). Adjust rings to hold TV at desired height, using a tape measure to ensure the rings are adjusted evenly, and tighten with the 4mm Allen wrench. NOTE: Rings should be at least 2”...
- Page 5 STEP 5 OPTION A: Flat Back Monitor Position VESA brackets horizontally on the back of the TV, making sure upper VESA bracket (D) is on top and lower VESA bracket (E) is below. Secure using screws (M-A or M-B) with square M- A M- B washers (M-F), with security clips (G)
- Page 6 STEP 6 Slide the TV with VESA brackets (D, E) onto poles. Close the clamps on lower VESA bracket over the poles and secure with previously removed screws. Peel backing from cable clips (I) and install clips on rear legs. Use clips to organize cables.
- Page 7 STEP 7 40mm ø 3.5 OPTION A: Wood Stud Wall Using Security Cable Clamps (H) as guides, mark drilling locations on wall at the same height as the upper VESA bracket. Use of a stud finder is recommended. Drill holes at least 1.6”...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
