TV Floor Stand
SKU: STAND-TV75E
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/stand-tv75e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-TV75E and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-TV75E

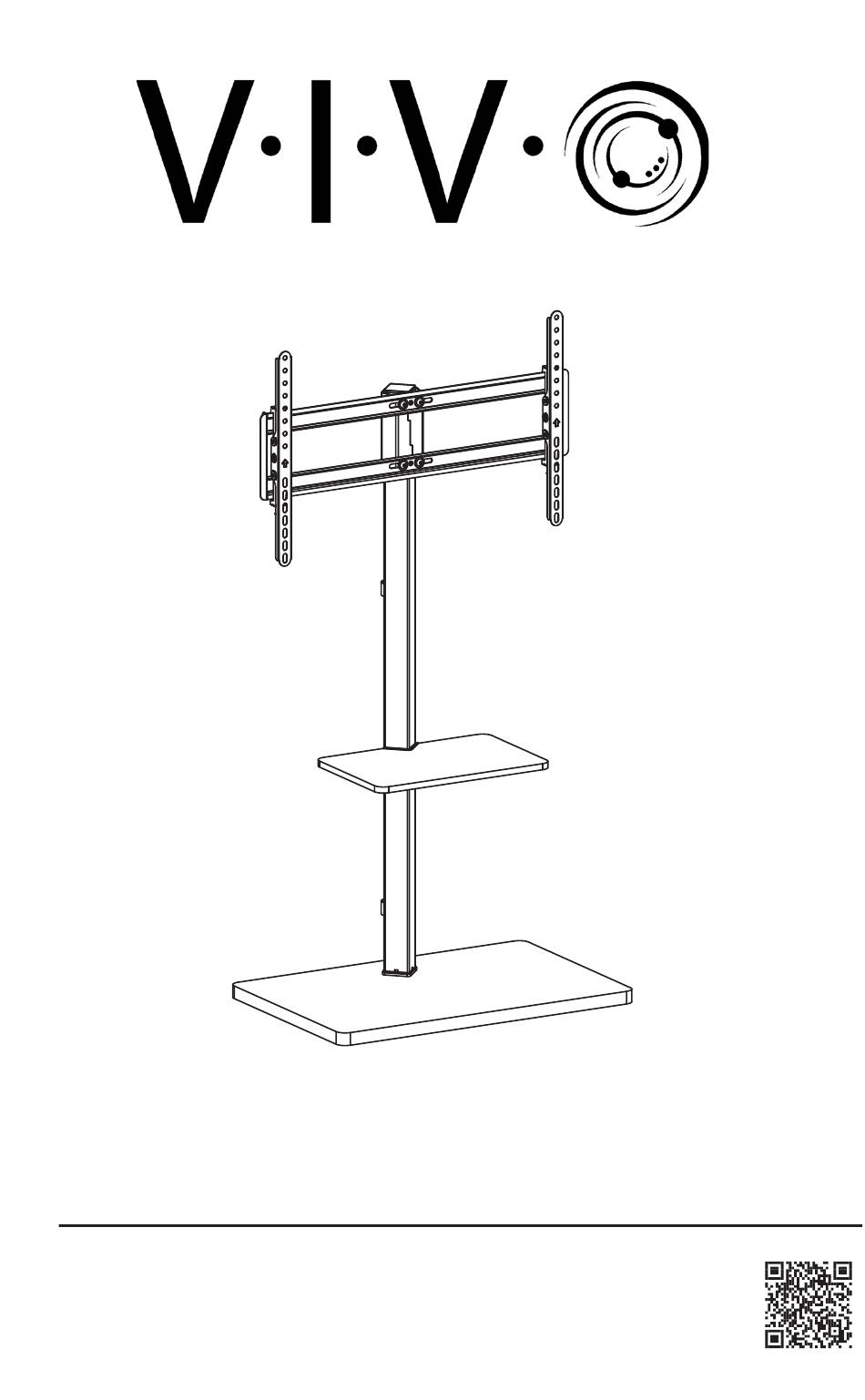

  • Page 1 TV Floor Stand SKU: STAND-TV75E Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tv75e...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Package Contents

    Package Contents C (x1) B (x1) Support Plate Base D (x2) E (x1) VESA Brackets Shelf G (x5) F (x1) Round Pad Shelf Bracket A (x1) Pole I (x1) H (x2) Square Pad Cable Clip Included Hardware & Tools S-D (x4) S-A (x4) S-B (x6) S-C (x4)
  • Page 4: Tools Needed

    Security Cable Kit P-A (x1) P-B (x2) P-C (x1) P-D (x2) Security Cable Security Cable Clip Wall Bracket Cable Lock P-E (x1) P-F (x1) P-G (x2) ST4.8x38mm Screw Concrete Anchor M5 Washer Tools Needed: Weight Capacity: 77lbs 11lbs (35kg) (5kg) Phillips Power Drill Screwdriver...
  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1 Attach Pole (A) to Base (B) using M8x40mm Screws (S-C) and 5mm Allen Wrench (T-B). Remove the protective film from Round Pads (G) and place them on the bottom of Base, as shown below. S-C (x4) Screws should be installed through the inset holes on the...
  • Page 6 STEP 2 The position the preinstalled Height Adjustment Bracket on Pole (A) can be adjusted to your desired height. To adjust, begin by removing the preinstalled screws using the 5mm Allen Wrench (T-B), adjust the Bracket, and then reinstall screws in your desired position. Height Adjustment Bracket...
  • Page 7 STEP 3 Attach VESA Brackets (D) to the back of your TV using the assorted Mounting Hardware shown below, making note of the combinations for Upper and Lower VESA Slots. Tighten with a Phillips screwdriver. To help orient the VESA Brackets ensure the locking screw is position towards the bottom of the TV.
  • Page 8 STEP 4 Hang the TV with VESA Brackets (D) onto the Support Plate (C). Secure the Locking Screws on VESA Brackets using a Phillips screwdriver. Locking Screw...
  • Page 9 STEP 5 Remove the protective film from Square Pad (I) and apply it the the inside corner of Shelf Bracket (F). Attach Shelf Bracket (F) to Pole (A) at one of three heights using M8x20mm Screws (S-B) and 5mm Allen Wrench (T-B). S-B (x2)
  • Page 10 STEP 6 Place Shelf (E) onto Shelf Bracket (F) and secure using M6x10mm Screws (S-A) and a Phillips screwdriver. S-A (x4)
  • Page 11 STEP 7 Press Cable Clips (H) into the slots on the back of Pole (A) and route cables through while placing. STEP 8 To adjust TV tilt, use 4mm Allen Wrench (T-A) to loosen and adjust Tilt Screws on side of VESA Brackets (D).
  • Page 12 STEP 9a - Wood Stud To install Security Cable Kit, use a stud finder and hold Wall Bracket (P-C) up to wall and mark hole position along a stud between 39.4”-51.2” (1000mm-1300mm) off of the floor. Drill a 1.6” (40mm) deep hole using a ⅛” (3.5mm) drill bit. Secure Wall Bracket (P-C) to the wall using ST4.8x38mm Screw (P-E) and a Phillips screwdriver.
  • Page 13 STEP 10a - Wood Stud Route the Security Cable (P-A) through Wall Bracket (P-E) and both Security Cable Clips (P-B) previously installed with VESA Brackets (D). Loosen the screw on Cable Lock (P-D) using a Phillips screwdriver. Slide Cable Locks onto the ends of Security Cable and tighten the screw using a Phillips screwdriver to secure.
  • Page 14 STEP 9b - Concrete/Brick Hold Wall Bracket (P-C) up to wall and mark hole position between 39.4”-51.2” (1000mm-1300mm) off of the floor. Drill a 1.6” (40mm) deep hole using a 9/32” (7mm) drill bit. Secure Wall Bracket (P-C) to the wall using ST4.8x38mm Screw (P-E), Concrete Anchor (P-F), and a Phillips screwdriver.
  • Page 15 STEP 10b - Concrete/Brick Route the Security Cable (P-A) through Wall Bracket (P-C) and both Security Cable Clips (P-B) previously installed with VESA Brackets (D). Loosen the screw on Cable Lock (P-D) using a Phillips screwdriver. Slide Cable Locks onto the ends of Security Cable and tighten the screw using a Phillips screwdriver to secure.
  • Page 16: Last Updated

    LAST UPDATED: 02/01/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
