Internal Speaker - Icom IC-03AT Instruction Manual

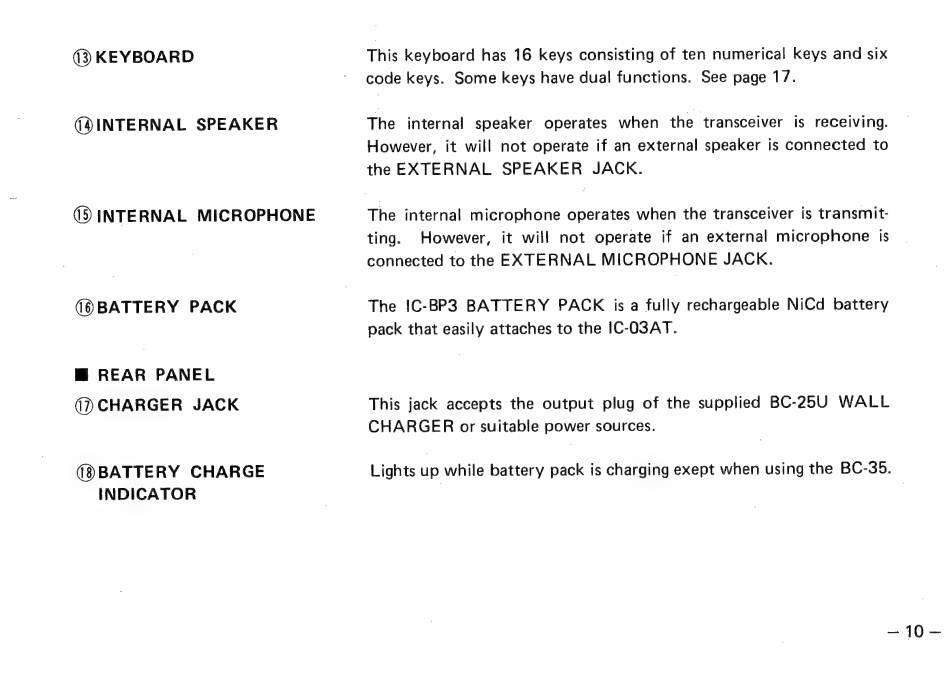

(3 KEYBOARD
INTERNAL SPEAKER
(9 INTERNAL MICROPHONE
(фВАТТЕВУ PACK
Ш REAR PANEL
(@ CHARGER JACK
(BATTERY CHARGE
INDICATOR
This keyboard has 16 keys consisting of ten numerical keys and six
code keys. Some keys have dual functions. See page 17.
The internal speaker operates when the transceiver is receiving.
However, it will not operate if an external speaker is connected to
the EXTERNAL SPEAKER JACK.
The internal microphone operates when the transceiver is transmit-
ting. However, it will not operate if an external microphone is
connected to the EXTERNAL MICROPHONE JACK.
Тһе IC-BP3 BATTERY PACK is a fully rechargeable NiCd battery
pack that easily attaches to the ІС-ОЗАТ.
This jack accepts the output plug of the supplied BC-25U WALL
CHARGER or suitable power sources.
Lights up while battery pack is charging exept when using the BC-35.
