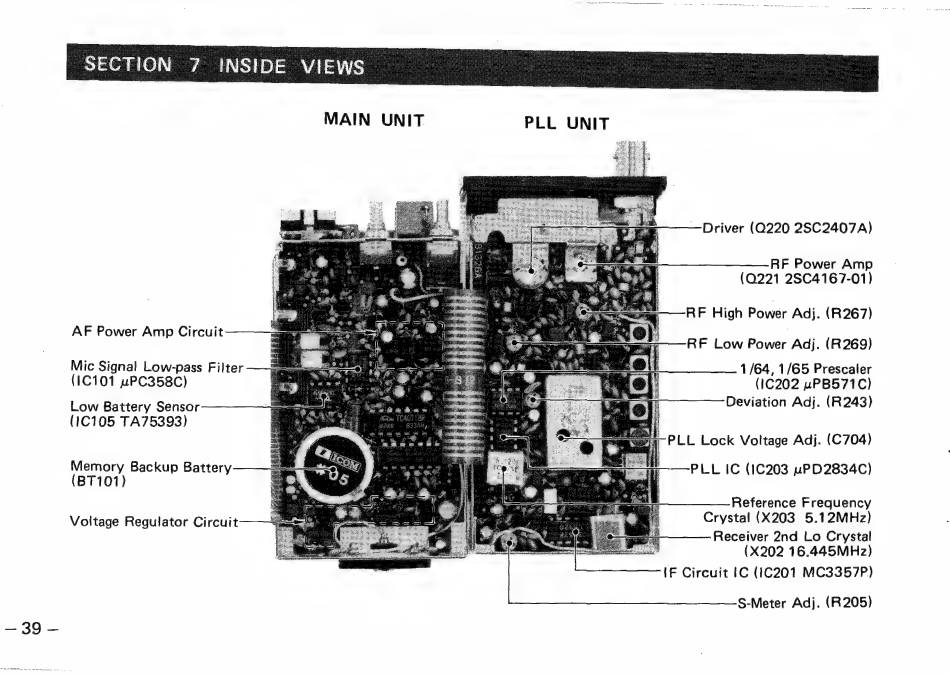

Inside Views - Icom IC-03AT Instruction Manual

— 39 —
Driver (0220 2SC2407A)
RF Power Amp
(Q221 2SC4167-01)
RF High Power Adj. (R267)
AF Power Amp
Circuit
|
вер
ВЕ Low Power Adj. (R269)
1/64, 1/65 Prescaler
(ІС202 иРВ571С)
Deviation Adj. (R243)
Mic Signal Low-pass Filter
(1C101 uPC358C)
Low Battery Sensor
(1C105 TA75393)
PLL Lock Voltage Adj. (C704)
Memory Backup Battery
PLL IC (ІС203 uPD2834C)
(BT101)
Reference Frequency
Crystal (X203 5.12MHz)
Receiver 2nd Lo Crystal
(X202 16.445MHz)
IF Circuit IC (1201 MC3357P)
Voltage Regulator Circuit
S-Meter Adj. (R205)
