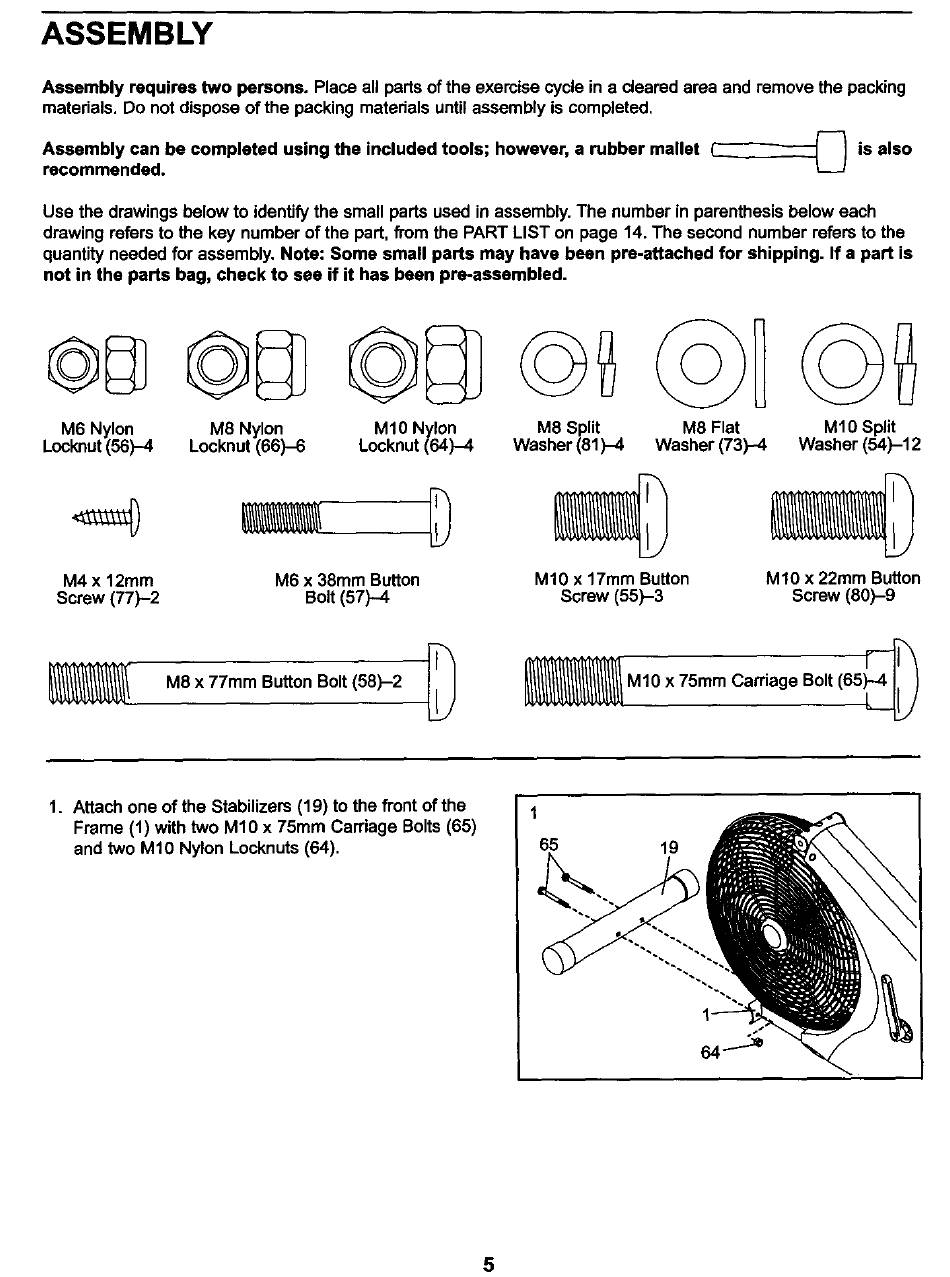

ASSEMBLY
Assembly requires two persons. Place all parts of the exemise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing matedals until assembly is completed.
Assembly can be completed using the included tools; however, a rubber mallet (_ I is also
recommended.
t_J
Usa the drawings below to identify the small parts used in assembly.The number in parenthesisbelow each
drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers to the
quantity needed for assembly. Note: Some small parts may have been prs-attached for shipping. If a part is
not in the parts bag, check to see if it has been pre-assembled.
M6 Nylon
Locknut(56)-4
M8 Nylon
Locknut (66)-6
M10 Nylon
Locknut (64)-4
M4 x 12ram M6 x 38mm Button
Screw (77)-2 Bolt (57)-4
M8 x 77mm Button Bolt (58)-2 [_
M8 Split M8 Flat
Washer (81)-4 Washer (73)-4
M10 x 17mm Button
Screw (55)-3
M10 Split
Washer (54)-12
M10 x 22ram Button
Screw (60)-9
M1O x 75mm Carriage Bolt (65_
1. Attach one of the Stabilizers (19) to the front of the
Frame (t) with two M1O x 75mm Carriage Bolts (65)
and two M10 Nylon Locknuts (64).
1
65
19
5
