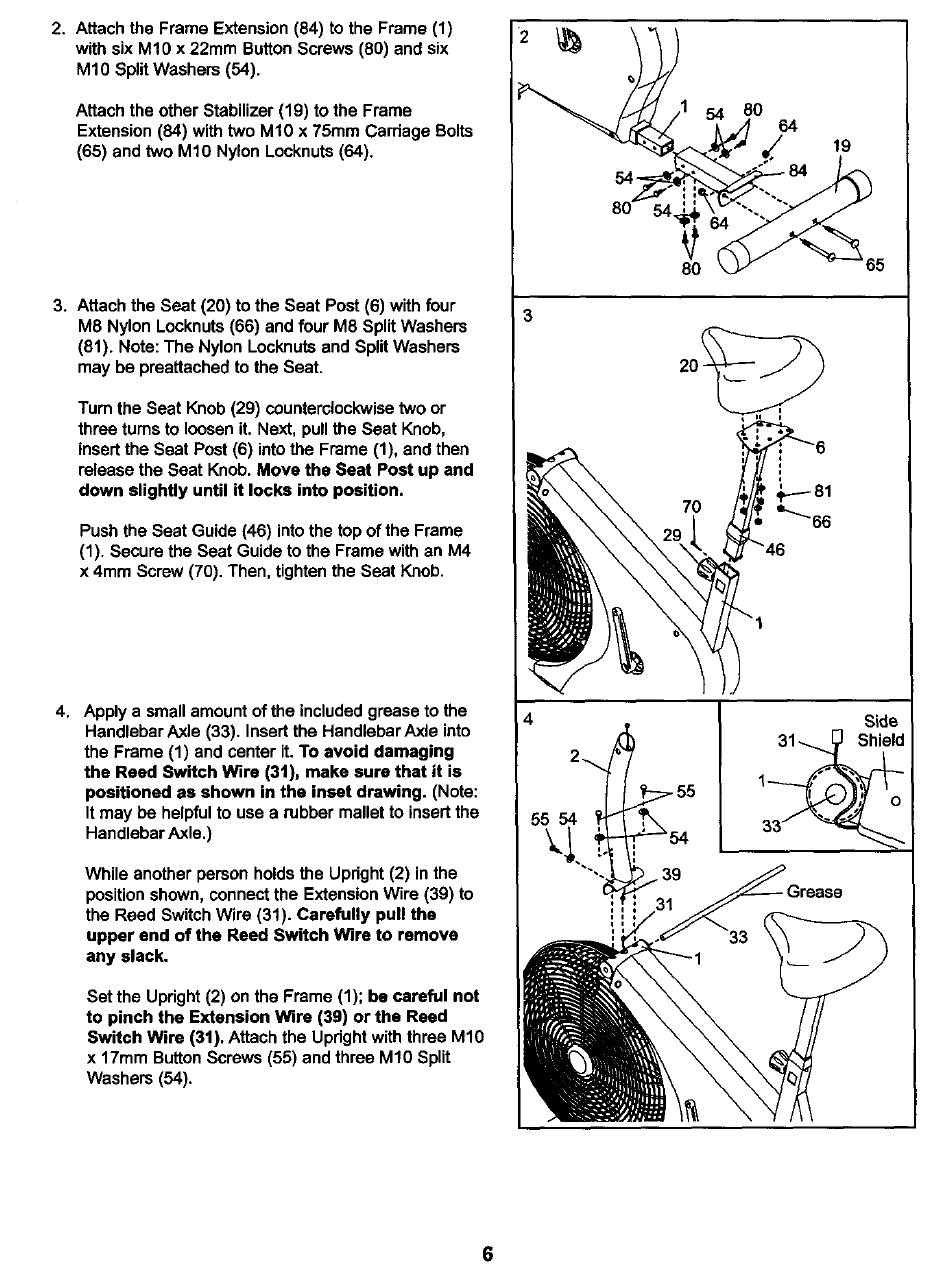

2. Attach the Frame Extension (84) to the Frame (1)
with six M10 x 22mm Button Screws (80) and six
M10 Split Washers (54).
Attach the other Stabilizer (19) to the Frame
Extension (84) with two M10 x 75mm Carriage Bolts
(65) and two M1O Nylon Locknuts (64).
3. Attach the Seat (20) to the Seat Post (6) with four
M8 Nylon Locknuts(66) and four M8 Split Washers
(81). Note: The Nylon Locknutsand Split Washers
may be preattached to the Seat.
Turn the Seat Knob (29) counterclockwisetwo or
three turns to loosen it. Next, pull the Seat Knob,
insertthe Seat Post (6) into the Frame (1), and then
release the Seat Knob. Move the Seat Post up and
down slightly until it locks into position.
Push the Seat Guide (46) intothe top of the Frame
(1). Secure the Seat Guide to the Frame with an M4
x 4ram Screw (70). Then, tighten the Seat Knob.
4. Apply a small amount of the included grease to the
Handlebar Axle (33). Insertthe Handlebar Axle into
the Frame (1) and center it. To avoid damaging
the Reed Switch Wire (3t), make sure that it is
positioned as shown in the inset drawing. (Note:
It may be helpfulto use a rubber mallet to insertthe
Handlebar Axle.)
While another person holds the Upright (2) in the
positionshown, connect the ExtensionWire (39) to
the Reed Switch Wire (31). Carefully pull the
upper and of the Reed Switch Wire to remove
any slack.
Set the Upright (2) on the Frame (1); be careful not
to pinch the Extension Wire (39) or the Reed
Switch Wire (31). Attach the Updght with three M10
x 17mm Button Screws (55) and three M10 Split
Washers (54).
3
55 54
54 80
64
80
7O
19
Side
