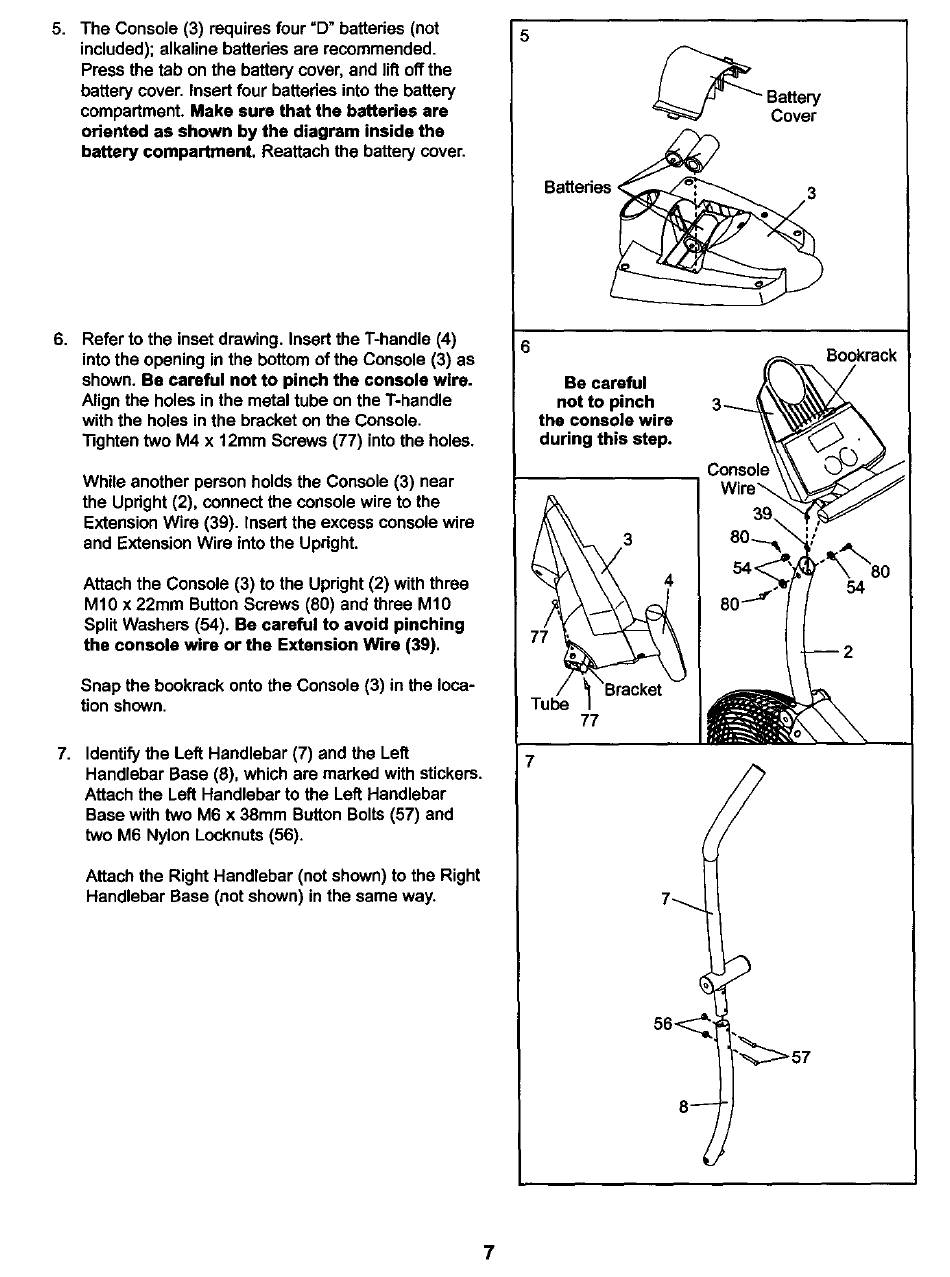

5.
The Console (3) requires four "D" batteries (not
included); alkaline batteries are recommended.
Press the tab on the battery cover, and lift off the
battery cover. Insert four batteries intothe battery
compartment. Make sure that the batteries are
oriented as shown by the diagram inside the
battery compartment. Reattach the battery cover.
6. Refer to the inset drawing. Insert the T-handle (4)
intothe opening in the bottom of the Console (3) as
shown. Be careful not to pinch the console wire.
Align the holes in the metal tube on the T-handle
with the holes in the bracket on the Console.
"13ghten t wo M4 x 12mm Screws (77) into the holes.
While another person holds the Console (3) near
the Updght (2), connect the console wire to the
ExtensionWire (39). Insert the excess console wire
and Extension Wire intothe Upright.
Attach the Console (3) to the Upright (2) with three
M10 x 22ram Button Screws (80) and three M10
Split Washers (54). Be careful to avoid pinching
the console wire or the Extension Wire (3g).
Snap the bookrack onto the Console (3) in the loca-
tion shown.
7. Identifythe Left Handlebar (7) and the Left
Handlebar Base (8), which are marked with stickers.
Attach the Left Handlebar to the Left Handlebar
Base with two M6 x 38mm Button Bolts(57) and
two M6 Nylon Locknuts (56).
Attach the Right Handlebar (not shown) to the Right
Handlebar Base (not shown) in the same way.
Batteries <
3
Be careful
not to pinch
the console wire
during this step.
3_
Consok
Sookrack
77
7
