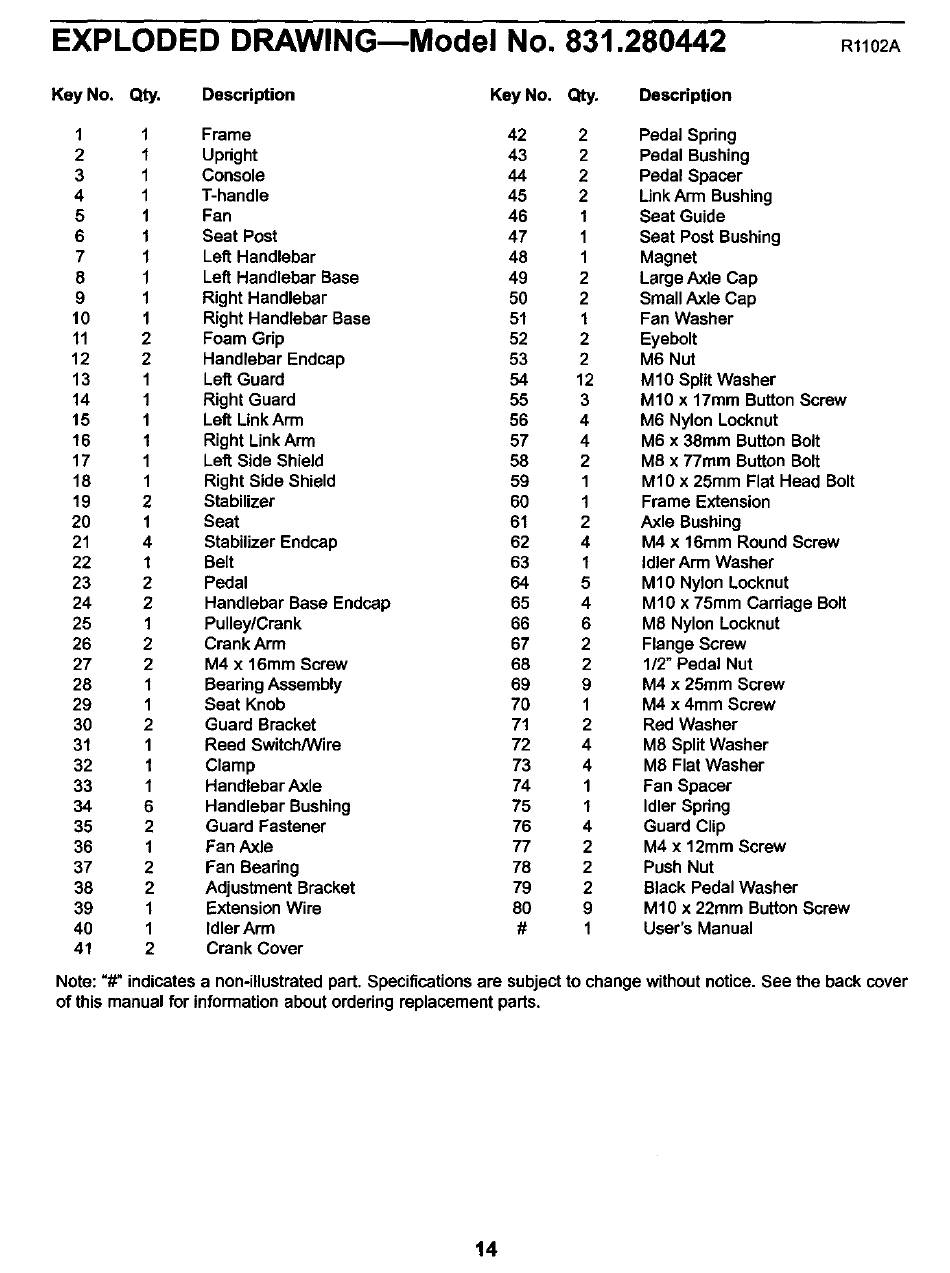

EXPLODED
DRAWING--Model
No. 831.280442
R1102A
Key No.
Qty.
Description
Key No. Qty.
Description
1
1
Frame
42
2
Pedal Spring
2
1
Upright
43
2
Pedal Bushing
3
1
Console
44
2
Pedal Spacer
4
1
T-handle
45
2
Link Arm Bushing
5
1
Fan
46
1
Seat Guide
6
1
Seat Post
47
1
Seat Post Bushing
7
1
Lett Handlebar
48
1
Magnet
8
1
Left Handlebar Base
49
2
Large Axle Cap
9
1
Right Handlebar
50
2
Small Axle Cap
10
1
Right Handlebar Base
51
1
Fan Washer
11
2
Foam Grip
52
2
Eyebolt
12
2
Handlebar Endcap
53
2
M6 Nut
13
1
Laf_Guard
54
12
M10 Split Washer
14
1
Right Guard
55
3
M10 x 17mm Button Screw
15
1
Left LinkArm
56
4
M6 Nylon Locknut
16
1
Right LinkArm
57
4
M6 x 38ram Button Bolt
17
1
Left Side Shield
58
2
M8 x 77mm Button Bolt
18
1
Right Side Shield
59
1
M10 x 25ram Flat Head Bolt
19
2
Stabilizer
60
1
Frame Extension
20
1
Seat
61
2
Axle Bushing
21
4
Stabilizer Endcap
62
4
M4 x 16mm Round Screw
22
1
Belt
63
1
idler Arm Washer
23
2
Pedal
64
5
M10 Nylon Locknut
24
2
Handlebar Base Endcap
65
4
M1O x 75ram Carriage Bolt
25
1
Pulley!Crank
66
6
M8 Nylon Locknut
26
2
Crank Arm
67
2
Flange Screw
27
2
M4 x 16mm Screw
68
2
1/2" Pedal Nut
28
1
BearingAssembly
69
9
M4 x 25mm Screw
29
1
Seat Knob
70
1
M4 x 4mm Screw
30
2
Guard Bracket
71
2
Red Washer
31
1
Reed Switch/Wire
72
4
M8 Split Washer
32
1
Clamp
73
4
M8 Flat Washer
33
1
Handlebar Axle
74
1
Fan Spacer
34
6
Handlebar Bushing
75
1
Idler Spdng
35
2
Guard Fastener
76
4
Guard Clip
36
1
Fan Axle
77
2
M4 x 12mm Screw
37
2
Fan Beadng
78
2
Push Nut
38
2
Adjustment Bracket
79
2
Black Pedal Washer
39
1
Extension Wire
80
9
Mt0 x 22ram Button Screw
40
1
Idler Arrn
#
1
User's Manual
41
2
Crank Cover
Note: "#" indicates a non-illustratedpart. Specifications are subjectto change without notice. See the back cover
of this manual for informationabout ordering replacement parts.
