MAP touch keypad 5000

IUI‑MAP0001‑3

User manual

Need help?

Do you have a question about the MAP 5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bosch MAP 5000

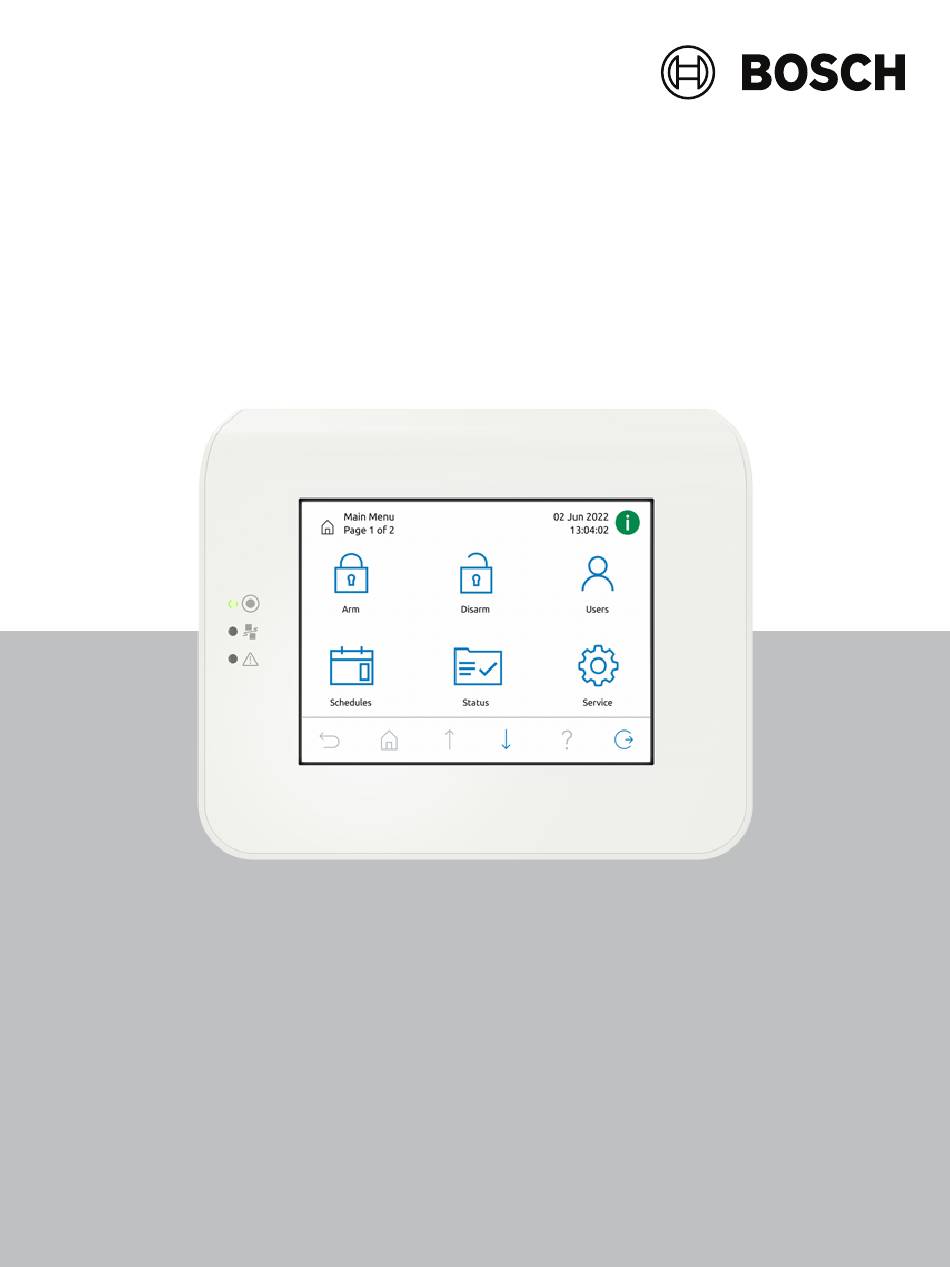

Page 1 MAP touch keypad 5000 IUI‑MAP0001‑3 User manual...
Page 3 Bell and indicator test 5.8.8 Changing/viewing output state 5.8.9 Manufacturer authorization 5.8.10 Adjusting volume/brightness 5.8.11 Setting chime mode 5.8.12 Blocking time Internal programs 5.10 Event memory 5.11 Managing remote access Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 4 | Table of contents MAP touch keypad 5000 Troubleshooting Maintenance 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 5 Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...

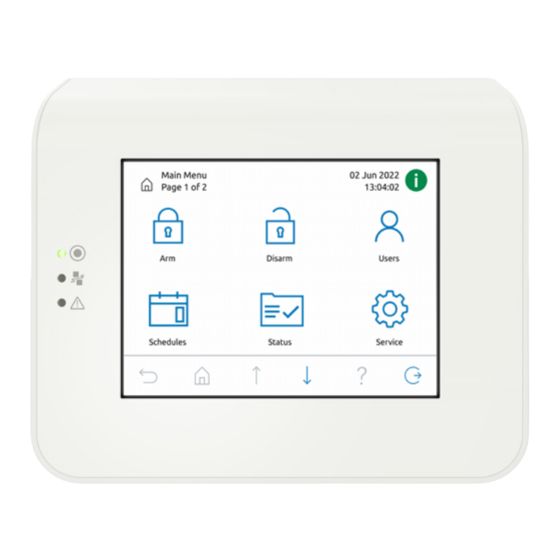

Page 6 This manual describes how to operate the MAP keypad. Introduction The MAP keypad is an input device for the MAP 5000 system. Each keypad has a vibrant-color 14 cm (5.7 inch) LCD screen. The durable touch screen provides access to system functions through an interface with intuitive icons. Users touch the images directly on the screen to arm, disarm, or select other menu options.
Page 7 To operate the LCD screen, tap the icons and buttons shown on the screen with moderate pressure. – To avoid damage of the LCD screen, do not use sharp objects during operation. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 8 This icon is used to view additional system information and to clear events, alarms or troubles. Flashing red: not yet cleared system events and alarms Flashing yellow: not yet cleared system troubles Green: no additional system information available 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 9 Shows the next page on screens with more than one page. Help Shows helpful information about the active screen. Exit Logs the user off and switches the display to the idle screen. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 10 A user is logged off automatically if there has been no activity for two minutes. This value can be configured by the installer via RPS for MAP. For more information, contact your installer or system administrator. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 11 Start the motion detector test for the area in which the motion detector is located. Refer to Motion detector test, page 27 . Remove the object masking the motion detector. Trigger the detector using motion. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 12 Arming areas Notice! If smartkey or blocklock controls are installed for your system, areas can only be armed with these controls. A keypad cannot be used to arm areas. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 13 Arm Selected Areas. To access the Blocking Time menu, select the area and press For more information on blocking time, refer to Blocking time, page 30 . Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 14 The area and their current arming status are displayed. An area is armed and can be disarmed if the icon is displayed. To disarm an area, press the desired option or area. Press ð The area is disarmed. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 15 To enter the last name of the user, press Enter User Last Name. Use the alphanumeric keypad to enter the name. Press Enter. To confirm the first and last name, press The user options are displayed. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 16 Choose between Installer Profile, Owner/Facility Manager, Standard User, Super User and other Access Profile created via RPS for MAP. icon indicates the selection. To confirm the user profile, press 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 17 The selected user is deleted. ð 5.5.3 Editing users How to open the Users menu To open the Users menu, press ð The Users menu with four menu options is displayed. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 18 To verify, use the alphanumeric keypad to enter the 8-character ID found on the smartkey token in the Verify Code field. To confirm the ID, press The smartkey options are displayed. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 19 16. To confirm the keypad user options, press The user options are displayed. How to finish editing a user After all keypad user options are entered, press to update the user. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 20 To edit the time settings of the schedule, use the Hours and Minutes buttons and the and the icons. To confirm, press The schedule is changed. ð System status The Status menu provides access to system status functions. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 21 Choose between Select Area to view the devices of a specific area and All Devices to view the devices of all areas. In case of Select Area, select the area for which you want to view the devices. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 22 Choose this option to view and print the event history. – Option 2: View Version Information Choose this option to view the firmware and the hardware version of the control panel and the firmware version of the keypad. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 23 For information on how to view events from more than 24 hours ago, refer to How to filter the history by date range, page 24 . Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 24 Choose between ID and Event Type. The event history options are displayed with the selected sorting option in light grey. To view the history sorted by the selected sorting type, press View History. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 25 How to set time and date Press Set Time and Date. To set the time and date, use the Date, Hours and Minutes buttons and the icons. To confirm, press Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 26 All areas of the system are disarmed. Press Start New Walk Test. Press All Points. A message is displayed, stating that event communication will be disabled during the walk test. ð The walk test starts. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 27 The motion detector test function enables the LED on motion detectors to flash, whenever movement is detected. How to open the Service menu To open the Service menu, press ð The Service menu with twelve menu options is displayed. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 28 A list with all outputs is displayed. You can also search for outputs by name or filter outputs with the status "On" or "Off". To change the status of an output, press the button of the output. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 29 How to enable or disable the chime mode Press Chime Mode On/Off. The Chime Mode On/Off button is displayed. To enable or disable the chime mode, press the Chime Mode On/Off button. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 30 Day, Month and Year buttons and the and the icons. To confirm, press ð The blocking time intervals for which disarming is allowed are displayed for the selected date. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 31 The event memory provides access to device event functions. For information on how to view system events, such as tampers or faults, refer to Event history, page 23 . Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 32 The Authorize RPS Access button turns light grey and the remote access is enabled. ð How to disable the remote access Press Cancel RPS Authorization. ð The Cancel RPS Authorization button turns light grey and the remote access is disabled. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 33 MAP touch keypad 5000 Troubleshooting | en Troubleshooting Please contact your installer in case of problems or any unexpected behavior of the system. Bosch Security Systems B.V. 2023-03 | V01 | F.01U.408.135 User manual...
Page 34 Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment. 2023-03 | V01 | F.01U.408.135 Bosch Security Systems B.V. User manual...
Page 36 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2023 Building solutions for a better life. 202303140503...
