MAP touch keypad 5000
3

System overview

The MAP keypad consists of a housing with three LEDs and an LCD screen.
3.1

Housing with LEDs

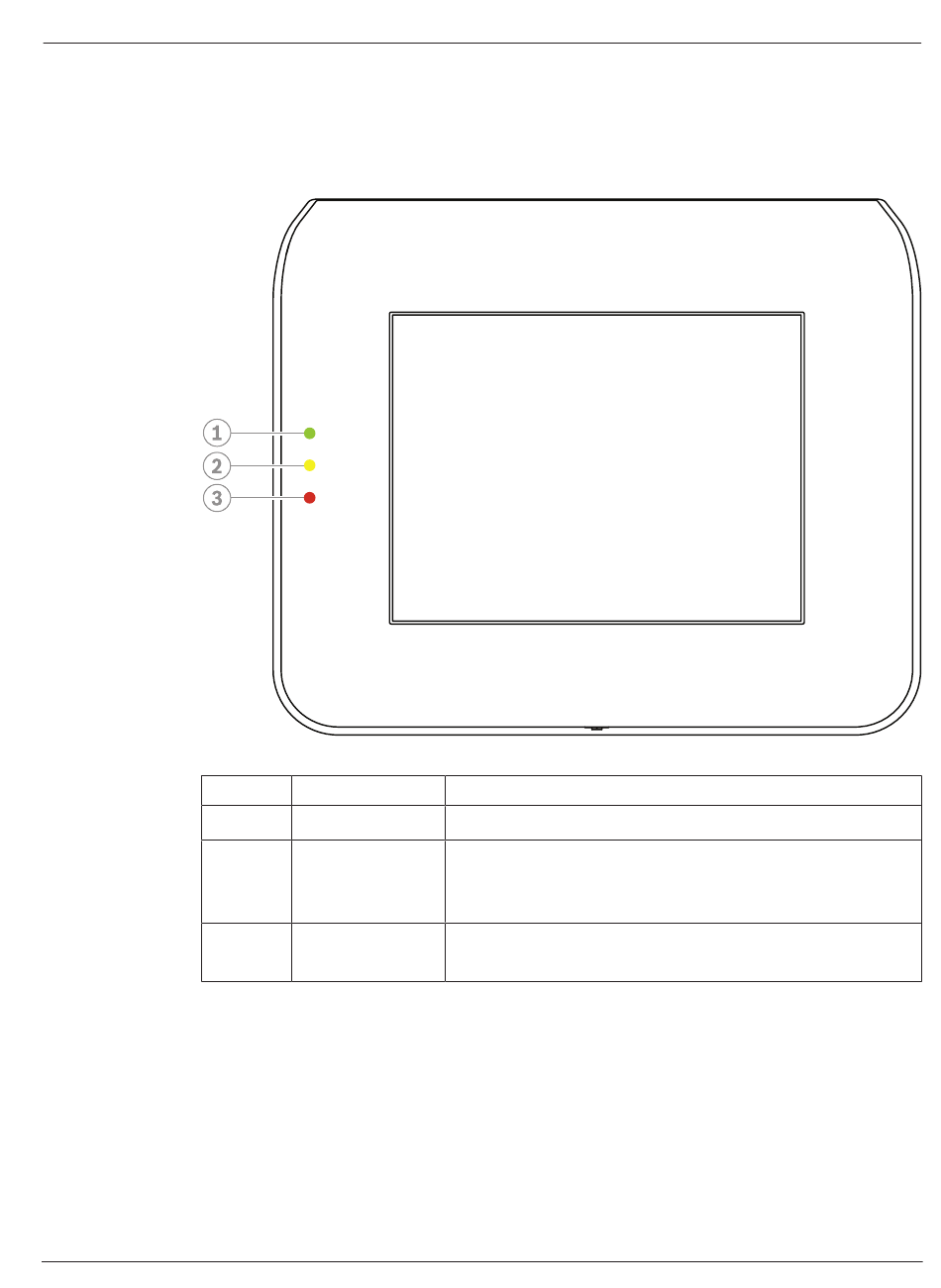

Three light-emitting diodes (LEDs) are located on the left side of the MAP keypad housing:
Callout
1
2
3
3.2

LCD screen

How to operate the LCD screen
–
–
Bosch Security Systems B.V.
Component
Green LED
Yellow LED
Red LED
To operate the LCD screen, tap the icons and buttons shown on the screen with
moderate pressure.
To avoid damage of the LCD screen, do not use sharp objects during operation.
Description
Indicates that the keypad is in normal condition.
Indicates that there is a trouble condition, that devices are
covered, or that devices of the system are bypassed or
disabled.
The default behavior indicates that an alarm condition exists
in the security system.
